RCS11 1:1 Redundancy Switch User Interfaces
MN-RCS11 – Revision 9 3–6
3.3.1.4 G.703 – HSSI Interface with G.703 or ASI E3/T3/DS3/STS1

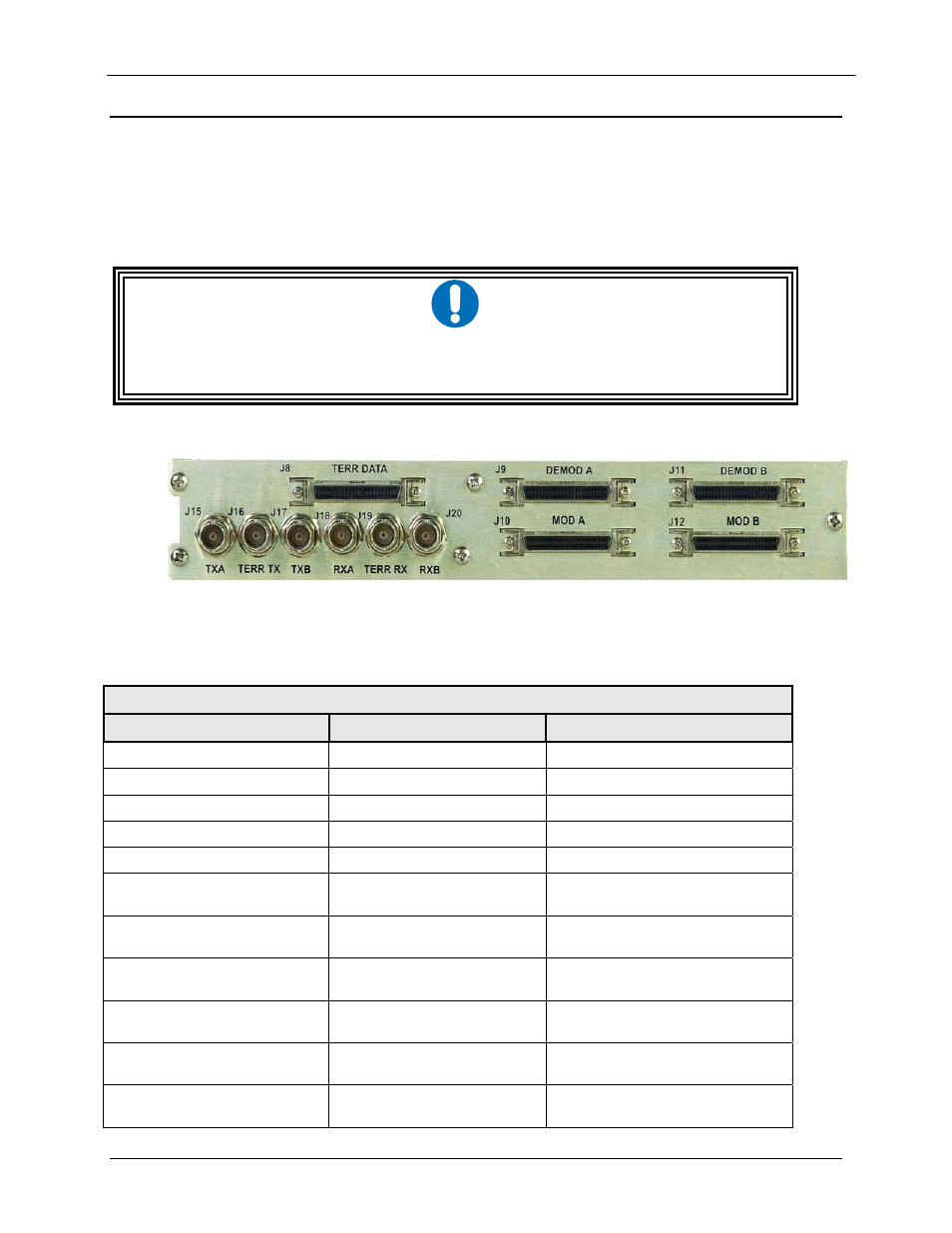

Figure 3-4 illustrates the RCS11 HSSI Interface and optional G.703 or ASI data interface. The
RCS11 must be configured from the factory to support ASI or G703. The G703 rates supported
are E3, T3 and STS. Table 3-4 describes the connection hardware required. (For G.703 with IDR
ESC support Refer to 3.3.1.6)
IMPORTANT
G.703 Interface can be configured from the factory to support ASI.
(Asynchronous Serial Interface)
Figure 3-4. RCS11 HSSI / G.703 Interface
Table 3-4. Connection Hardware
LOCATION CONNECTOR DESCRIPTION
J8 TERR DATA HSSI Data Input / Output
J9 DEMOD A HSSI Demodulator Primary
J10 MOD A HSSI Modulator Primary
J11 DEMOD B HSSI Demodulator Back Up
J12 MOD B HSSI Modulator Back Up
J15 TX A BNC G.703 T3/E3 Optional ASI
Primary
J16 TERR TX BNC G.703 T3/E3 Optional ASI
Data In
J17 TX B BNC G.703 T3/E3 Optional ASI
Back Up
J18 RX A BNC G.703 T3/E3 Optional ASI
Primary
J19 TERR RX BNC G.703 T3/E3 Optional ASI
Data Out
J20 RX B BNC G.703 T3/E3 Optional ASI
Back Up
