4.6.16 DMD20 (RS530) to RCS11 RS449/422 Serial Data Interface

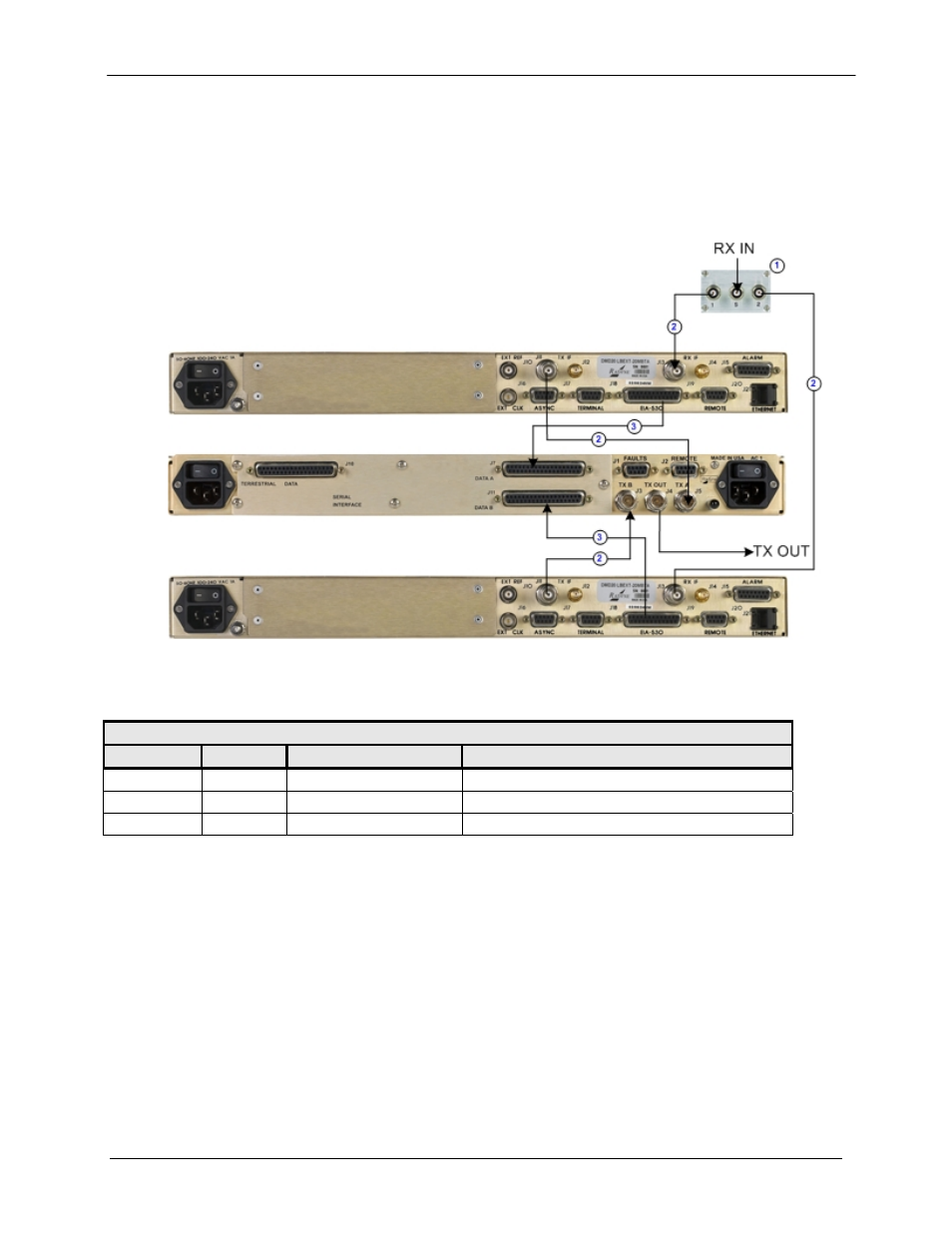

Figure 4-16 illustrates an RCS11 1:1 system with the RS449 Serial Interface connected to
DMD20’s using the EIA-530 connection. Table 4-16 describes the connection hardware required.
Figure 4-16. RCS11 with Serial Interface Connected to DMD20’s
Table 4-16. Connection Hardware
Item No. Quantity Part Number Description
1 1 RF/ZSC-2-175 70/140 IF Splitter
2 4 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
3 2 CA/5165-3 RS530 to RS449 Data Cable
