RCS11 1:1 Redundancy Switch Installation
MN-RCS11 – Revision 9 4–14
4.6.11 DM240XR Ethernet

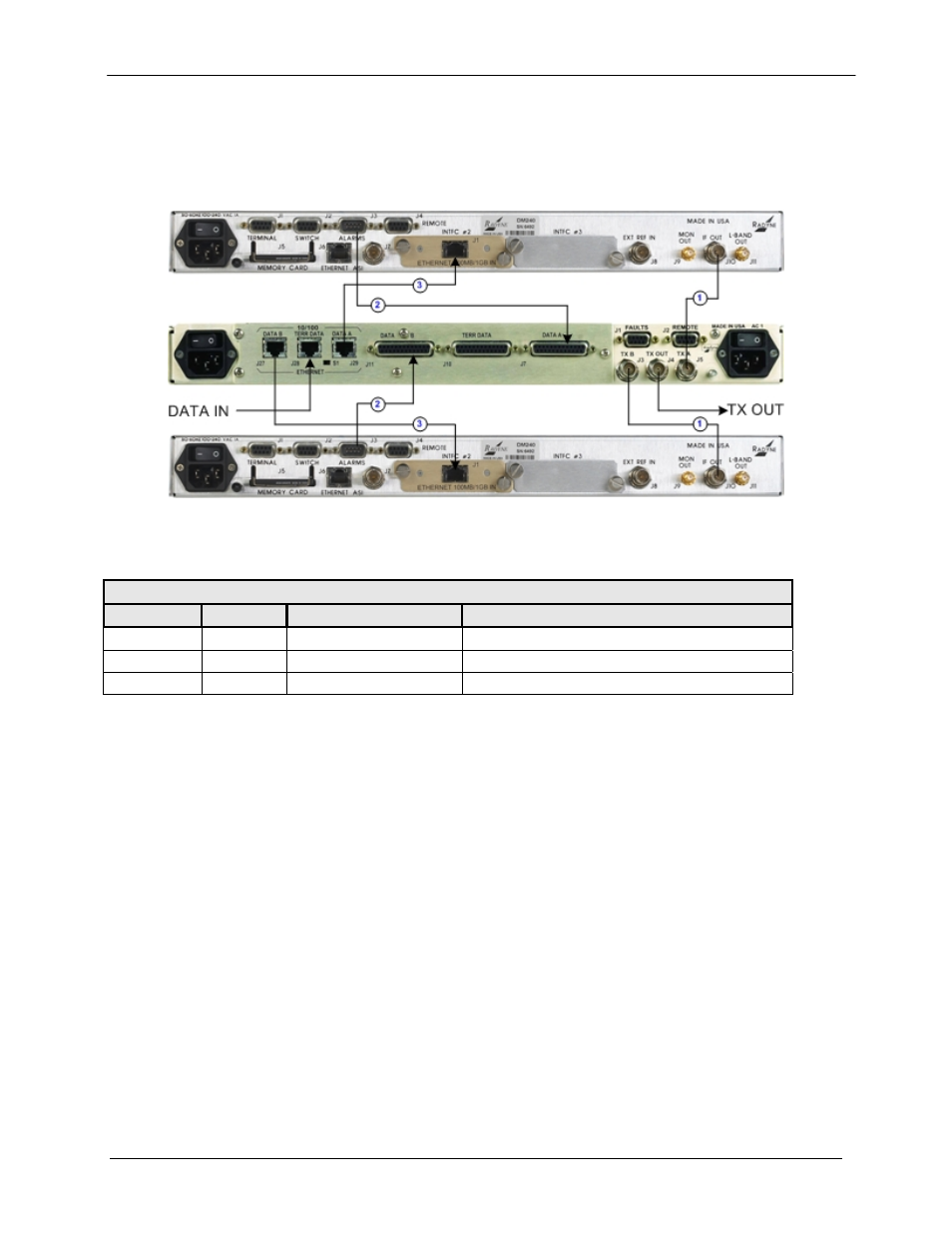

Figure 4-11 illustrates a 1:1 system using a RCS11 with the Ethernet Interface connected to
DM240XR Demodulators. Table 4-11 describes the connection hardware required.
Figure 4-11. RCS11 with Ethernet Interface Connected to DM240XR Modulators
Table 4-11. Connection Hardware
Item No. Quantity Part Number Discription
1 2 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
2 2 CA/5786 Alarm Fault Cable
3 2 CA/CAT5E-5FT Ethernet Cable
