RCS11 1:1 Redundancy Switch Installation
MN-RCS11 – Revision 9 4–13
4.6.10 DD240XR Ethernet
Figure 4-10 illustrates a 1:1 system using a RCS11 with the Ethernet Interface connected to
DD240XR Demodulators. Table 4-10 describes the connection hardware required.
RX IN
1
2
3
2
3
4
4
DATA OUT

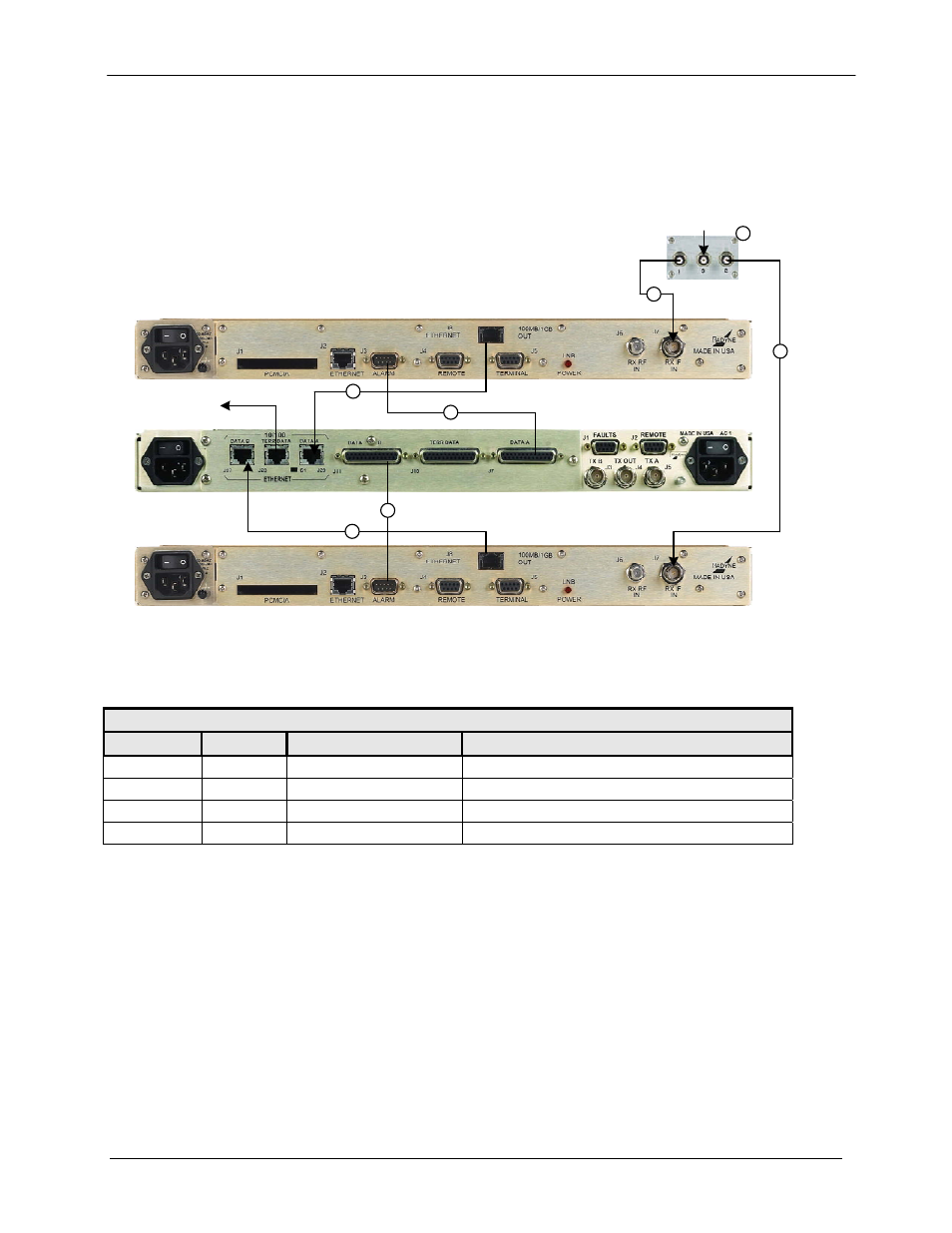

Figure 4-10. RCS11 with Ethernet Interface Connected to DD240XR Demodulators
Table 4-10. Connection Hardware
Item No. Quantity Part Number Discription
1 1 RF/ZSC-2-175 70/140 IF Splitter
2 2 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
3 2 CA/CAT5E-5FT Ethernet Cable
4 2 CA/5787 Alarm Fault Cable
