RCS11 1:1 Redundancy Switch Installation
MN-RCS11 – Revision 9 4–17
4.6.14 DD240XR HSSI

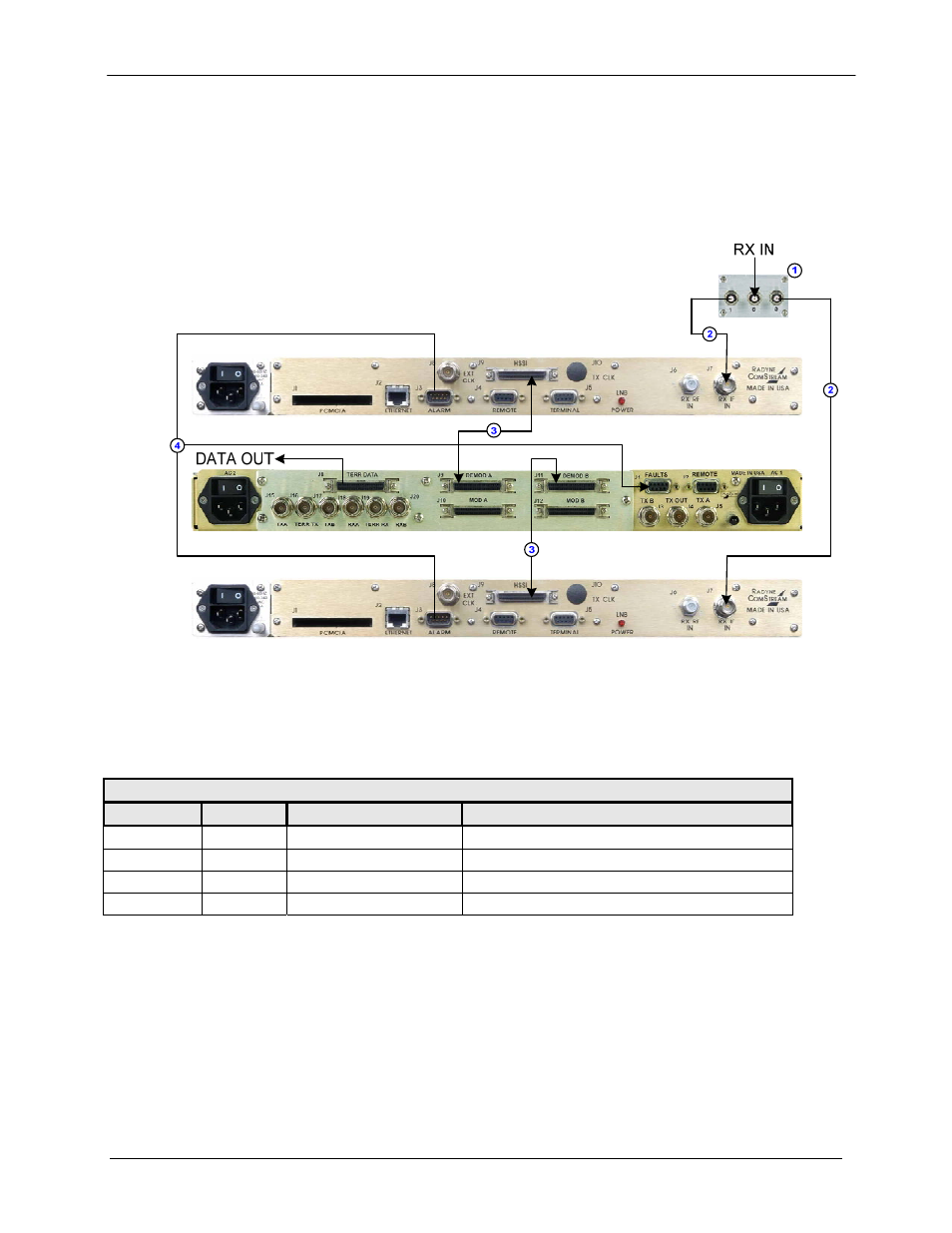

Figure 4-14 illustrates a 1:1 system using a RCS11 with the HSSI / ASI Interface connected to
DD240XR Demodulators with 70/140 MHz IF and HSSI Data Interfaces. Table 4-14 describes the
connection hardware required.
Figure 4-14. RCS11 with HSSI / ASI Interface connected to DD240XR Demodulators with
HSSI Interface
Table 4-14. Connection Hardware
Item No. Quantity Part Number Discription
1 1 RF/ZSC-2-175 70/140 IF Splitter
2 2 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
3 2 CA/3841-2 2” HSSI Data Cable
4 1 CA/3865 Alarm Fault Cable
