RCS11 1:1 Redundancy Switch

Installation

MN-RCS11 – Revision 9

4–16

4.6.13 DM240XR

DVB

Parallel

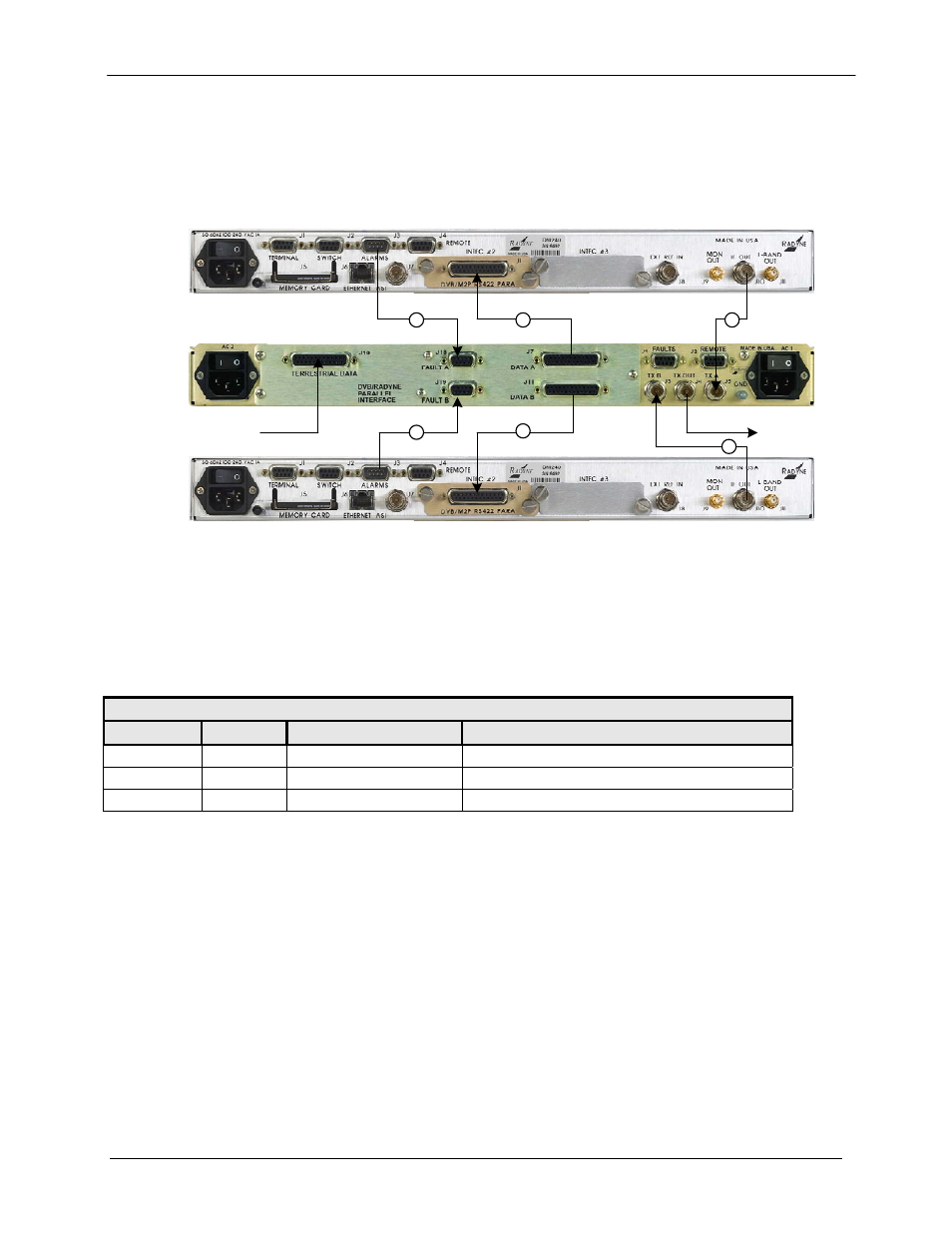

Figure 4-13 illustrates a 1:1 system using a RCS11 with a DVB Parallel Interface connected to
DM240XR Modulators with DVB / M2P Parallel PIIC Cards. Table 4-13 describes the connection
hardware required.

DATA IN

TX OUT

1

1

2

2

3

3

Figure 4-13. RCS11 with Parallel Interface Connected to DM240XR Modulators

With DVB / Parallel PIIC Cards

Table 4-13. Connection Hardware

Item No.

Quantity

Part Number

Discription

1

2

CA/3598-36

3’ BNC to BNC 75 Ohm Coaxial Cable

2

2

CA/3473-4

4” Parallel Data Cable

3

2

CA/3677-1

Alarm Fault Cable
