RCS11 1:1 Redundancy Switch Installation
MN-RCS11 – Revision 9 4–9
4.6.6 DMD20/DMD50/DMD2050 ETHERNET

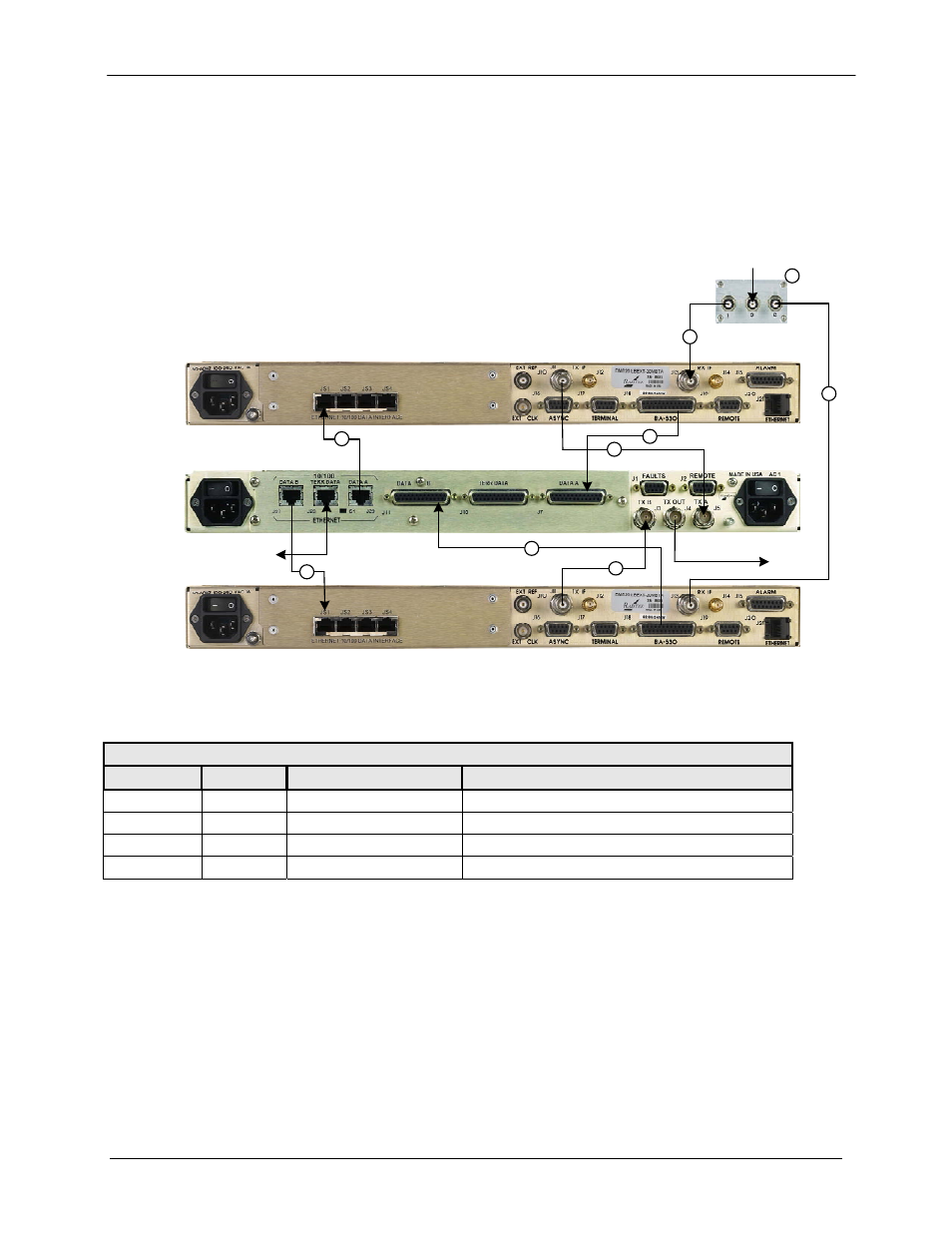

Figure 4-6 illustrates a 1:1 system using a RCS11 with the Ethernet Interface connected to a
DMD20, DMD50 or DMD2050 Modem with 70/140 MHz and Ethernet Data Interfaces. Table 4-6
describes the connection hardware required.
RX IN
DATA IN / OUT
TX OUT
1
2
2
2
2
3
3
4
4
Figure 4-6. RCS11 with Ethernet Interface Connected to DMD20
Modems with Ethernet Interfaces
Table 4-6. Connection Hardware
Item No. Quantity Part Number Discription
1 1 RF/ZSC-2-175 70/140 IF Splitter
2 4 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
3 2 CA/CAT5E-5FT Cat 5
4 2 CA/5211-3 Data/Fault
