RCS11 1:1 Redundancy Switch User Interfaces
MN-RCS11 – Revision 9 3–2
from Modem A or B
SELECT Demod A or
B (Pushbutton) -------------------- Allows the operator to
select a Demodulator: A
or B
Modulator Controls and Indicators
Online LED Indicates which
Modulator is online:
A or B LED illuminates green
for Online
Fault LED The RCS11 has
received a fault from
Modulator A or B LED illuminates Red for
Fault
SELECT Mod A or B
(Pushbutton) ---------------------- Allows the operator to
select a Modulator: A or
B
3.3 Rear Panel Interface
3.3.1 System Installation and Connections
3.3.1.1 RCS11 with Universal G.703 Interface
Figure 3-1 illustrates the RCS11 with the Universal G.703 Interface available with either AC or DC
power entry and 70/140 or L-Band Intermediate Frequency. Table 3-1 describes the connection
hardware required.

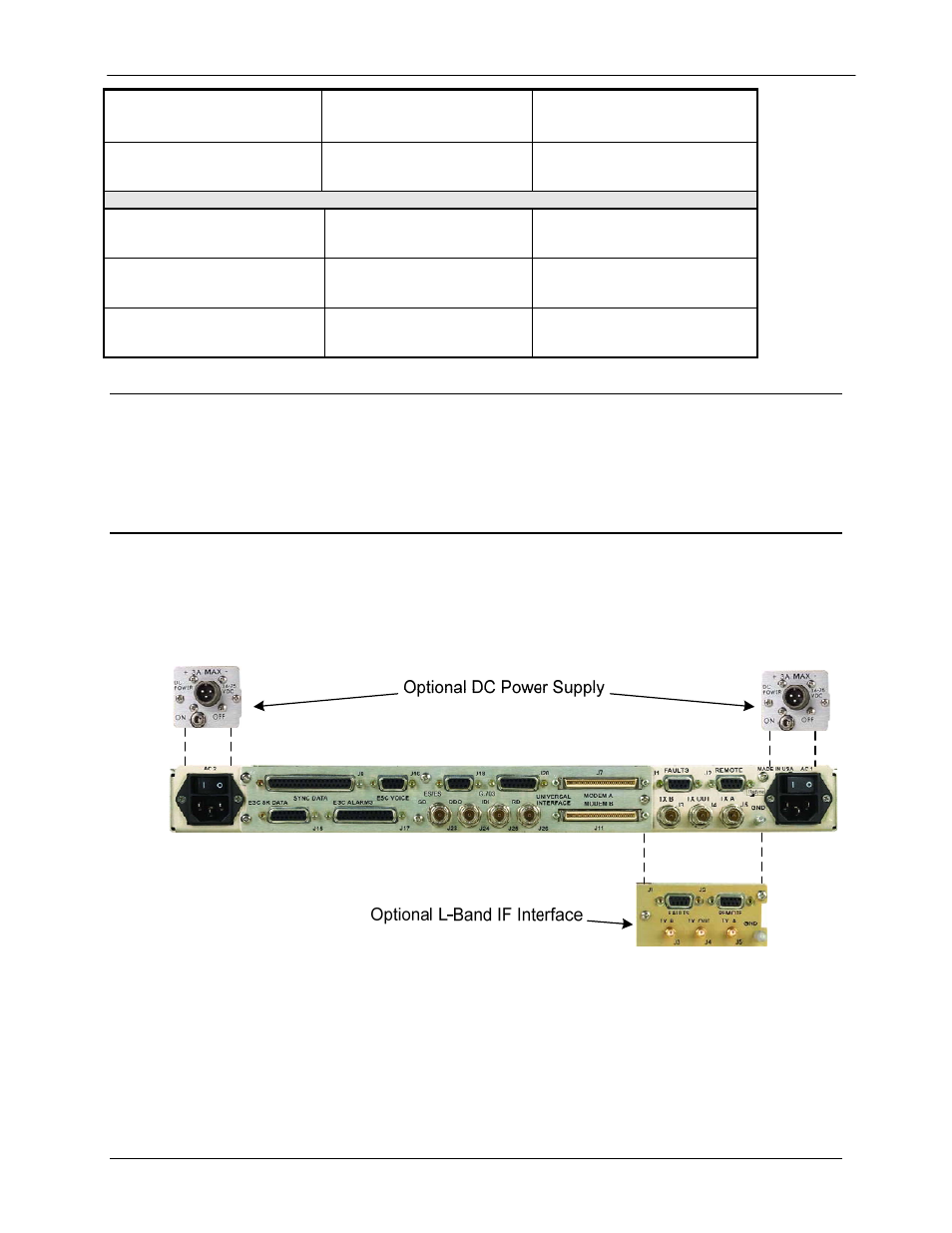

Figure 3-1. RCS11 with the Universal G.703 Interface
