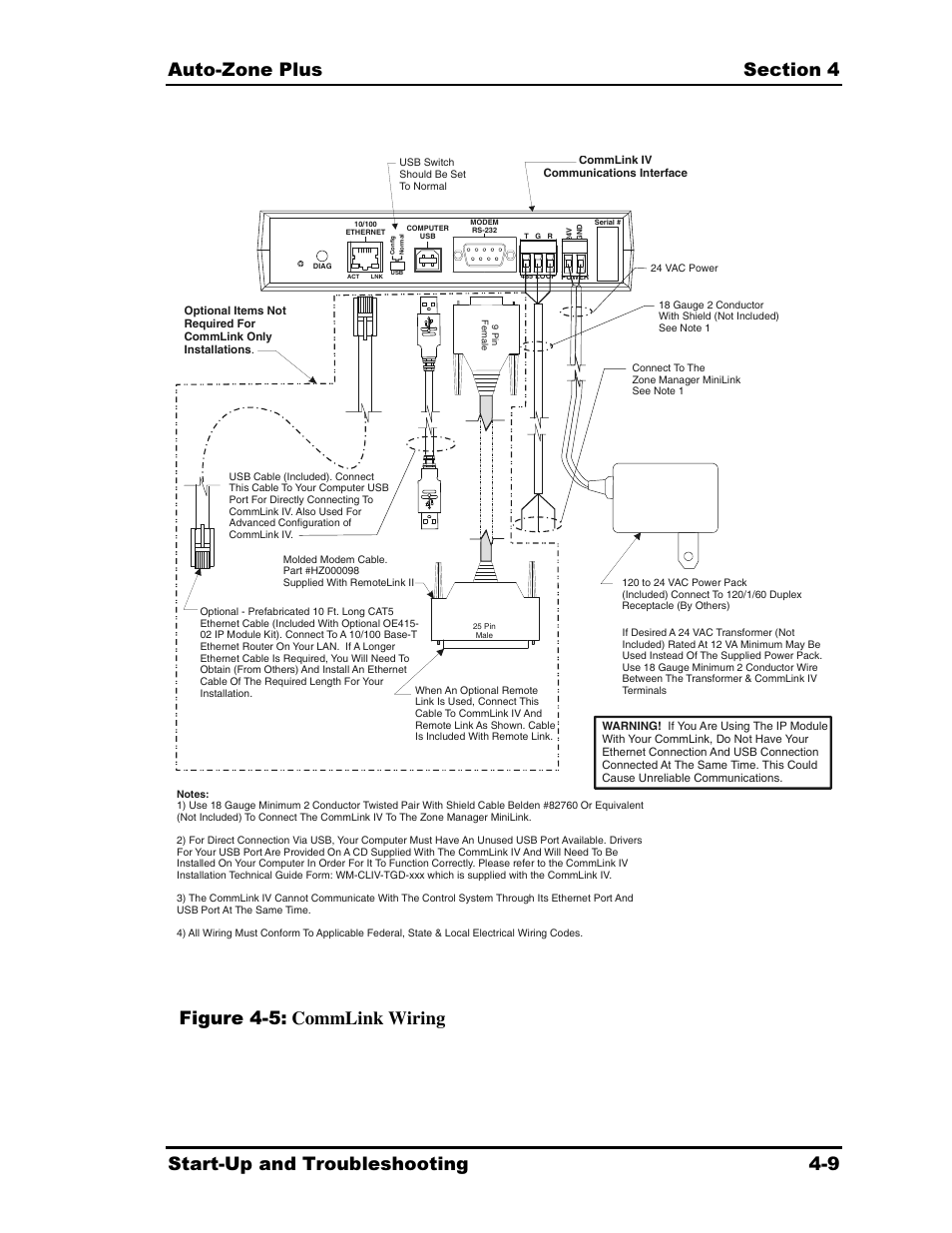

Figure 4-5: commlink wiring – Auto-Zone Control Systems Auto-Zone Plus Systems Installation & Operation (Version 03A) User Manual
Page 159
Text mode
Original mode
Figure 4-5: commlink wiring | Auto-Zone Control Systems Auto-Zone Plus Systems Installation & Operation (Version 03A) User Manual | Page 159 / 210
