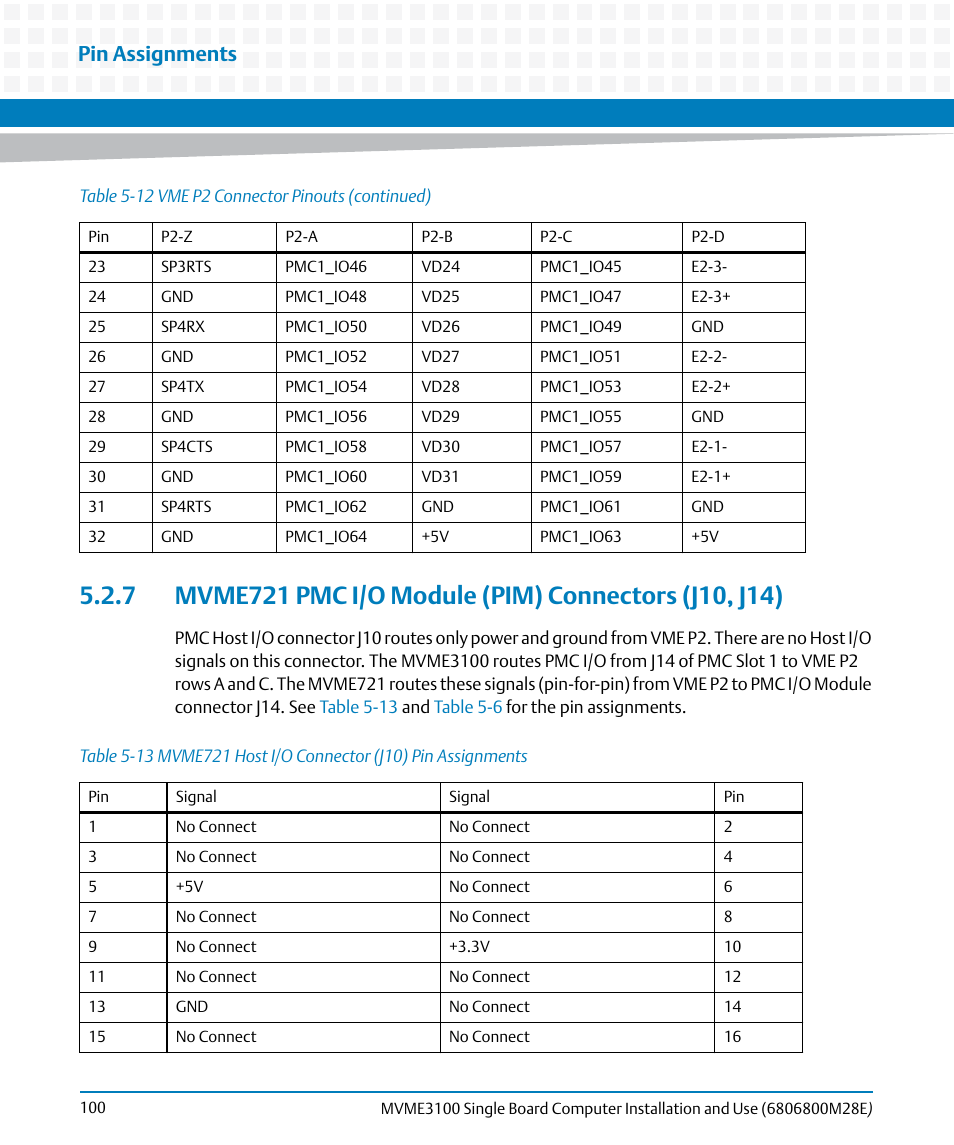

Table 5-13, Mvme721 host i/o connector (j10) pin assignments, Mvme721 pmc i/o module (pim) connectors (j10, j14) – Artesyn MVME3100 Single Board Computer Installation and Use (June 2014) User Manual
Page 100: Pin assignments
