Using the dtw_timing_analysis.tcl Script

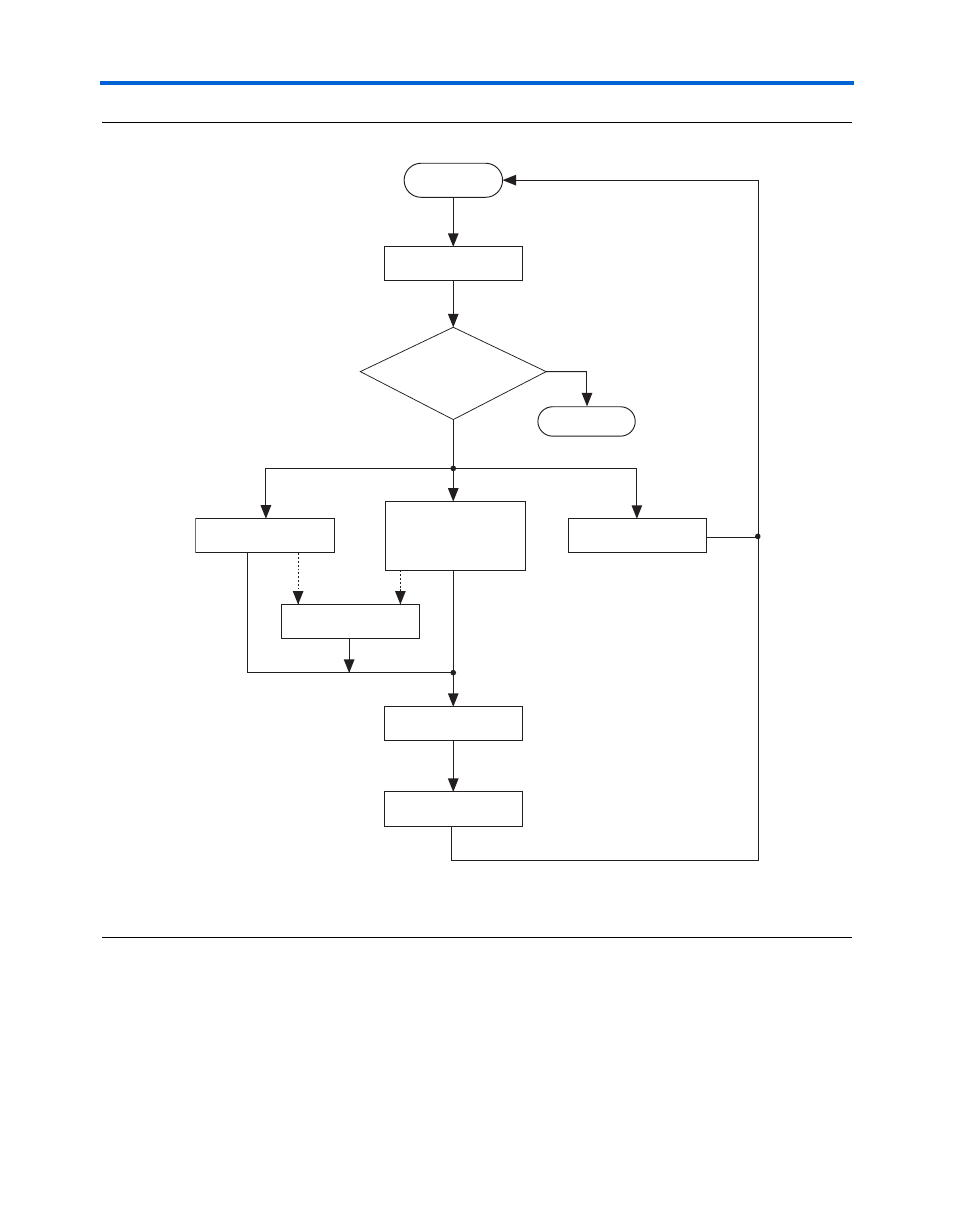

Figure 3–6. Timing Closure Process
Note to Figure 3–6 :
(1) Depending on your design, you may need to change the RTL even after changing the clock cycle and phase shift of
the data path.
No
Compile Design
Run dtw_timing_analysis.tcl
Is the Memory Interface
Timing Met?
Change RTL (1)
Change Phase Shift in
altpll MegaWizard
Update Clock Cycle
and/or Phase Shift
in the Legacy Controller
Megawizard
Update DTW-Only
Settings
Perform Analysis &
Synthesis
Re-Import Settings to DTW
End
Yes
