16

ControlLogix

Analog HART Modules

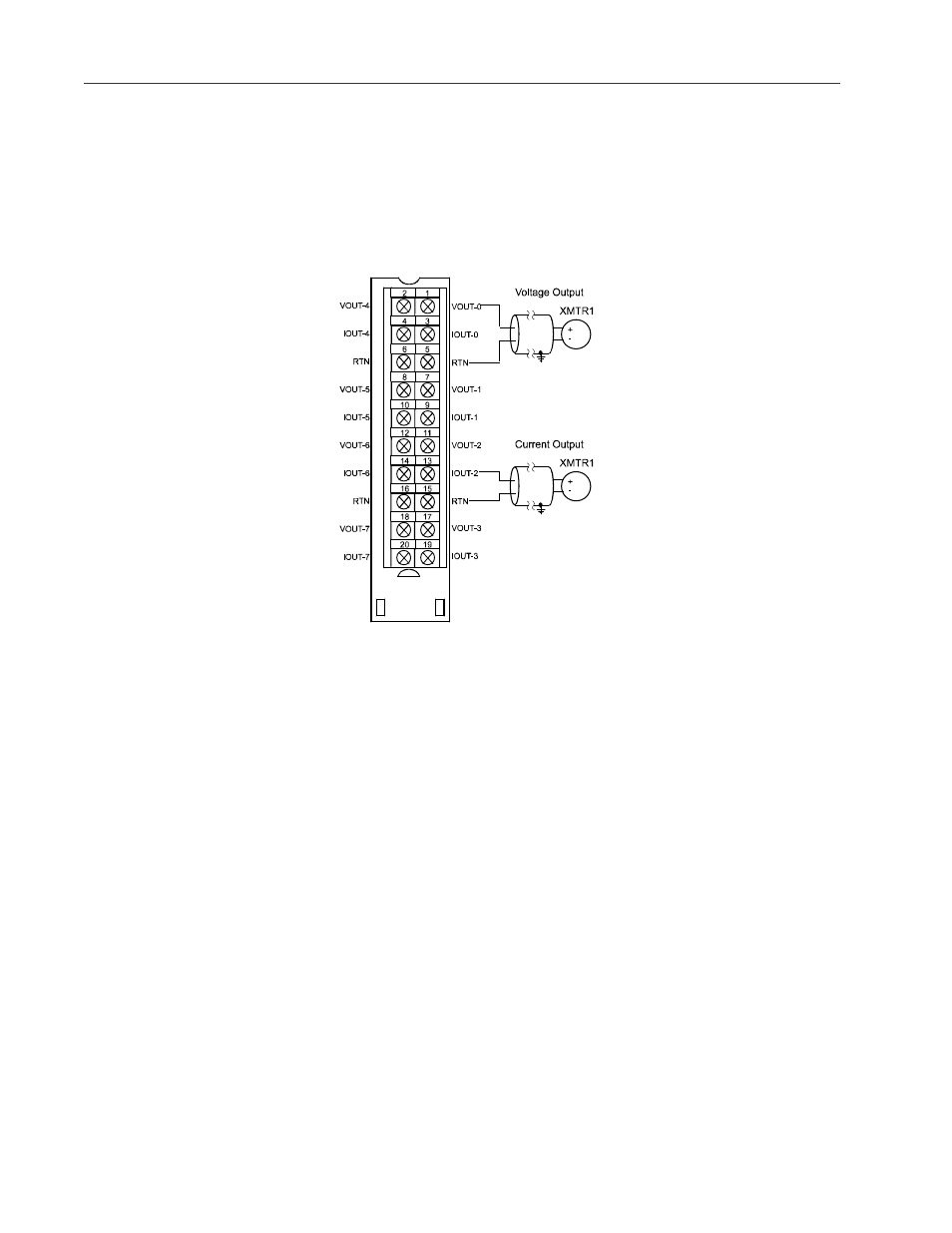

Wiring Outputs to the
OF8H Module

The OF8H module supports voltage and current outputs.

Voltage Outputs - Voltage outputs use the terminal block pins labelled
VOUT-# and RTN

Current Outputs - Current outputs use the terminal block pins labelled
IOUT-# and RTN

Note: HART communication is only active with current outputs.
