Chapter 2

Product Overview

LittleBoard 735

Reference Manual

Specifications

Physical Specifications

Table 2-4

lists the physical dimensions of the board.

Mechanical Specifications

Figure 2-8

shows the top side view of the LittleBoard 735 with mechanical mounting dimensions.

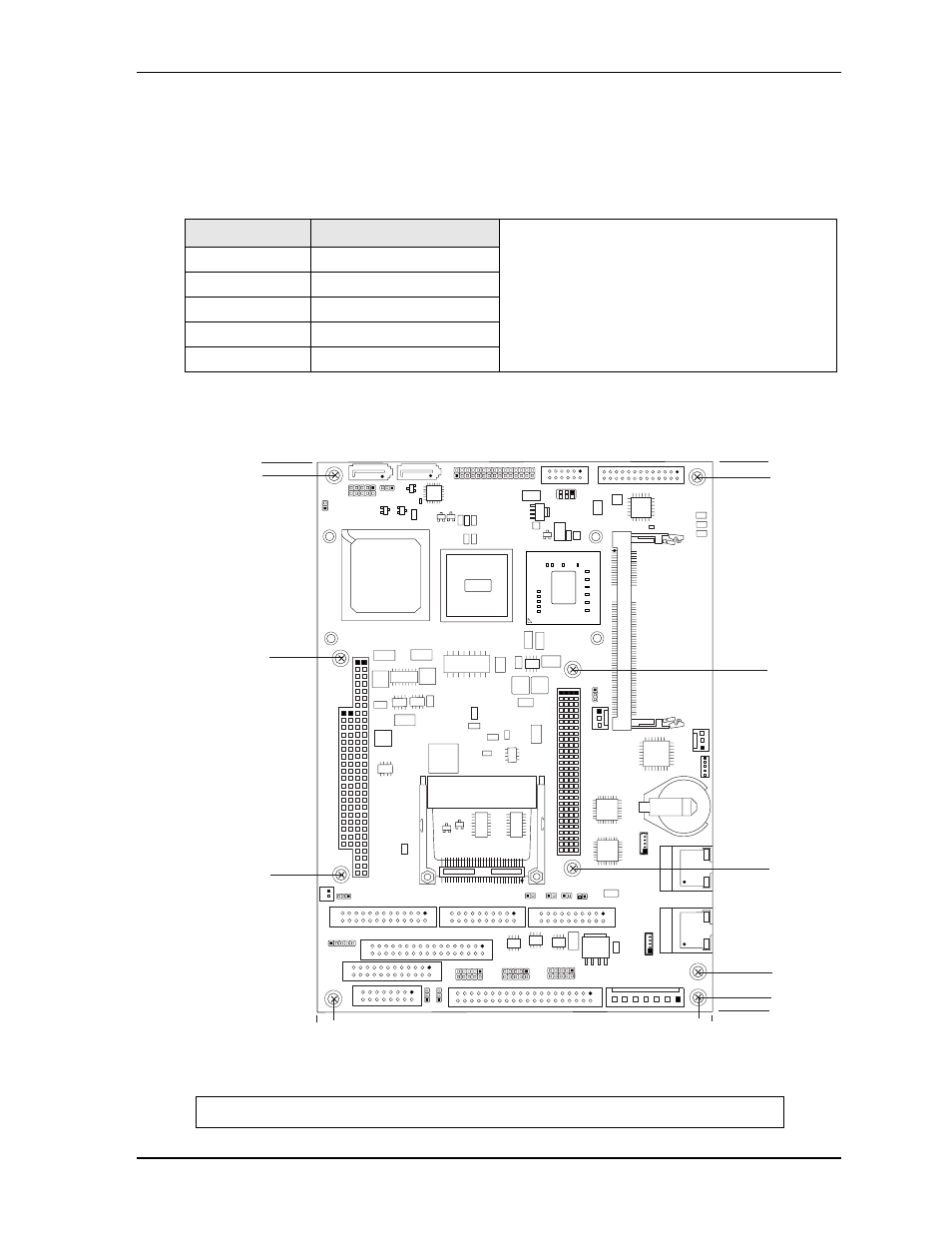

Figure 2-8. LittleBoard 735 Dimensions

Table 2-4. Weight and Footprint Dimensions

Item

Dimension

NOTE

Overall height is measured from the
upper board surface to the highest
permanent component (J10, RJ45
connector) on the upper board surface.
This measurement does not include the
various heatsinks on the board. The
heatsinks increase this dimension. See

Table 2-7

Weight

0.280kg. (0.60lbs.)

Height (overall)

16.26mm (0.64")

Width

146mm (5.75")

Length

203mm (8.0")

Thickness

2.36mm (0.093")

NOTE

All dimensions are given in inches.

LB735_Dimen_T

op_d

7.22

0.20

7.80

5.80

5.70

2.80

2.65

7.60

5.55

5.35

0.20
