Figure 2-3, Component locations (top side), Description of each – ADLINK LittleBoard 735 User Manual
Page 16: Figures 2-3
Chapter 2
Product Overview
10
Reference Manual
LittleBoard 735

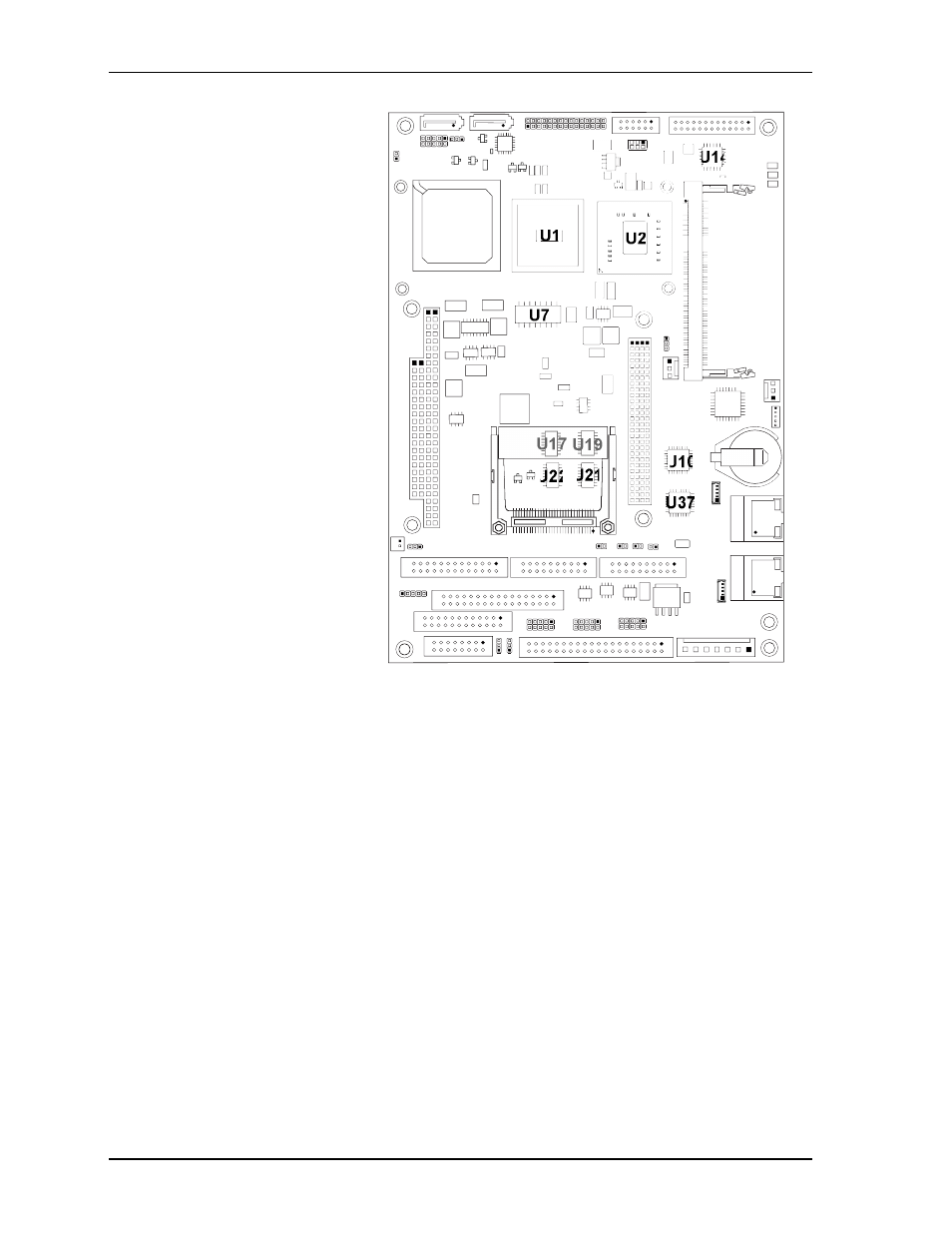

Figure 2-3. Component Locations (Top Side)
LB735_Comp_T
op_d
U4
U13
U14
U10
U37
U22 U21
Key:
U1
- CPU
U2
- Northbridge Memory Hub
U4
- Southbridge I/O Hub
U10 - GLAN1 Ethernet Controller
U13 - PCI-to-ISA Bridge
U14 - Audio CODEC
U17 - RS232 Transceiver - COM1/COM2
U19 - RS485/422 Transceiver - COM1/COM2
U21 - RS232 Transceiver - COM3/COM4
U22 - RS485/422 Transceiver - COM3/COM4
U37 - GLAN2 Ethernet Controller
