ENGLISH

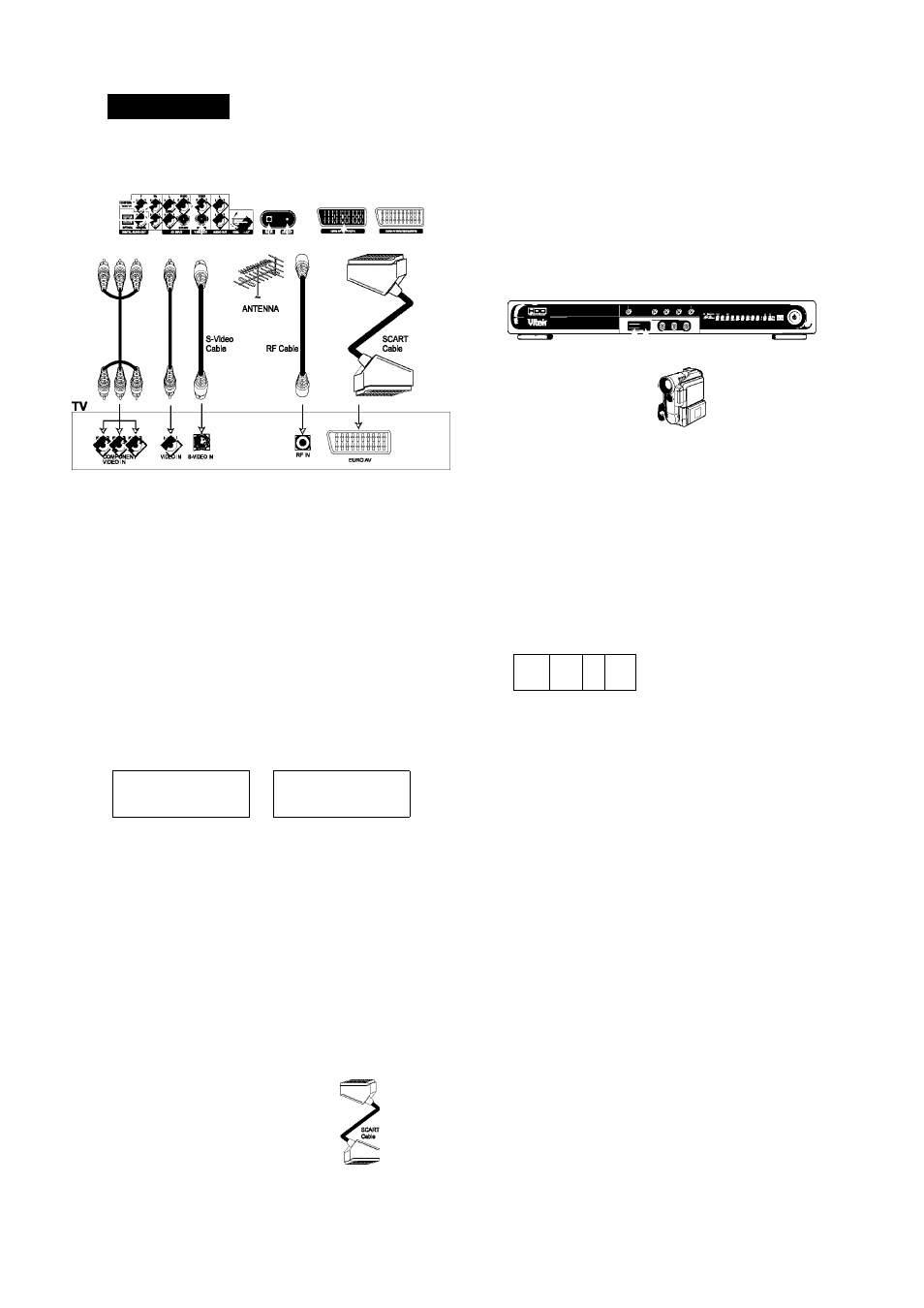

Y/Pb/Pr, Y/Cb/Cr and may be green, blue, red. The component video Audio Input
provides the best picture. Connect the Audio Input to the Audio Output of AV system.
Set “Video Output” to “YCrCb On” from VIDEO SETUP menu.
DVD-Recorder video input
Connect the Composite Video or S-Video Input to the Composite Video
or S-Video Output of AV system. Or connect the Euro AV IN/OUT to the
Euro AV OUT of AV system.
Note:
• RE OUT, is labeled TO TV, is signal pass-thru only.
• S-Video cable is not supplied
Connection forAudio Output Terminals
You can enjoy the Dolby surround sound by connecting the digital audio
output to the audio amplifier.
DVD-Recorder
AUDIO
AMPLIFIER
TV
AUIIOIN
Connection for DV IN and USB IN
Using the DVIN, itis possible to read digitallythe contents of DV tapes.
USB Memo7 Digital Camcorder
DVInput
Connect the DVINto the DV in/out jack on your DV camcorder using a
DV cable (not supplied).
USB Input
Insert the USB memory in the USB jack of this recorder.
Connection for HDMI Output
HDMI (High Definition Multimedia Interface) transfersthe digital video
and audio from your recorder toyour TV.
Connectthe HDMI Outputto the HDMI Input ofTV with a single HDMI
DVD-Recorder
■ ® l®
fi
ft # ®
t f
Audio Output
Use audio outputs for connection with your TV.
Digital Audio Output
Use digital audio outputs for connection with Dolby Digital or DTS de­
coder. Erom the Digital Audio Output menu, select “PCM” or “Bitstream”
according to your decoder.
Note
An optical cable and coaxial cable are not supplied.
Connection forA/V Input Terminals
You can record programs from AV system such as VCR, Satellite receiver
or Decoder box.
DVD-Recorder
VCR or Satellite
receiver or
Decoder box
S-VIDEO OUT VI
Turning on and off
1. Turn on your TV and set the video input to this recorder.
2. Press STANDBY/ON button on the remote controller or the front
panel to turn on. You can see the on-screen information. If you want
to turn off, press STANDBY/ON button again on the remote controller
orthe front panel.
Selecting the HDD or DVD for playbackand recording
1. Ifyou wantto switch tothe HDD mode, press HDD/DUB button on
the remote control.
2. If you want to switch to the DVD mode, press DVD button on the
remote control.
Displaying the disc information on screen (OSD)
You can display the playback status on TV screen as follows; Title, Chap-
ternumber. Playing time.
1. Press DISPLAYbutton during playback. Title, Chapter number.
Playing time. Audio language and Subtitle appear on TV screen.
2. Press DISPLAYbutton once more. You can see the playback status in
detail.
