ENGLISH

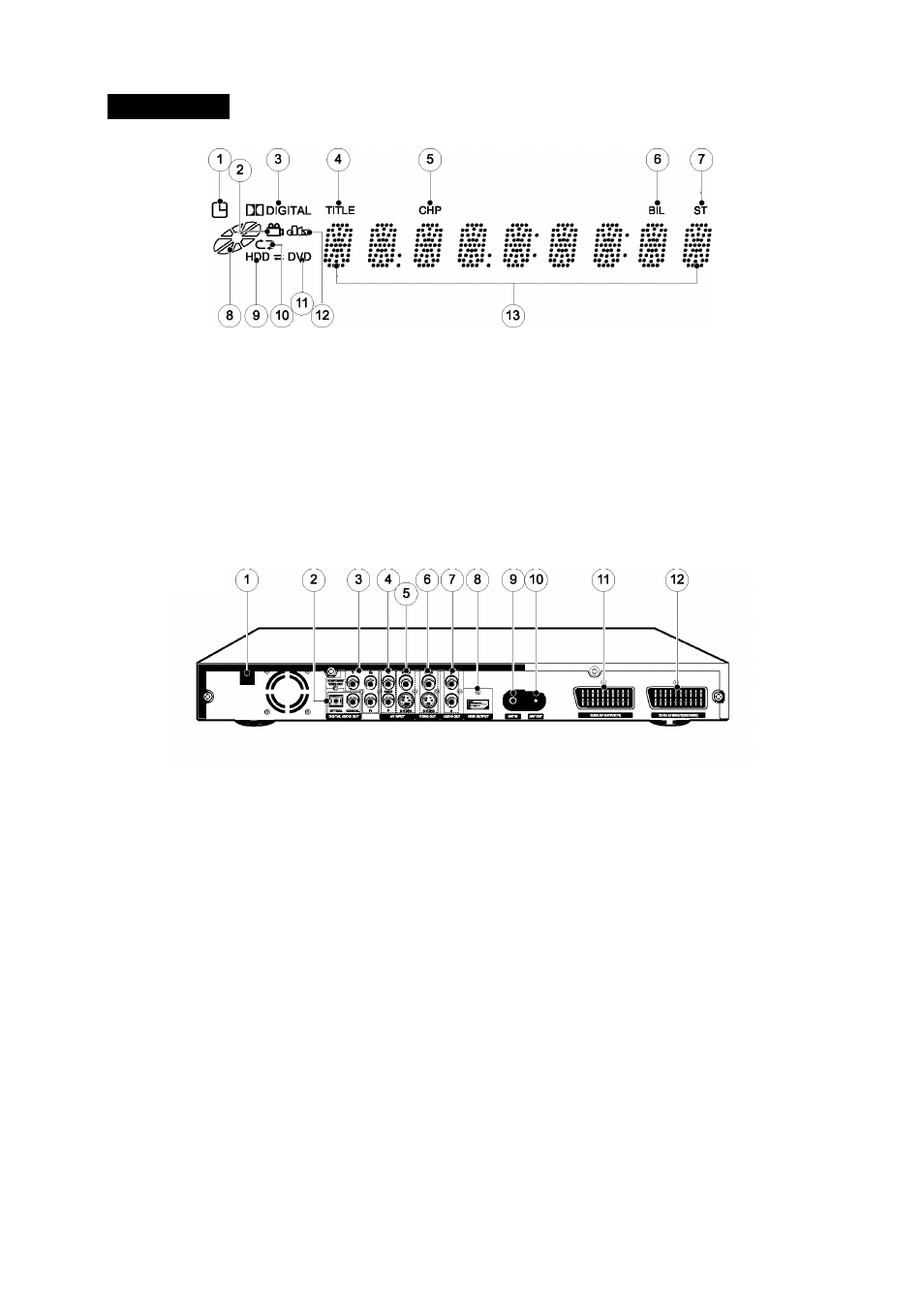

Display
1. TIMER Recording Indicator. Lights when timer recording is on.
2. Angle view. Indicates the current disc being played is viewed as multi angle. (This function only works for discs having scenes recorded at differ­
ent angles.)
3. Dolby Digital Indicator. Indicates Dolby Digital 5.1 playback.
4. Title indicator. Title numberfor DVD playback.
5. Chapter indicator. Chapter number for DVD playback.
6. BILINGUAL Indicator. Illuminateswhen receiving a bilingual broadcast.
7. STEREO Indicator. Illuminates when receiving a stereo broadcast.
8. Rotation. Rotates when the disc is spinning.
9. HDD Indicator (Hard disc). Indicatesthe HDD mode.
10. REPEAT Indicator. Illuminates when the current play mode is under repeat title, chapter, track, A-B respectively
11. DVD Indicator. Indicatesthe DVD mode.
12. DTS Indicator. Illuminates when the format of digital audio output is DTS.
13. Operating information. Indicatestitle, ChapterandTracknumberandTime, TVchannel.
Rear panel
1. Power cord. Connect to the wall outlet.
2. Digital audio output. Connect COAXIAL OUT to Digital Audio Input (coaxial type) of Audio AMP.
Orconnect OPTICALOUT to Digital Audio Input (optical type) of AudioAMP.
3. COMPONENT VIDEO OUT. Connect to Component Video Inputs of TV.
4. Audio IN jack. Connect to Audio Output of VCR or Set-Top Box.
5. Video IN. ConnectVIDEO to Composite Video Output ofVCR orSet-Top Box. Or connect S-VIDEO to S-Video Output ofVCR or Set-Top Box.
6. Video OUT. Connect VIDEO to Composite Video Input of TV or monitor. Or connect S-VIDEO to S-Video Input of TV or monitor. S-Video provides
better picture qualitythan composite video.
7. Audio OUT. Connect to Audio Input of TV.
8. HDMI OUT (576P). HDMI (High Definition Multimedia Interface) transfersthe digital video and audio from your DVD RecordertoyourTV. Sim­
ply connectyour DVD Recorderto yourTVwith a single HDMI cable forthe best picture and sound.
9. ANT IN. Connectto external antenna.
10. ANT OUT. Connect to Antenna Input of TV.
11. Euro AV OUT. Connect to Euro AV input of TV.
12. EuroAVIN/OUT. Connect to Euro AV in/out of AV equipment such as VCR, DVD player, etc.
Remote control
1. A-B
To repeat a certain section during playback.
2. Add/Clear
To remove the preset program on the timer recording list.
To add or delete the track No. on the program playback list of CD.
3. Angle
Toviewwith a differentframe angle.
4. Arrow(A^^^)
To select an item of menu.
5. Audio
To select the audio language or audio channel when playing a DVD disc.
You can also change the audio channel of the broadcast.
• Ifthe NICAM broadcast is bilingual, you can selectthe language.
• If the NICAM broadcast is stereo, you can switch between NICAM stereo and
NICAMSTEREO^MONO
Mono audio.
