Page 7
Chapter 1: Introduction

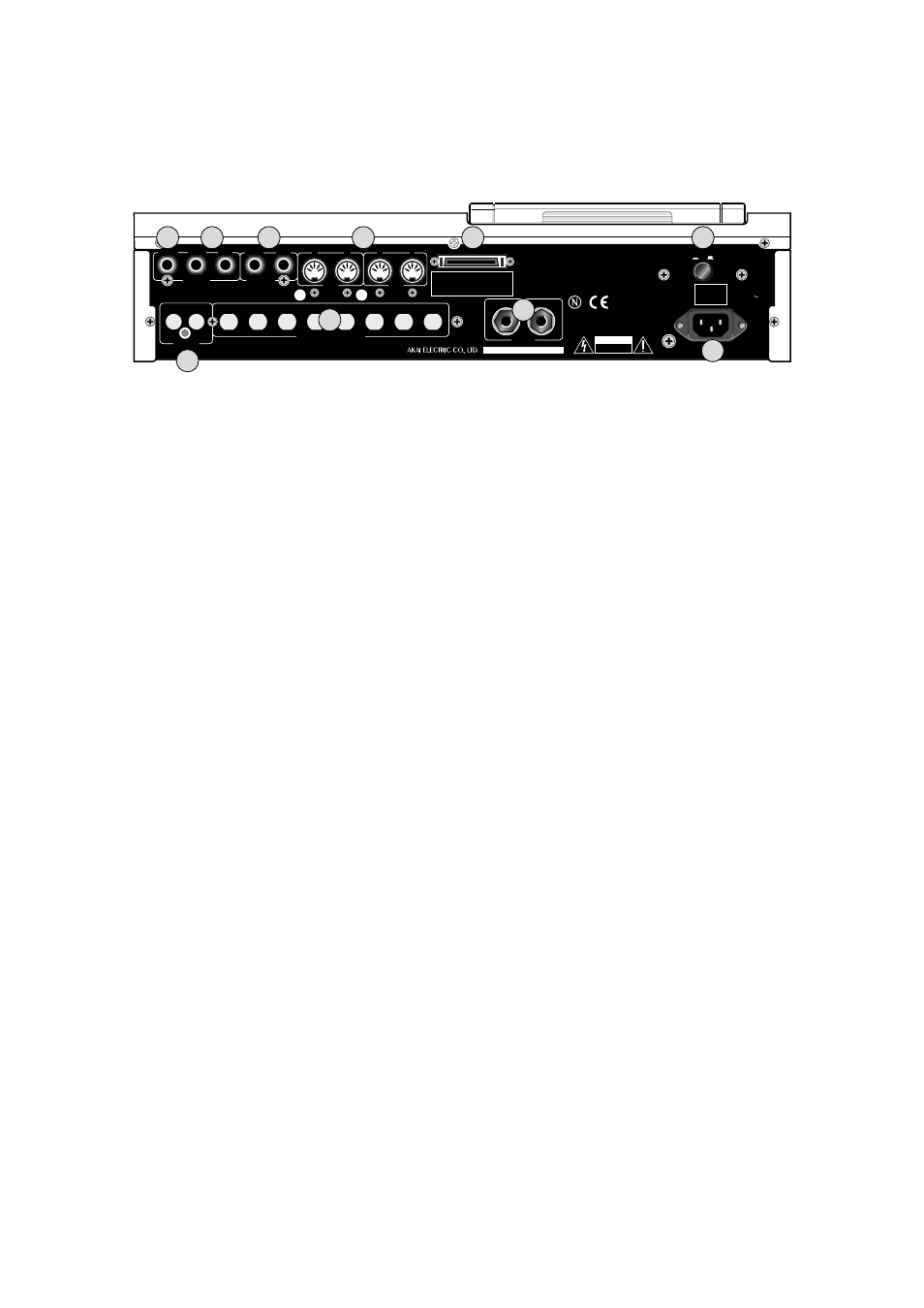

Rear Panel
or STEREO OUT PHONES
Connect your stereo headphones here.
The same sound is output to the STEREO OUT
LEFT and RIGHT jacks.
os
STEREO OUT LEFT/RIGHT
These are the main output jacks.
ot
RECORD IN
These are the input jacks used for sampling. These
stereo phone jacks are balanced inputs.
ou
MIDI IN
These receive MIDI signals. MIDI 1 and 2 sig-
nals are merged.
MIDI OUT
These send MIDI signals. Since A and B are
independent, it is possible to handle a total of
32 MIDI channels.
ov SCSI
This is a 50 pin SCSI interface connector that you
can connect to external disk drives for loading and
saving data.
ow POWER
This is the power ON/OFF switch.
ox DIGITAL IN/OUT (option)
This allows you to sample data directly from an au-
dio CD or DAT. It is also possible to record the
entire digital data from this output to a hard disk re-
corder or DAT, such as the AKAI DR16 or DPS12.
oy
ASSIGNABLE MIX OUT (option)
This allows you to set up to 8 separate outputs for
individual sounds. This gives you more control of
the mixing of the sounds, especially when using an
external mixer or effects unit.
oz SMPTE IN/OUT (option)
If the unit is equipped with the SMPTE option, these
jacks are used to synchronize to a tape that uses
the SMPTE time code.
o{
AC in
Connect the provided power cable here.
MIDI
OUT
MIDI
IN
ON OFF
POWER
MADE IN CHINA MODEL NUMBER MPC2000XL
SCSI
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ASSIGNABLE MIX OUT
1 2 3 4 5 6 7 8 IN OUT
DIGITAL
RECORD
IN
STEREO
OUT
RIGHT LEFT PHONES RIGHT LEFT
IN OUT
SMPTE
A B 1 2
A K A I E . L
1 0 0 - 2 4 0 V
5 0 / 6 0 H z
2 3 W
A C 1 0 0 - 2 4 0 V
5 0 / 6 0 H z
2 3 W
WARNING :
SHOCK HAZARD - DO NOT OPEN!
AVIS :
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR!
VORSICHT :
BERUHRUNGSGEFAHR -NICHT OFFNEN!
.. ..
31 32 33 34 35
36
37
30
38
39
