Chapter 9: Effects
Page 140
When REV4MOD/ECHO is selected

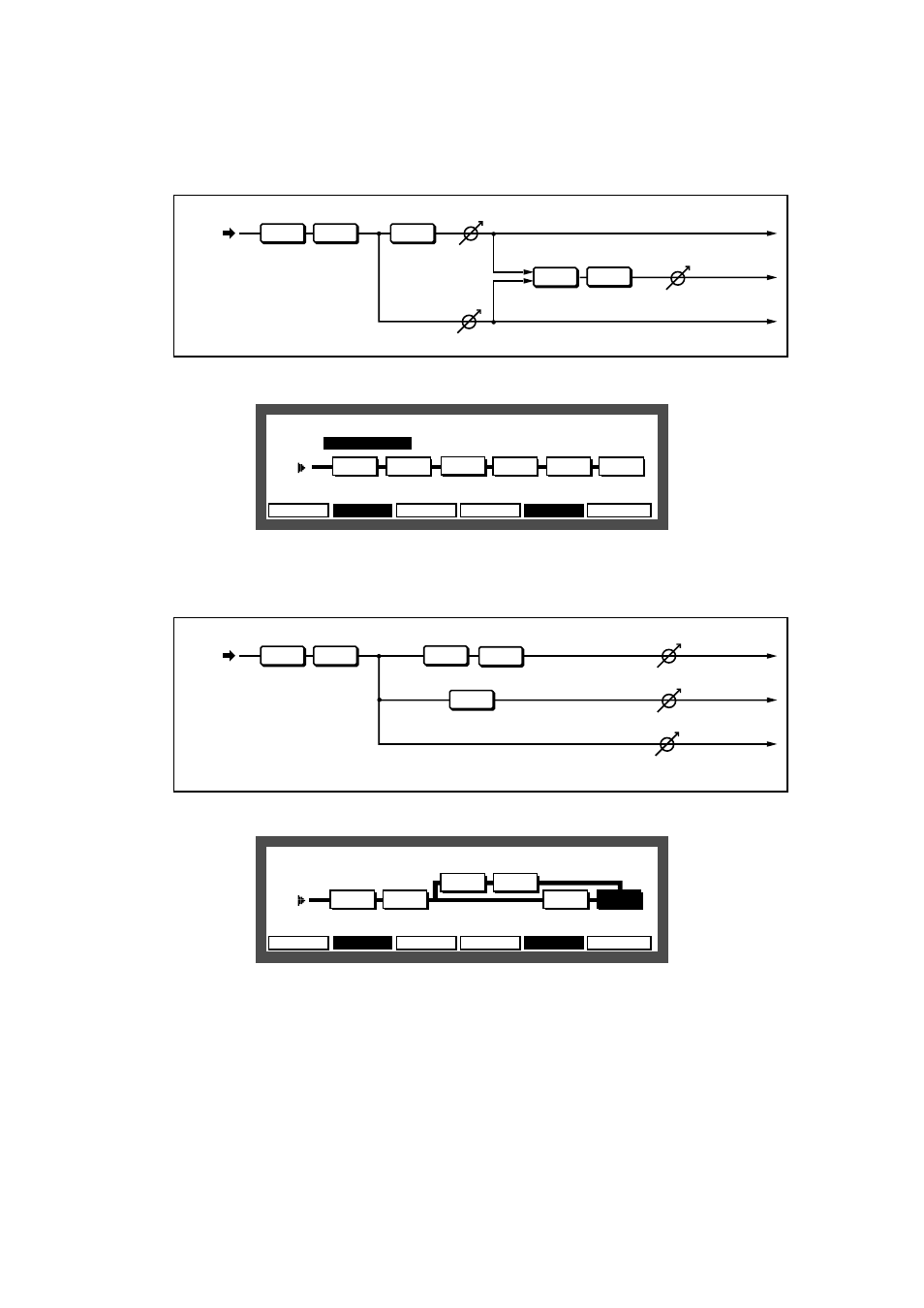

The signal flow is as follows:
DIST FILT
MOD
REV M1/M2
ECHO
Dist/Filt
Reverb
Mod/Echo
ON/OFF DRUM 2 DRUM 2 DRUM 1 DRUM 1 DRUM 3 DRUM 3 DRUM 4 DRUM 4 SETUP
Drum:1 Pgm: 1-NewPgm-A
Edit: MULTI FX1
M1 REV MIX DIST FILT MOD ECHO
When MOD/ECHO+REV is selected
The signal flow is as follows:
DIST FILT M1/M2 ECHO MOD
REV
Mod/Echo
Reverb
Dist/Filt
ON/OFF DRUM 2 DRUM 2 DRUM 1 DRUM 1 DRUM 3 DRUM 3 DRUM 4 DRUM 4 SETUP
Drum:1 Pgm: 1-NewPgm-A
Edit:MULTI FX1
M1 REV DIST FILT MIX
MOD ECHO
