Toa VM-3000 Series User Manual
Page 135
135
Number of VM amplifiers
1
2
3
4
5
6
7
8
9
10
Number of VX-2000DS’
1
2
3
4
5
Number of VX-200PS’
1
2
3
4
5

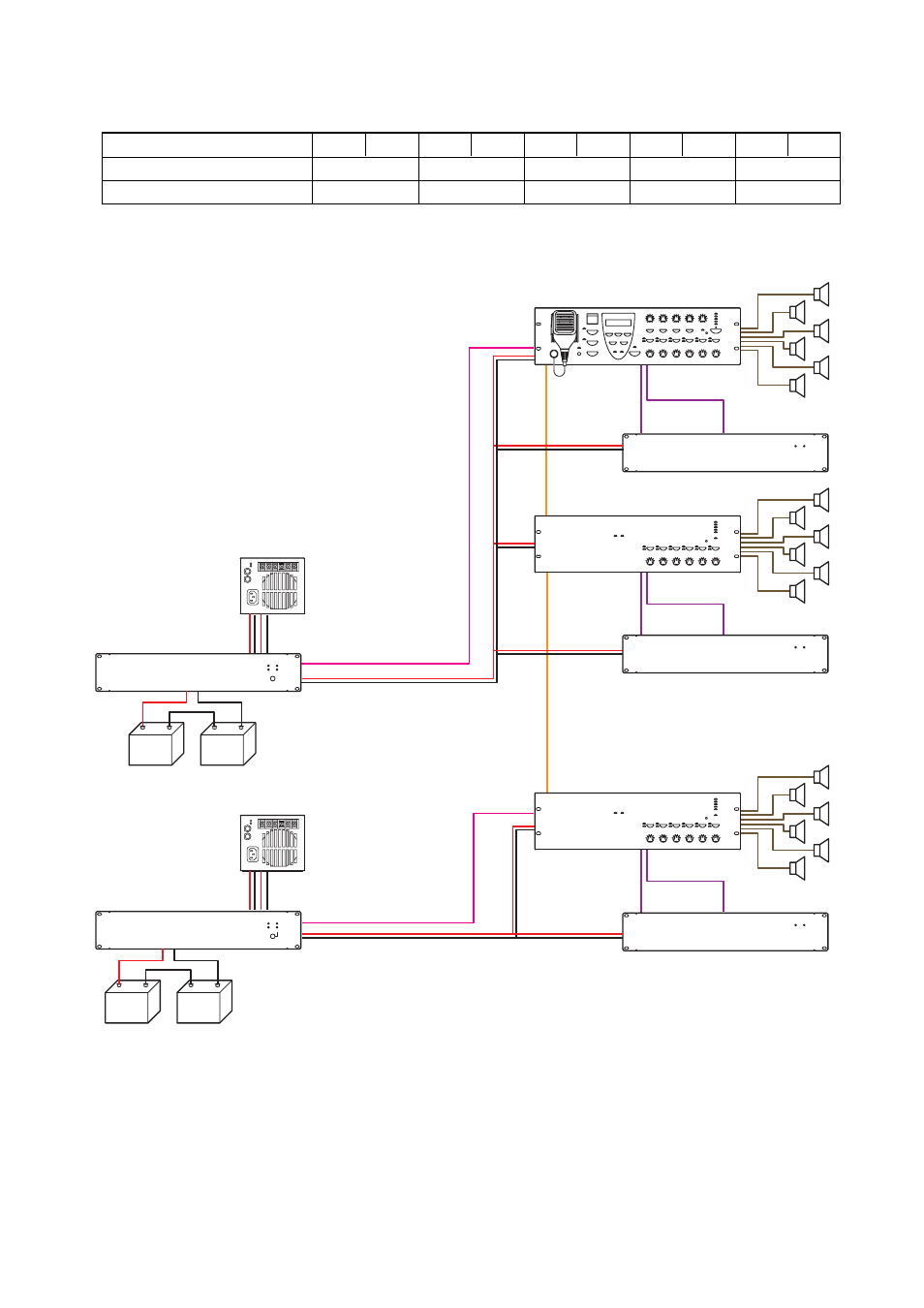

Below is an example showing that 2 each of VX-2000DSs and VX-200PSs are required in a system
including 3 VM amplifiers.
VM-3240VA
VM-3240E
Lead-acid Battery
VX-2000DS
VP-2241
EXT. AMP INPUT
EXT. PA LINK
DC POWER
VM LINK
DC POWER
DS LINK
DC POWER
DS LINK
VM LINK
PA OUT
EXT. AMP INPUT
EXT. PA LINK
PA OUT
EXT. AMP INPUT
EXT. PA LINK
PA OUT
VP-2241
DC POWER
VP-2241
DC POWER
Lead-acid Battery
VX-2000DS
VX-200PS
VX-200PS
VM-3240E
Notes
•
A pair of the VM amplifier and VP amplifier should be connected to the same VX-2000DS.
•
One VX-200PS should be connected to each VX-2000DS.
•
Required number in a BGM/Paging system
One each of VX-2000DS and VX-200PS is required every 2 VM amplifiers.
