118
[Setting example]

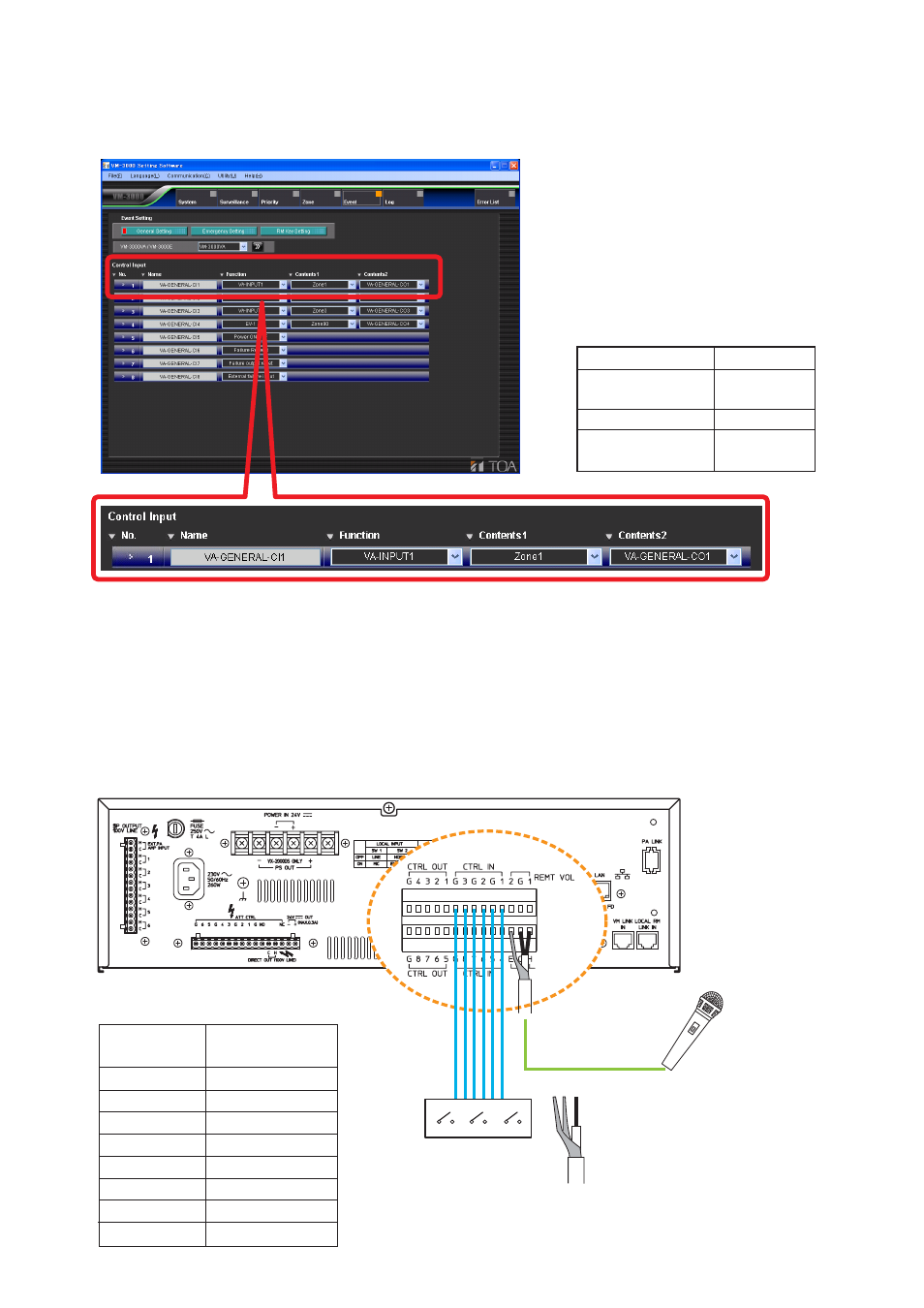

Shown below is a general control input setting screen in the setting software.
The figure shows an example when performing a general broadcast by way of the contact activation.
14.4.2. Using the local input
Local broadcasts can be performed within the area where the unit covers using the VM-3240E's or VM-
3360E's Local input. To use this function, refer to "Local input settings" in "System settings" in the separate
software instruction manual.
Note
This function can be used only when all the versions of VM-3000VA firmware, VM-3000E firmware, and VM-
3000 Setting Software are 2.00 or later.
VM-3240E/3360E rear
E C H
When using a single-core shielded
cable, connect the shielded mesh to
both E and C terminals.
Local Input
Relation between Control inputs and
broadcast output destinations
AWG 28 – 22
SUB SW2 SW1
Control input
CTRL 1
CTRL 2
CTRL 3
CTRL 4
CTRL 5
CTRL 6
CTRL 7
CTRL 8
Broadcast output
destination
OUTPUT1
OUTPUT2
OUTPUT3
OUTPUT4
OUTPUT5
OUTPUT6
OUTPUT1-6
Not used.
LOCAL
INPUT
Control input
Sound source
input
Broadcast zone
Interlocked control
output
No. 1
VA-INPUT 1
Zone 1
No. 1
