Toa VM-3000 Series User Manual
Page 13
35
VM-3240VA and VM-3360VA
62
36
37
40 41
42
43
44
45
46
47
48
49
50
51 52
53
54 55
56
57
58
59 60
61
38
39
VM-3240E and VM-3360E
49
50
51 52
53
54 55
63
57
64
59 60
65
66
68
67
35
36
37
42
44
45
46
38
39
Common to both Voice Alarm System and Extension amplifiers.
Differing between Voice Alarm System and Extension amplifiers.
Not used.
69
13

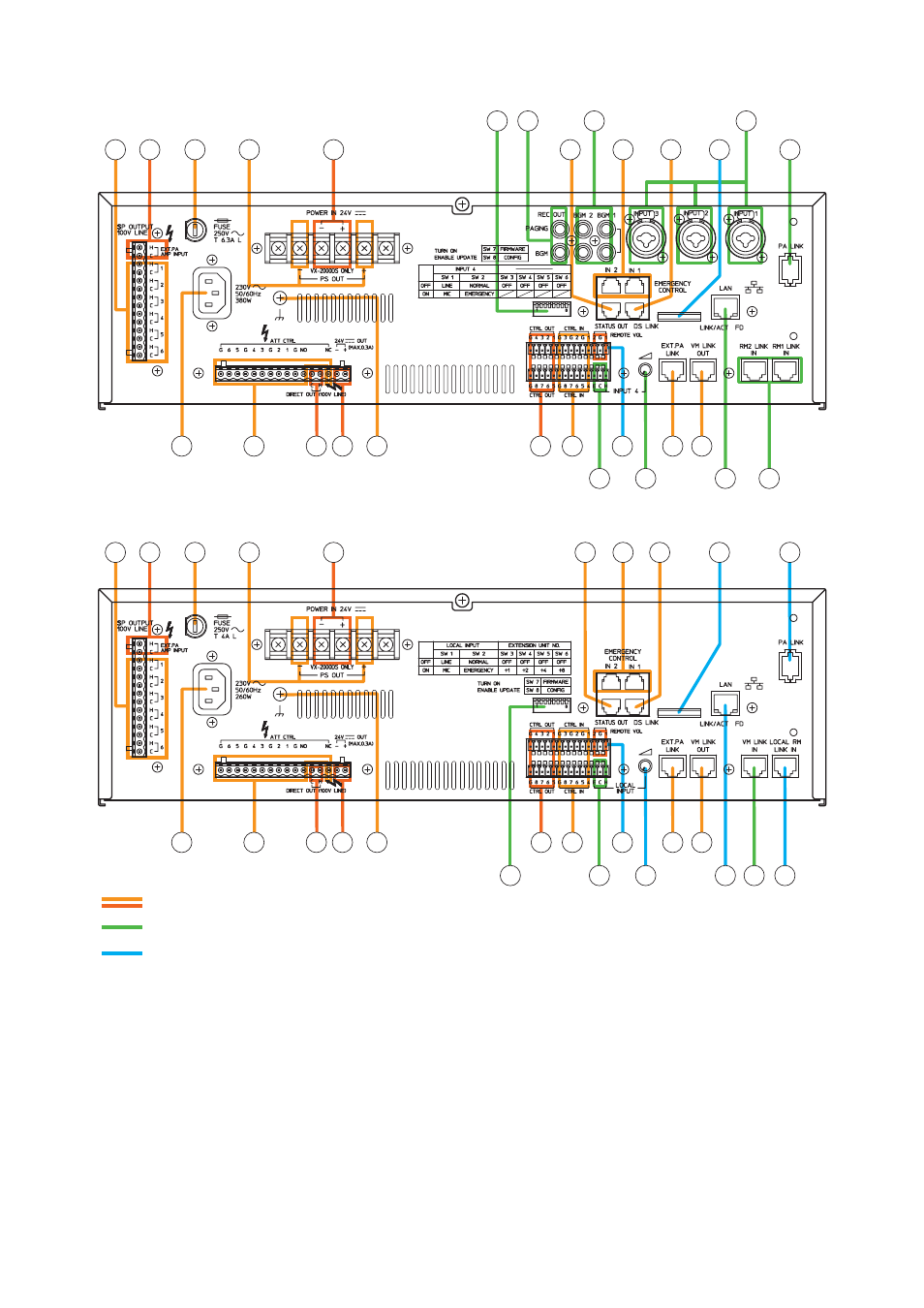

35. Speaker Output Terminals 1 – 6 [SP OUT
100 V LINE 1-6, H, C]
Connect speakers to these outputs.
36. External Amplifier Input [EXT. PA AMP
INPUT]
Audio input terminals for VP-2421 or VP-2241
standby amplifier’s PA OUT terminals (100 V
line).
37. AC Fuse
Use the following 20 mm type miniature fuses:
4 A (for VM-3240VA and VM-3240E) and 6.3 A
(for VM-3360VA and VM-3360E)
38. Power Supply Output Terminals [VX-2000DS
ONLY, PS OUT]
Supply power to the VX-2000DS Emergency
Power Supply. When the VX-2000DS is not
connected, use shorting bars to connect PS OUT
(+) to POWER IN (+) and PS OUT (–) to
POWER IN (–).
[Rear]
