Toa VM-3000 Series User Manual
Page 133

133

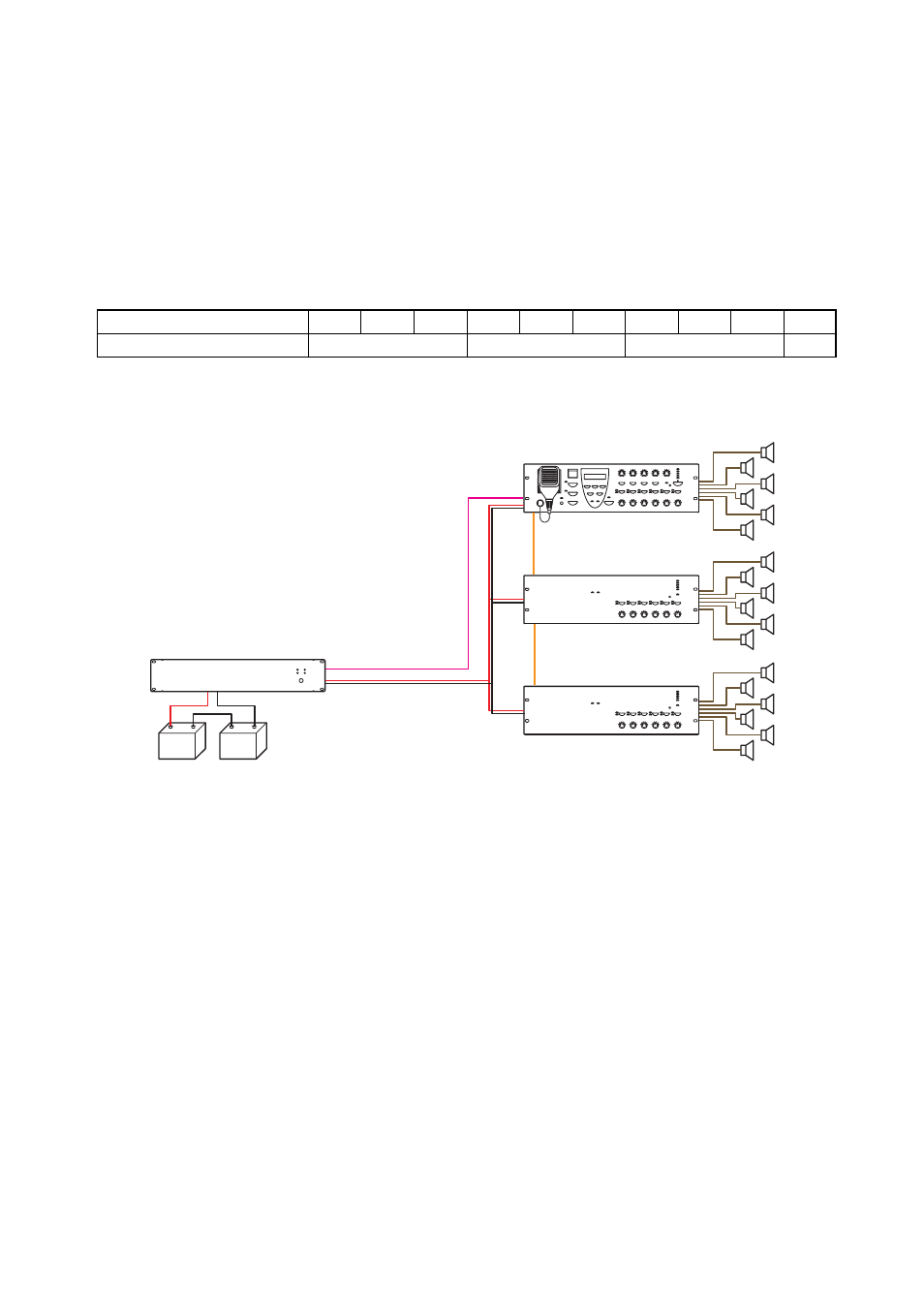

Below is an example showing that one VX-2000DS is required in a system including 3 VM amplifiers.
VM-3240VA
VM-3240E
VM-3240E
Lead-acid Battery
VX-2000DS
VM LINK
DC POWER
DS LINK
VM LINK
Number of VM amplifiers
1
2
3
4
5
6
7
8
9
10
Number of VX-2000DS'
1
2
3
4
[Required number of VX-200PS and VX-2000DS units]
The required number of VX-2000DS Emergency Power Supply units and VX-200PS Power Supply Units are
determined depending on the application of the system configured with the VM-3240VA, AM-3360VA, VM-
3240E, and VM-3360E (hereinafter called "VM amplifier") , and/or the VP-2241 and VP-2421 (hereinafter
called "VP amplifier").
•
Required number in a 1-channel broadcasting system
System including VM amplifiers only
One VX-2000DS is required every 3 VM amplifiers. The VX-200PS is not needed in this system.
