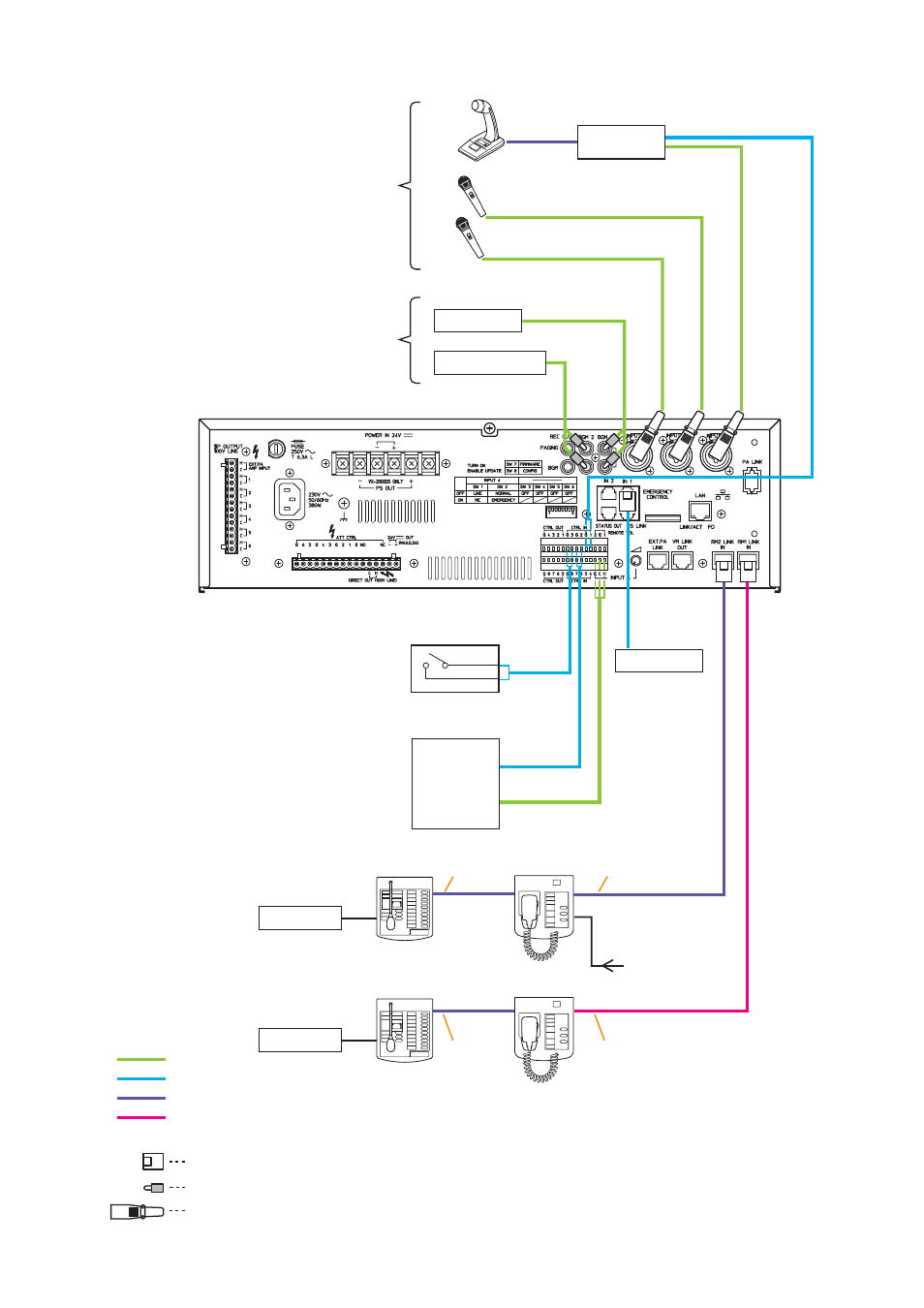

14.2. Audio and Control Connection Example
Cassette Player
Fire Alarm
CD Player
24 V DC
from VX-2000DS*
RM-300MF
CAT. 5
CAT. 5
CAT. 5
CAT. 5
RM-300MF
Remote unit
RU-2002
Talk switch or other
make contact
BGM sources
Paging microphones
VM-3240VA/3360VA rear
PBX
Control
Audio
RM-200M
RM-200M
XLR type female connector
RCA plug
RJ45 male connector
Audio line
Control line
Audio + control line
Audio + control + DC power line
AC adapter
AC adapter
* If a backup power supply in case of AC power failure is
not needed, an AC adapter can be used instead of the
VX-2000DS.
