4. NOMENCLATURE AND FUNCTIONS
4.1. VM-3240VA and VM-3360VA Voice Alarm System Amplifiers
These amplifiers function as the central units in the VM-3000 system and their power outputs are rated at
240 W for the VM-3240VA and 360 W for the VM-3360VA. Only one unit can be connected in the system.
The front panel-mounted LCD displays setting and operation status. The amplifiers also feature an automatic
message function and can play back up to 6 recorded general announcements and 2 recorded emergency
announcements. Up to 2 RM-300MF Emergency Remote Fireman’s Microphones can be connected, and up
to a total of 4 RM-200M general broadcast-use Remote Microphones and RM-300MF Fireman’s Microphones
connected.
4.2. VM-3240E and VM-3360E VM Extension Amplifiers
The system can be expanded by connecting up to 9 VM-3240E or VM-3360E Extension Amplifiers. The 240
W VM-3240E and 360 W VM-3360E are both equipped with 6 speaker line outputs. Both also feature 8 inputs
and 8 outputs for general broadcasts and 6 inputs and 3 outputs for emergency broadcasts. They are
connected to the VM-3240VA or VM-3360VA via the VM Link connector.

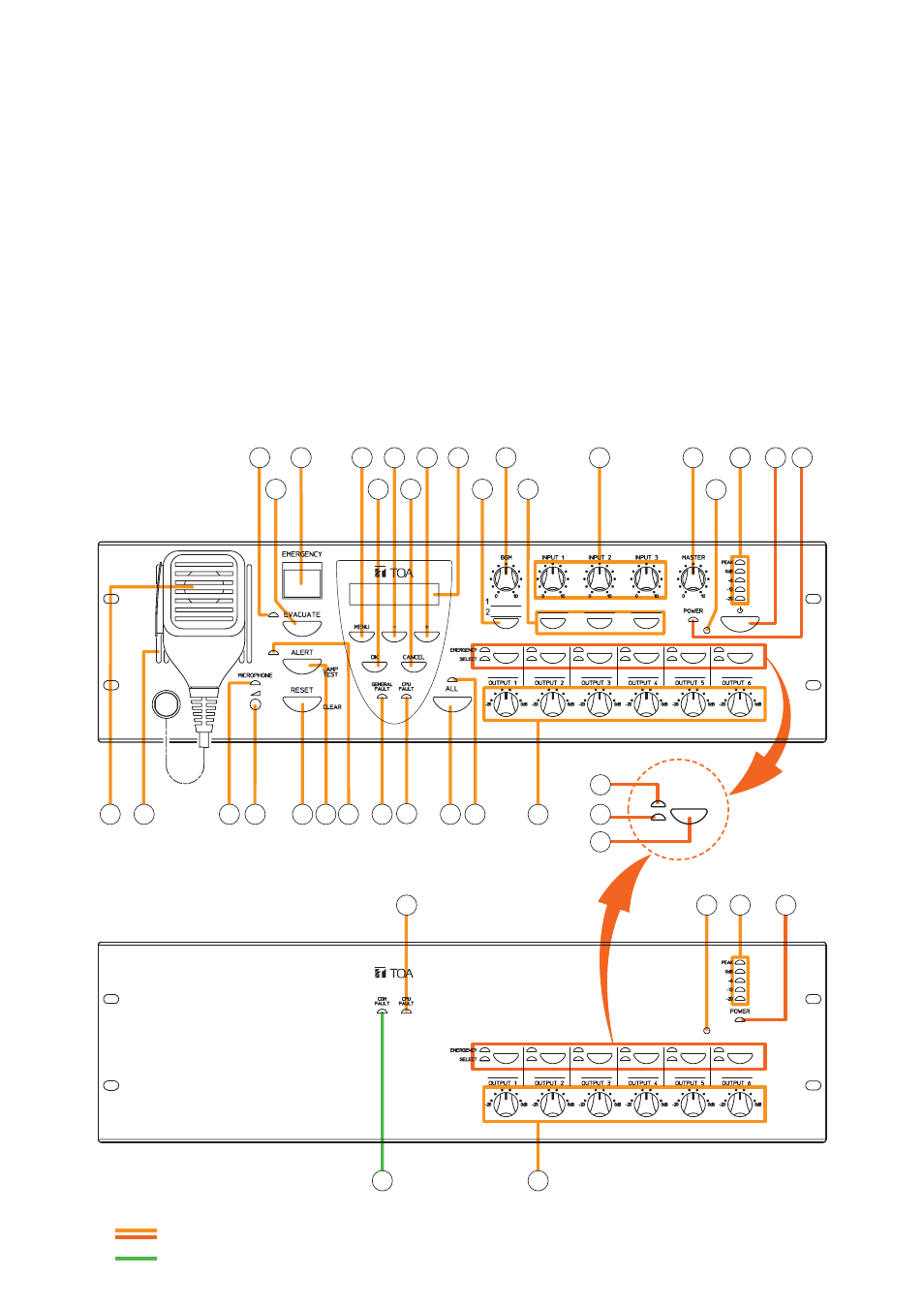

[Front]
