Toa VM-3000 Series - Manual (Page 115)

115

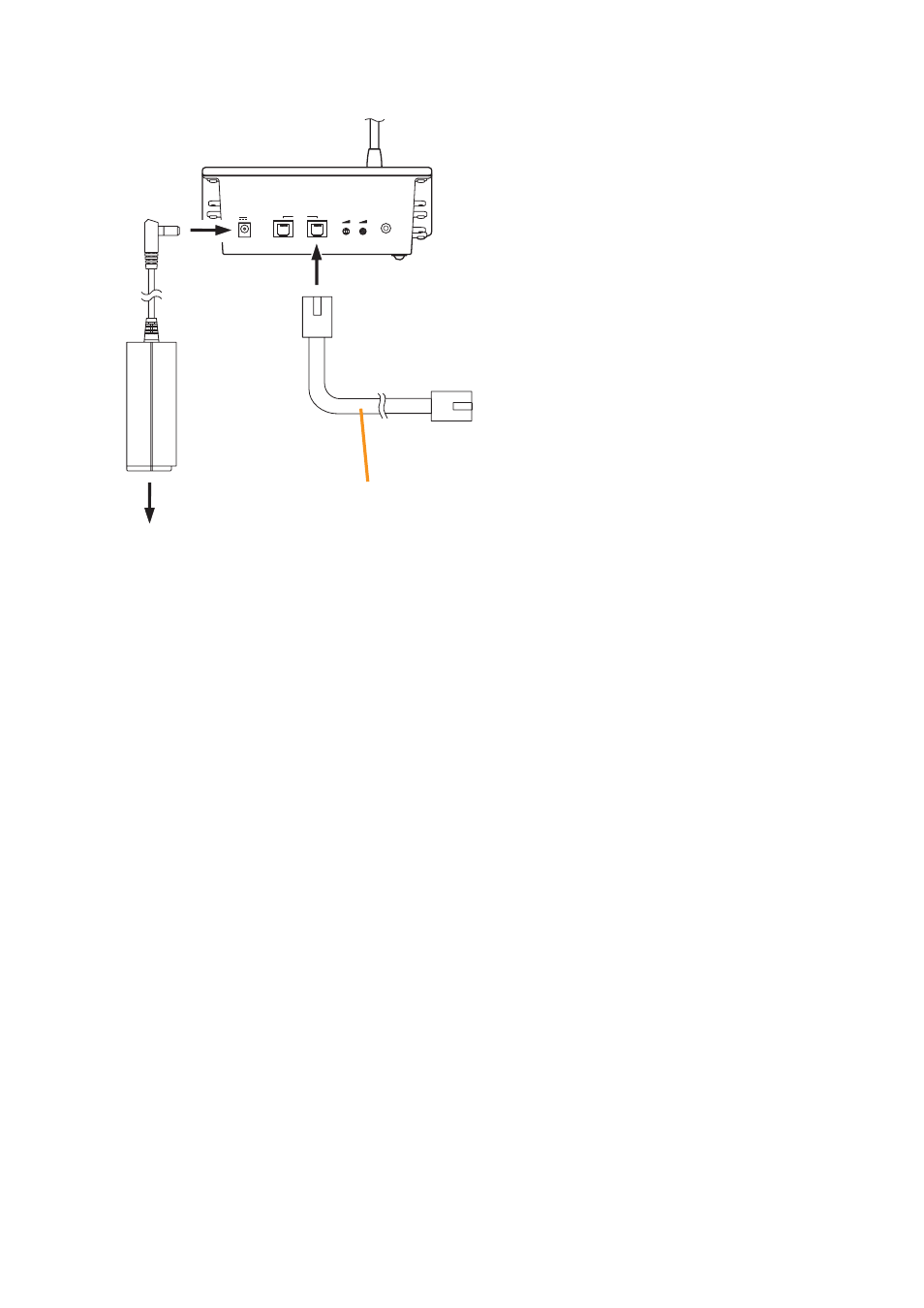

[When power is supplied from the AC adapter]
LINK
DC POWER IN
24V MIC SP
EXTERNAL
MIC IN
To VM-3240VA, VM-3360VA, RM-300MF, RM-200M
RM-200M Rear
AD-246 AC Adapter or
equivalent unit
To AC power
Maximum cable distance in a system when a
STP Category 5 straight cable is used: 800 m in total
* Usable AC adapter
24 V DC/over 200 mA (Operation range: 14 – 28 V DC)
Usable power input plug: Non-polarity type
(5.5 mm outer diameter, 2.1 mm inner diameter, and 9.5 mm long)
Note
Plugging a DC plug into the RM-200M's DC POWER IN terminal automatically switches the RM-200M's DC
power input to this terminal, disconnecting the unit's power supply from the LINK connector.
Be sure to firmly secure the DC plug by fixing the power cable onto the RM-200M's bottom-mounted cable
hook.
If the DC plug is pulled out, the LINK connector takes over the unit's power supply and is connected to the
system power line. This may cause the voltage drop of power supply and increase the current consumption
from the VM-3240VA or VM-3360VA, resulting in the system malfunction.
