SmartPad II
Software Version 4.03
Chapter 3 - Real-Time Guidance 3-29
Lightbar Setup
Display Mode
The Lightbar Display Mode setting defines how the user will interpret the row of LEDs located on the lightbar. The
center stack of Green LEDs can represent either the current guideline or the vehicle, see Table 3-11.
To change the Display Mode setting; highlight the Display Mode menu item and press . The Display Mode dialog
box will appear. Select the desired setting using the arrow keys , once the desired setting is selected, press
to return back to the Lightbar setup menu, see Figure 3-38.

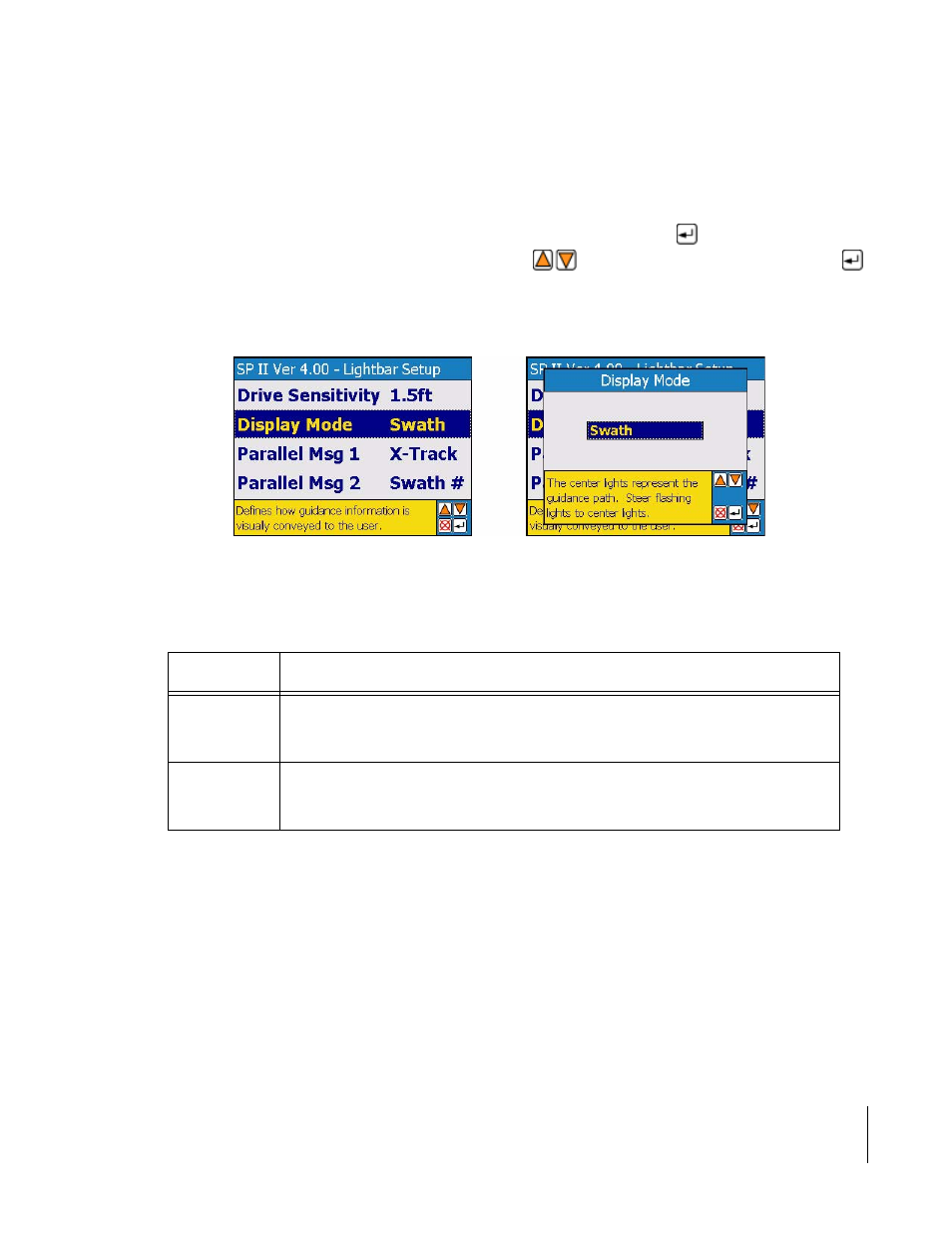

Figure 3-38: The Display Mode Menu Item
Setting Description
Swath When Display Mode is set to Swath, the center stack of Green LEDs will represent the
current guideline. In this mode steer the vehicle to bring the moving LED back to cen-
ter, see Figure 3-39.
Vehicle When Display Mode is set to Vehicle, the center stack of Green LEDs will represent the
vehicles position. In this mode steer the vehicle to bring the center lights towards the
moving LED, see Figure 3-40.
Table 3-11: Display Mode Settings
