The Polyline Mark Mode
Fieldware for Smartpad II
Software Version 4.03
The Polyline Mark Mode
This mode is used to map or locate features that can be represented by a line made of discrete points. A line will be
mapped between dropped points at the designated antenna location.
To map a polyline mark select the polyline mark button, once selected a name must be established Figure 5-31. After
a name is entered begin driving the path to be located. Notice when the polyline mark button is selected the button
changes to Mark Polygon Point button see Figure 5-32. Drop points by selecting the mark polygon point button
whenever a point should be dropped. To end the line press the finish flag button and all Mapper modes will appear in
the button bar.

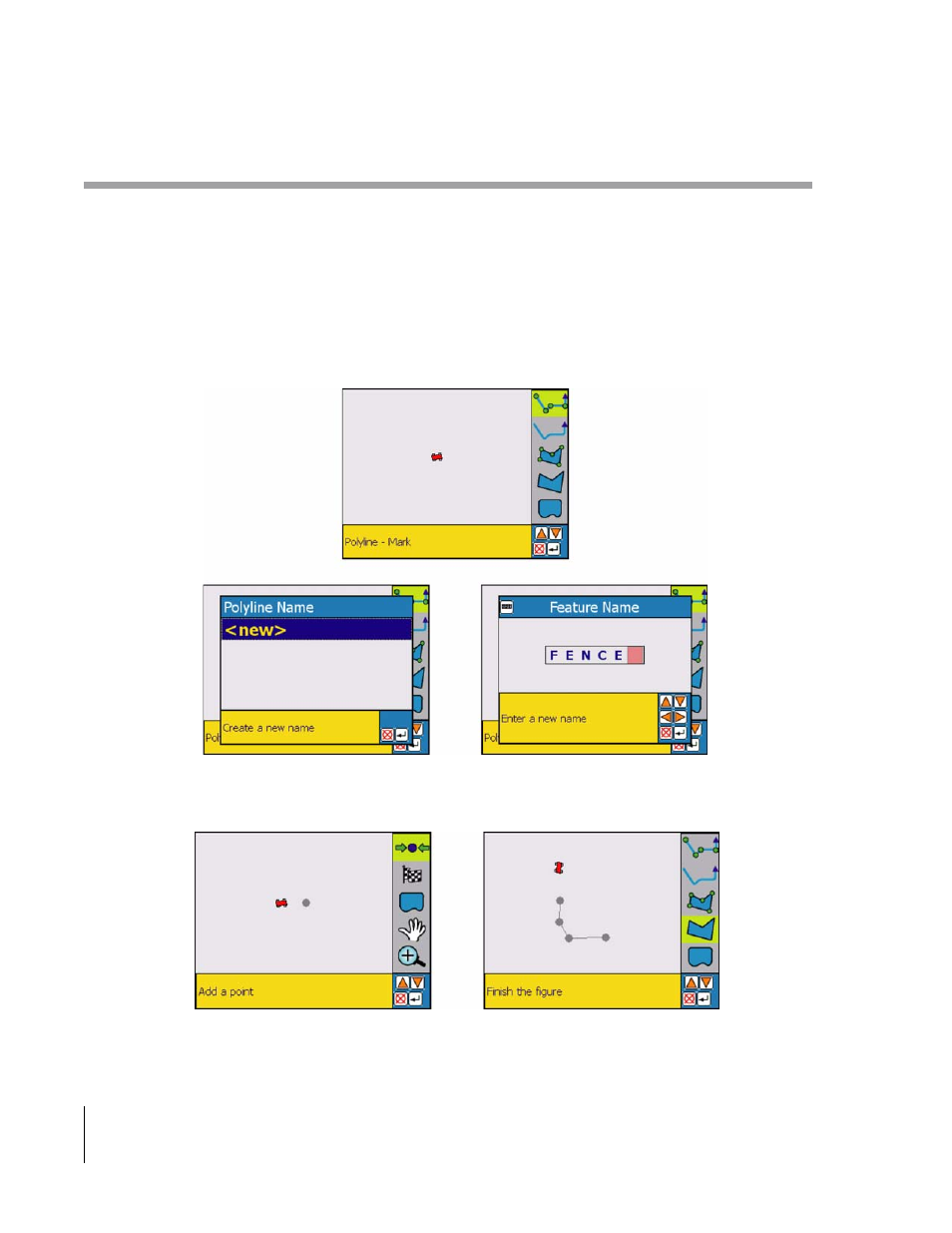

Figure 5-31: Polyline Mark Setup
Figure 5-32: Ending a Polyline Mark
