SmartPad II
Software Version 4.03
Chapter 3 - Real-Time Guidance 3-19
Data Setup
Data Examples
The following is a series of data storing examples using the menu items described in the Data menu section.
Example 1: All Data Menu Items Set to OFF
This example describes how to start guidance with no As Applied data, or boundary file information and no mapping
objects on the go, Figure 3-21. Therefore when the Start Guidance menu item is selected the software will go directly
in to the real-time guidance process.
Figure 3-22 (left side) shows the Start Guidance menu item. When the Start Guidance menu item is pressed the
SmartPad II software will go directly into the real-time navigation page, Figure 3-22 (right side).

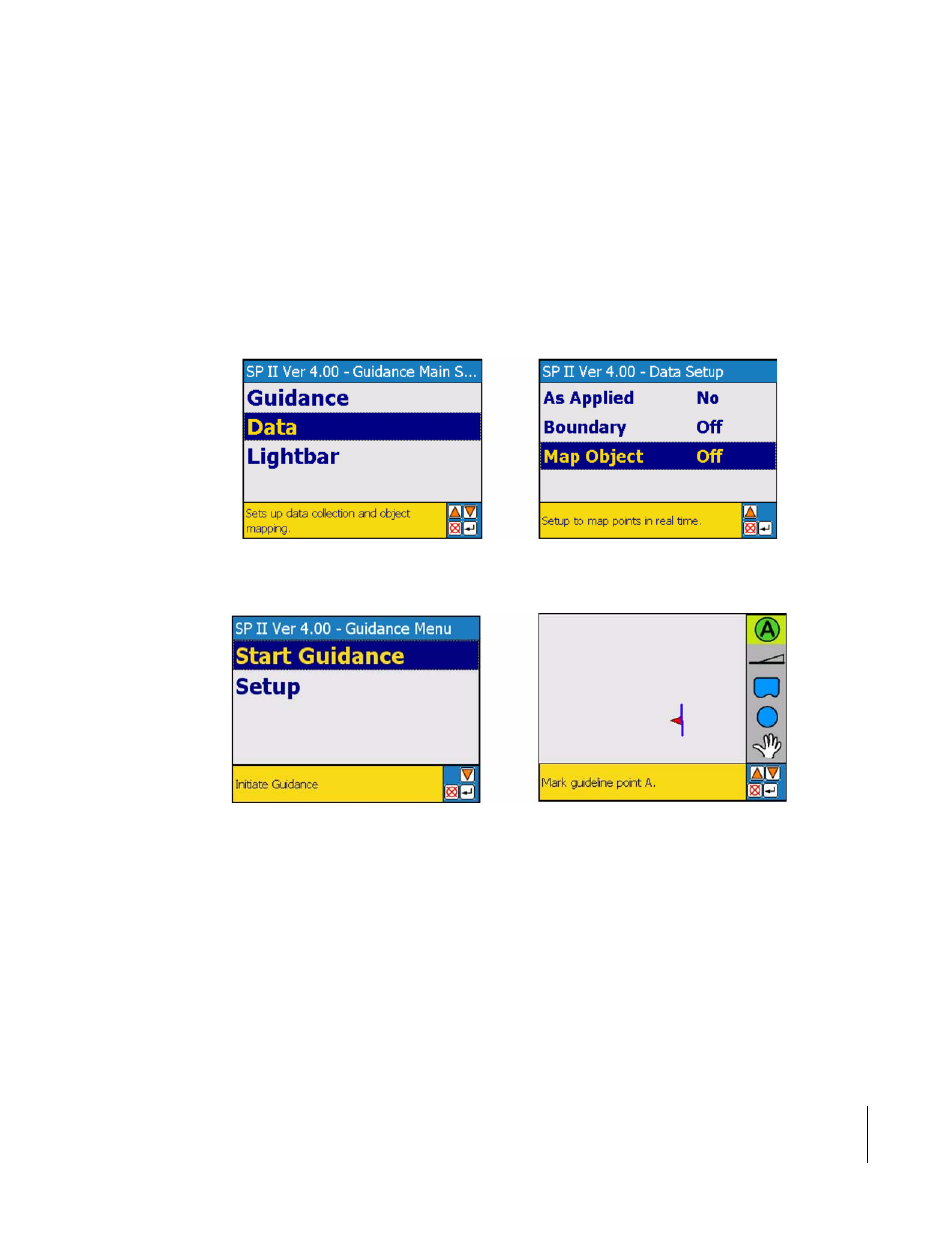

Figure 3-21: All Data Items Set to Off
Figure 3-22: Staring Guidance
