4-30 Chapter 4 - Waypoint Navigation
Nav 2 Point Real-Time Scenarios
SmartPad II
Software Version 4.03
Dropping a Sample Point
In this example, the operator wants to drive around in a field and pull soil samples. The only information available is
the field boundary. There is no soil sample grid or previously defined points in a data file. The Setup -> Data menu
page is shown in Figure 4 -32. The operator would like to automatically increment the sample number and be
prompted for a sample name.
The operator will also offset the antenna over the soil probe located at the back of his pickup truck. See Figure 4 -33
for the Antenna Offset menu page.
Once the setup process is completed and the operator has selected Start Nav 2 Point they will be presented with the
Start Nav 2 Point page shown in Figure 4 -34. In this page the operator must enter a name for the point/grid file as
well as enter the starting sample point number, Figure 4 -35. Once these steps have been completed, the operator

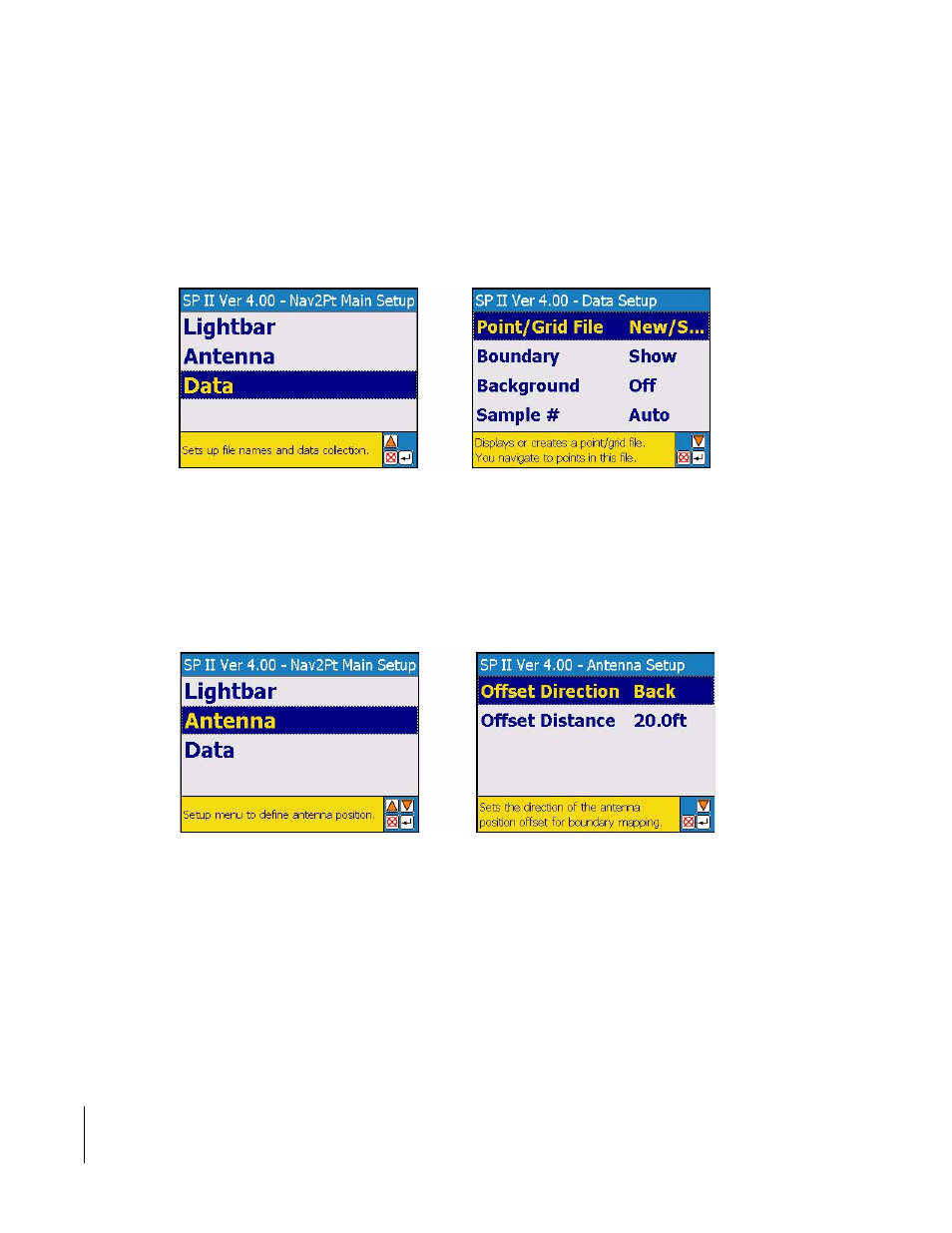

Figure 4-32: Data Setup Menu Page
Figure 4-33: Antenna Offset Menu Page
