3-24 Chapter 3 - Real-Time Guidance
Data Setup
SmartPad II
Software Version 4.03
The Map File menu item defines the file where the mapping object Named Point will be stored, this file can be cre-
ated, or an existing file name can be selected, see Figure 3-31.
The Object Name menu item is where you will enter the name of the Named Point mapping object Figure 3-32. See
Table 3-8, “The Map Object Menu Item Settings,” on page 3-18 for more description on the Named Point mapping
object.
Once the Map File and Object name have been selected, highlight the GO menu item and press to start the real-
time guidance process.
This example also describes the Map Object selection Named Hazard, all menus are essentially identical. If the user
had selected either the Point or Hazard map object, the Object Name menu item described above would not appear in
any of the menus. The user would be prompted for the name of the object when the object is actually mapped during
the real time process.

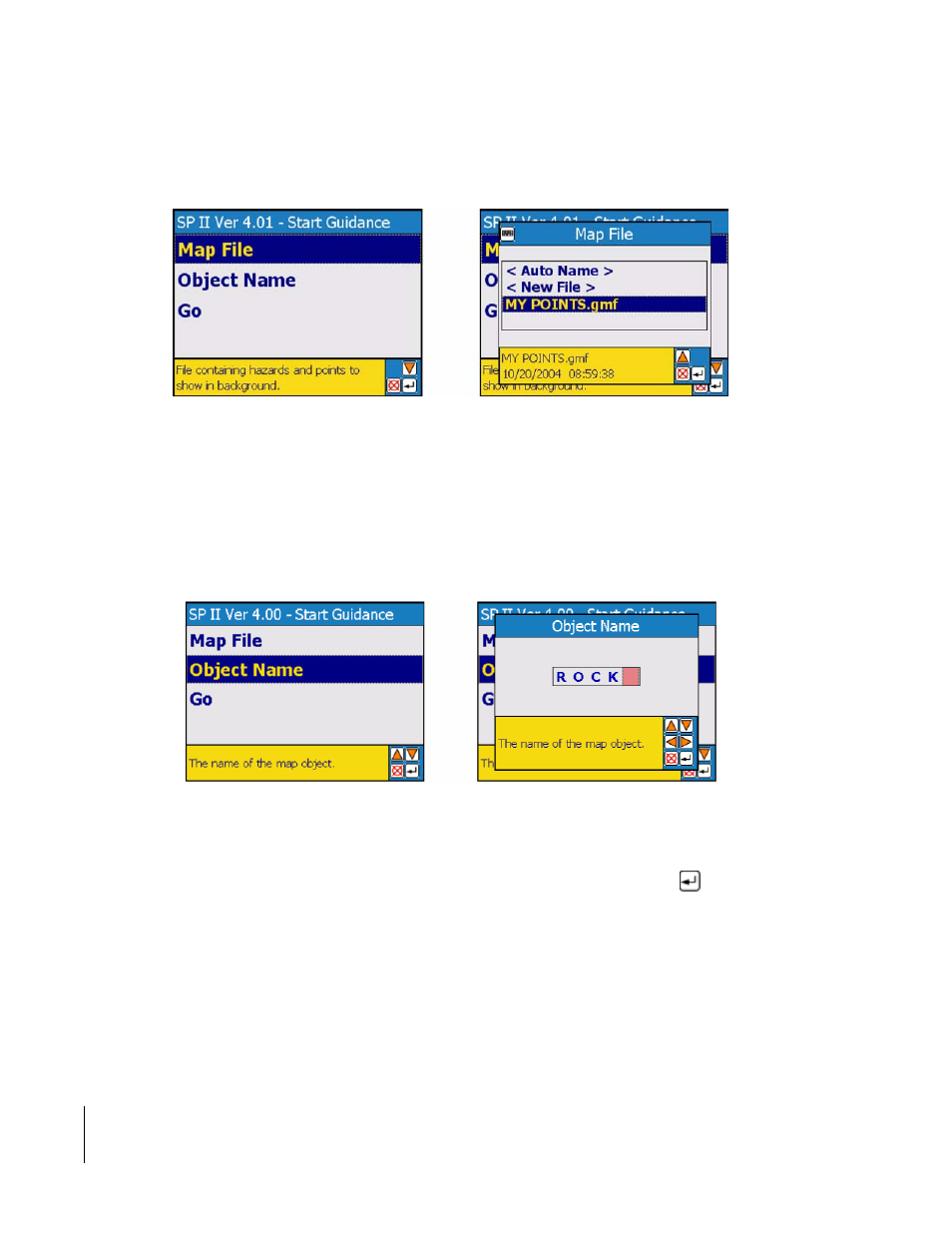

Figure 3-31: Selecting a Map File Name
Figure 3-32: Entering the Point Object Name
