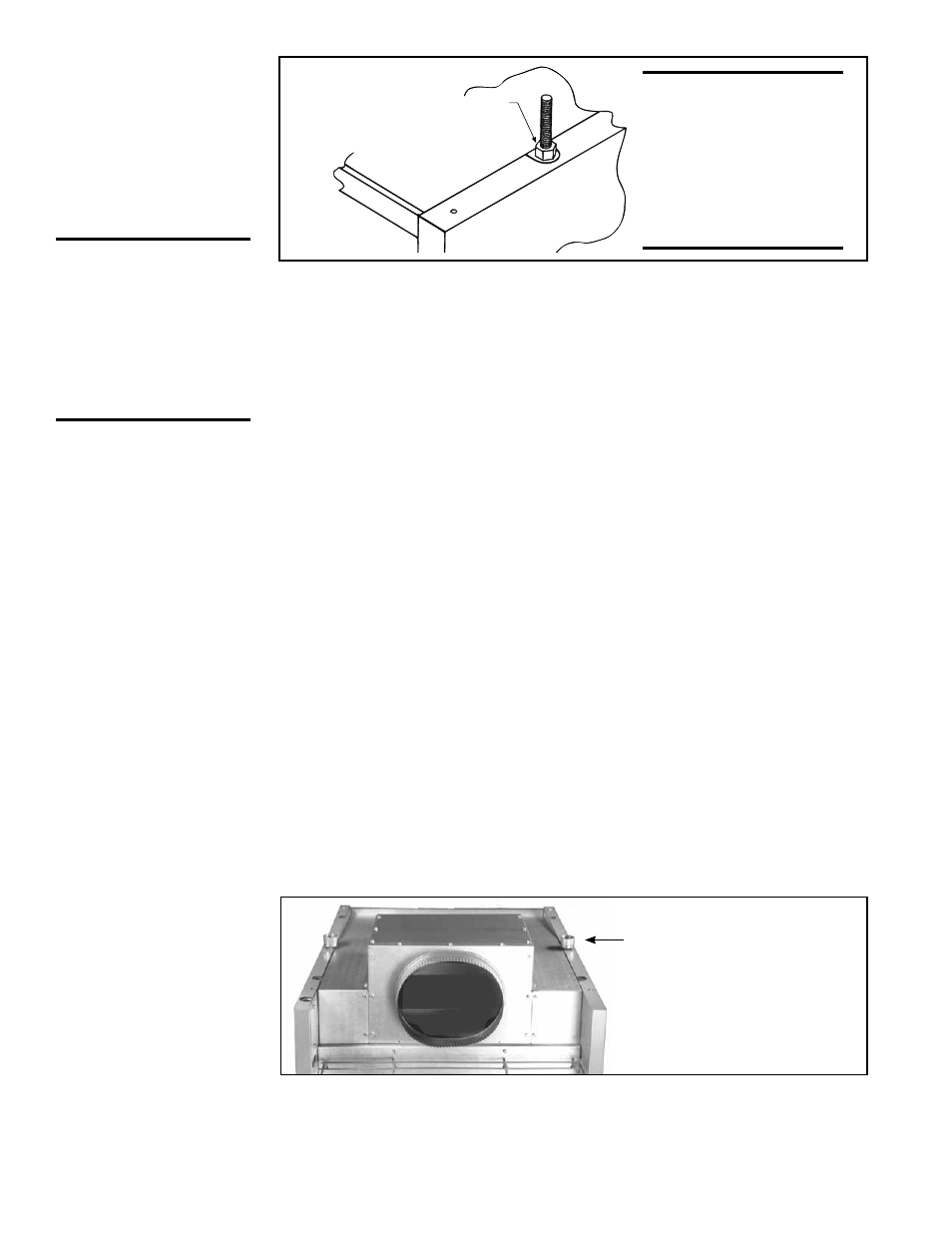

FIGURE 9 - Two-Point
Suspension with Swivel
Connections (fan
models only)
Add nut to lock to inner panels.
NOTE: Do not lock to cover panels.
This may prevent the outer side
panel from being removable for
future service.
FIGURE 8 - Suspension
Point
WARNING:
Suspend the heater
only from the
threaded hanger
brackets. Do not
suspend from the
heater side panel.
5. Hanging the
Heater (cont'd)
5.2 Lifting and
Suspending
(cont'd)
When the heater is lifted for suspension, the bottom must be protected. If the wooden
crate bottom has been removed, the bottom of the heater will have to be supported
with plywood or other appropriately placed material. If the bottom is not supported, the
bottom access panel could be damaged. Also, when lifting a blower unit, support the
blower and motor to prevent the unit from tipping.
All blower models have legs that support the blower assembly during shipping. After
the unit is suspended, these legs should be removed.
Be sure that the threaded hanger rods are locked to the heater as shown in
FIGURE
8.
If an optional downturn air nozzle is used, the unit must be suspended from four
points to ensure level suspension. Two hanger brackets are included in the downturn
option package and must be field-installed on fan-type units with standard two-point
suspension. For additional information, refer to Paragraph 28 and the instructions that
are furnished with the option package.
When blower-type units are equipped with an optional blower/filter cabinet, there
are two suspension points on the blower cabinet hanger bar. Suspend a unit equipped
with a blower/filter cabinet from four points, using the two heater hanger bracket assem-
blies closest to the front of the heater and the two suspension points on the blower/filter
cabinet.
If one of the four optional, field-installed hanger kits has been ordered for your heater, it
will have been shipped separately. Each option package includes a list of components
and complete, step-by-step assembly instructions.
Two Optional Swivel
Connectors for hanging
from 1" pipes
3) Four-Point with Swivel Connectors (fan-models only) - Option CK9
(See FIGURE 10)
This option package is designed to convert a fan-type heater from standard two-point
suspension to four-point suspension with swivel connectors. By installing this kit the
standard fan-type heater can be hung from four 1", threaded, stationary pipes. The kit
5.2.1 Optional, Field-
Installed Hanger Kits
1) Four-Point Suspension (fan models only) - Option CK7
This option kit is designed to convert a fan-type heater from standard two-point sus-
pension to four-point suspension. The kit contains two additional hanger brackets.
2) Two-Point Swivel Connectors (fan models only) - Option CK8 (See
FIGURE 9)
The purpose of this option kit is to adapt the standard hanger bracket so that the heater
can be suspended from 1", threaded, stationary pipe. The swivel connector screws
"into" the threaded hanger bracket on the heater and "onto" the 1" threaded pipe used
for hanging the heater. The kit includes two swivel hanger connector assemblies and
two lock washers.
WARNING: Unit
must be level for
proper operation.
Do not place or add
additional weight
to the suspended
heater. See Hazard
Levels, page 2.
