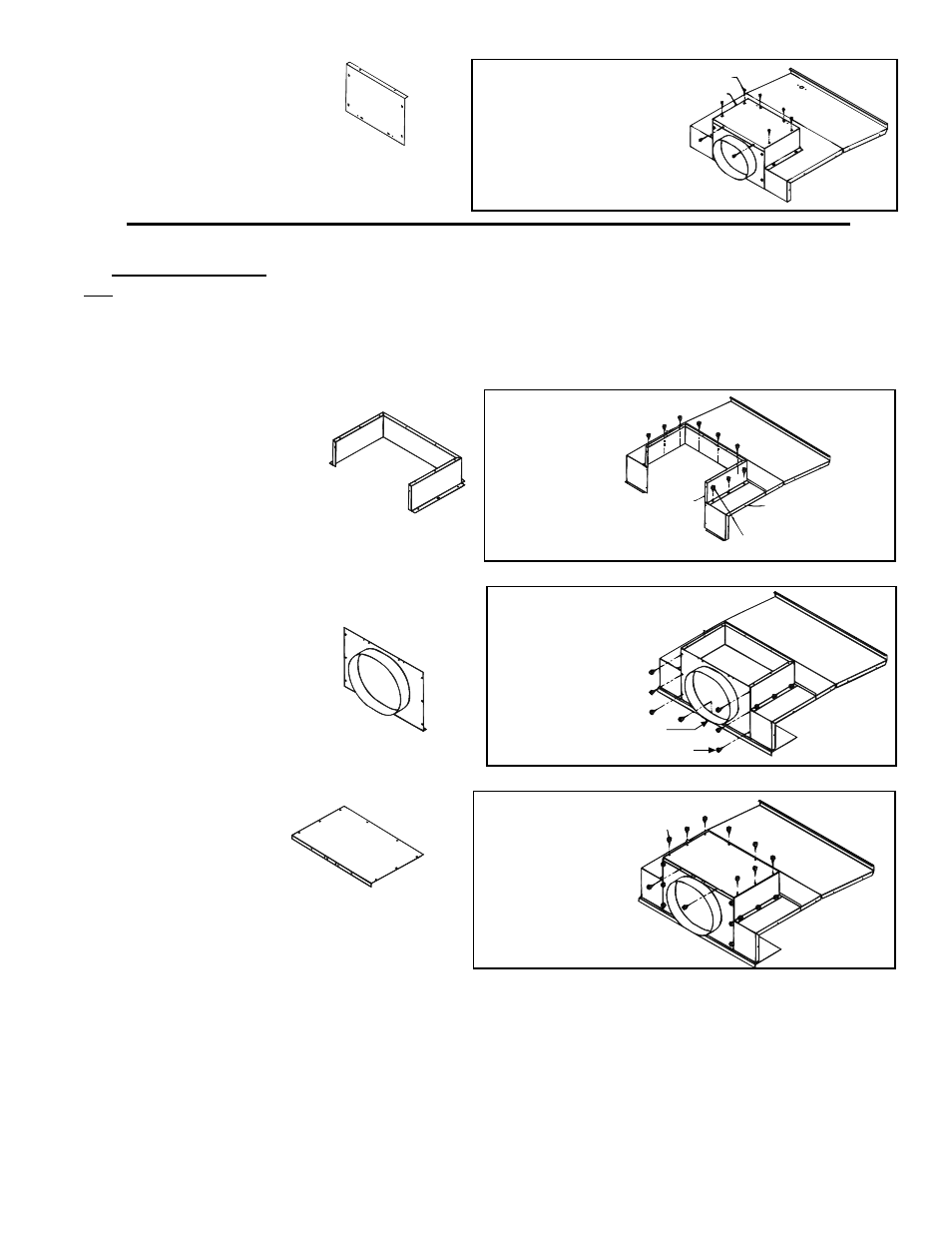

Form I-F/B, P/N 98126 R21, Page 7

Sheetmetal Screw (8)

Flat Cover

Vent Outlet Instructions

for Sizes 250, 300 and

400

1. Remove the two center screws (one on each side) that are holding the three

flue outlet pieces in place during shipping. Use these screws and the 24 screws

(#10x1/2" sheetmetal screws) in the plastic bag.

FIGURE 3C -

Size 125, STEP 4

- Attach Cover

Sizes 250, 300

and 400

Flue Collar Support

Drafthood

Assembly

Sheetmetal Screw (9)

Flue Collar

Support

Sheetmetal Screws (7)

Flue Collar Assembly

3. Attach the Flue Collar Assembly - Sizes 250, 300,

400 (If vent outlet is to be vertical; see Installation

Note, page 5.)

Position the flue collar

assembly over the rear

opening

Fasten with seven

sheetmetal screws

Sizes 250, 300, and 400

Flue Collar Assembly

4. Attach the Cover -

Sizes 250, 300, 400

Position the flat cover

over the top opening

Fasten on the top

and back with ten

sheetmetal screws

Sizes 250, 300,

and 400

Flat Cover

Sheetmetal

Screw (10)

Cover

Size 125

Flat Cover

4. Attach the Cover - Size 125

Position the flat cover over

the top opening

Fasten on the top and back

with eight sheetmetal screws

FIGURE 4A -

Sizes 250, 300,

and 400,

STEP 2 -

Attach

Flue Collar

Support

FIGURE 4B - Sizes

250, 300, and 400,

STEP 3 - Attach

Flue Collar Assy

The vent outlet for Sizes 250, 300, and 400 always requires field assembly. The three

sheetmetal pieces and a parts bag including the instructions and screws are shipped

attached to the drafthood of the heater.

2. Attach the Flue Collar Support - Sizes 250,

300, 400

Position the support around

the hole in the drafthood with

the opening toward the back

of the heater

Fasten with nine sheetmetal

screws

FIGURE 4C -

Sizes 250, 300,

and 400, STEP 4

- Attach Cover

3.2.3 Installing Guard

Options - Model B

Guard options are designed to provide complete protection from the rotating drive

and/or blower components.
Option CD12 is designed for use with Model B Sizes 25-100 with standard direct drive

motor. This kit includes only the blower inlet guard.
Option CD10 is designed for use on Model B Sizes 50-400 with a belt driven motor and

includes both the belt guard and the blower inlet guard.
