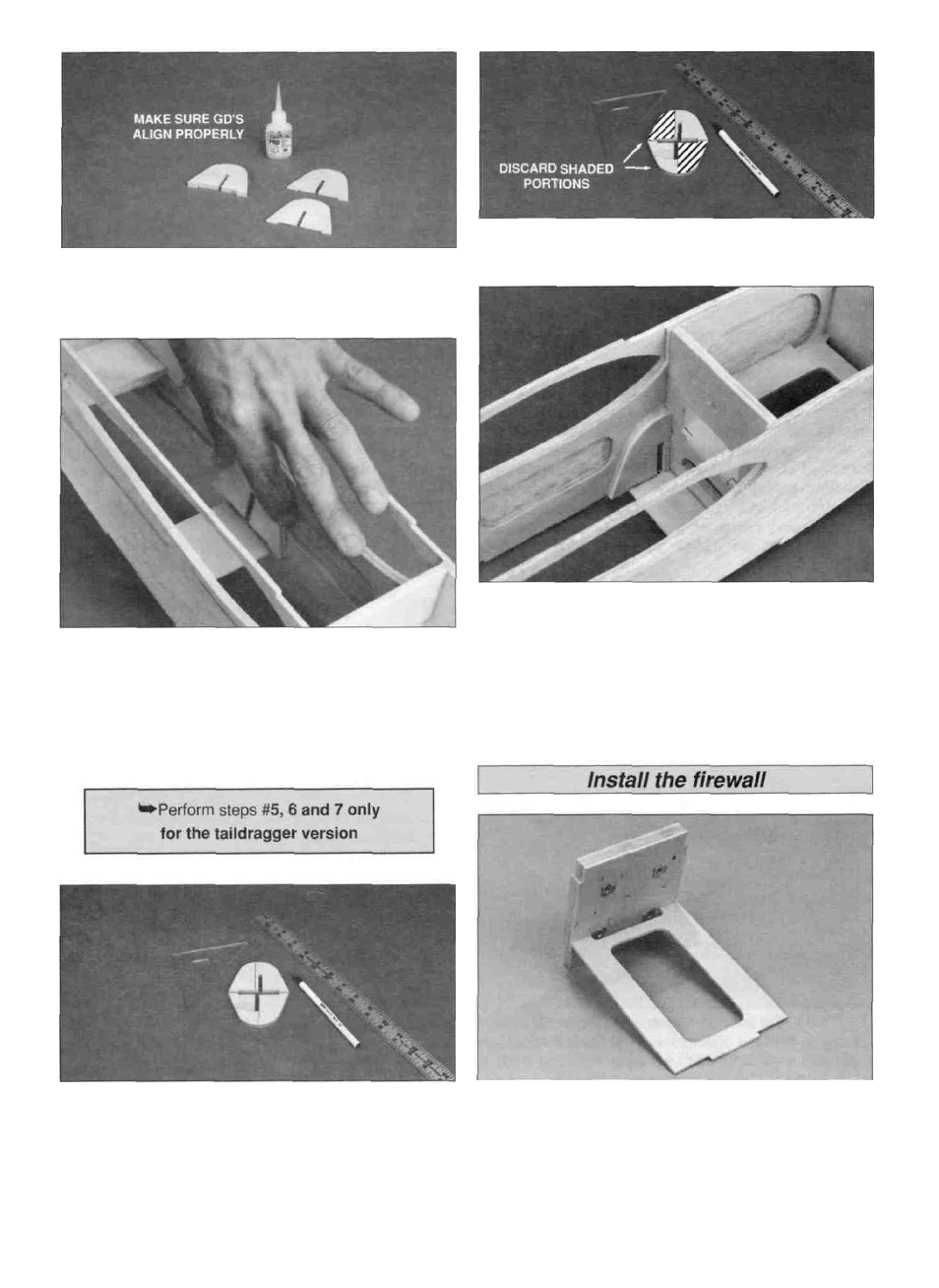

D 3. Locate the four landing gear doublers (GD) and
glue together in pairs using medium CA as shown. Make
sure that the slots in the landing gear doublers align.
D 4. Test fit the landing gear doublers over the landing
gear plate, aligning the slots in the landing gear doublers
with the holes in the landing gear plate. Glue the landing
gear doublers to the landing gear plate and fuse doubler
with 6-minute epoxy. Make sure no glue obstructs the
holes in the landing gear plate or the slots in the landing
gear doublers.
D 6. Carefully cut the landing gear doublers on the lines
and discard the shaded portions as shown.
D 7. Test fit the landing gear doublers over the landing
gear plate, aligning the slots in the landing gear doublers
with the holes in the landing gear plate. Glue the landing
gear doublers to the landing gear plate, fuse doubler and
F2 with 6-minute epoxy. Make sure no glue obstructs the
holes in the landing gear plate or the slots in the landing
gear doublers.
D 5. Arrange the laminated landing gear doublers as
shown and draw extended lines from one to the other.
D 1.Trial fit the die-cut 1/8" ply tank floor into the slots
in former F1 D. Do not glue.
