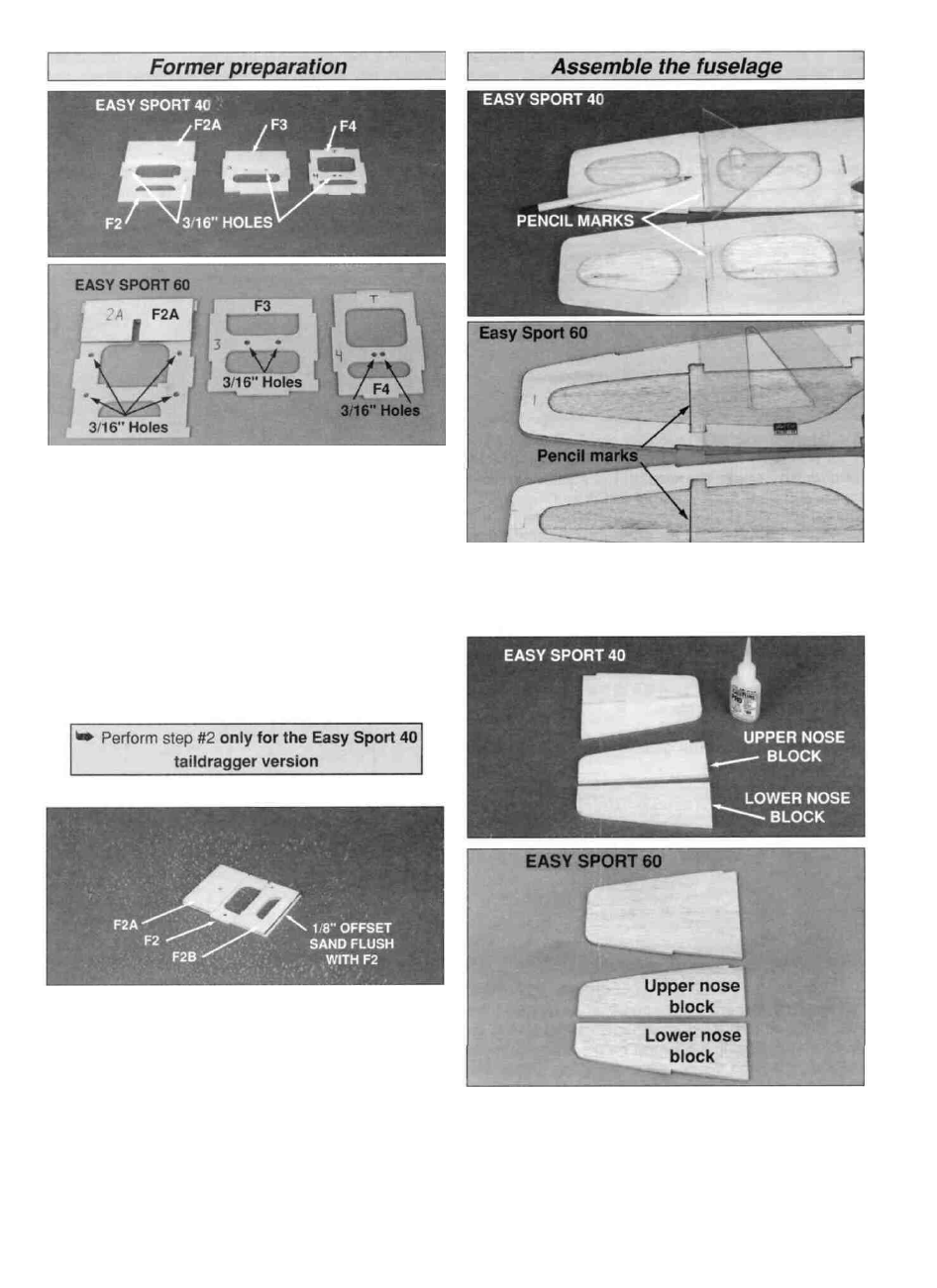

D 1. Glue the die cut 1 /8" ply F2A to the die-cut 1/8" ply
F2 as shown To insure proper pushrod routing later,
F2A must be glued to the side of F2 that has the
embossed "2 " Drill a 3/16" hole at each of the four
punch marks on F2, F3 and F4.
D 1. With a pencil and a straightedge, draw a line from
top to bottom of each fuse doubler at the forward edge
of the slot for F1 as shown.
Drill a 1/4" hole at the punch mark on F2A (drill all the
way through F2)
D 2. For a taildragger version, glue F2B to the front of
F2 Line up the large hole in each as shown. There will
be a 1/8" offset between the bottoms of F2 and F2B
when properly aligned Using coarse (80-gnt)
sandpaper, sand F2 flush with the bottom of F2A Drill a
3/16" hole at each of the two punch marks on F2B (drill
all the way through F2.)
D 2 Locate a die-cut 3/16" balsa upper nose block
and a die-cut 3/16" balsa lower nose block. True-up the
26
