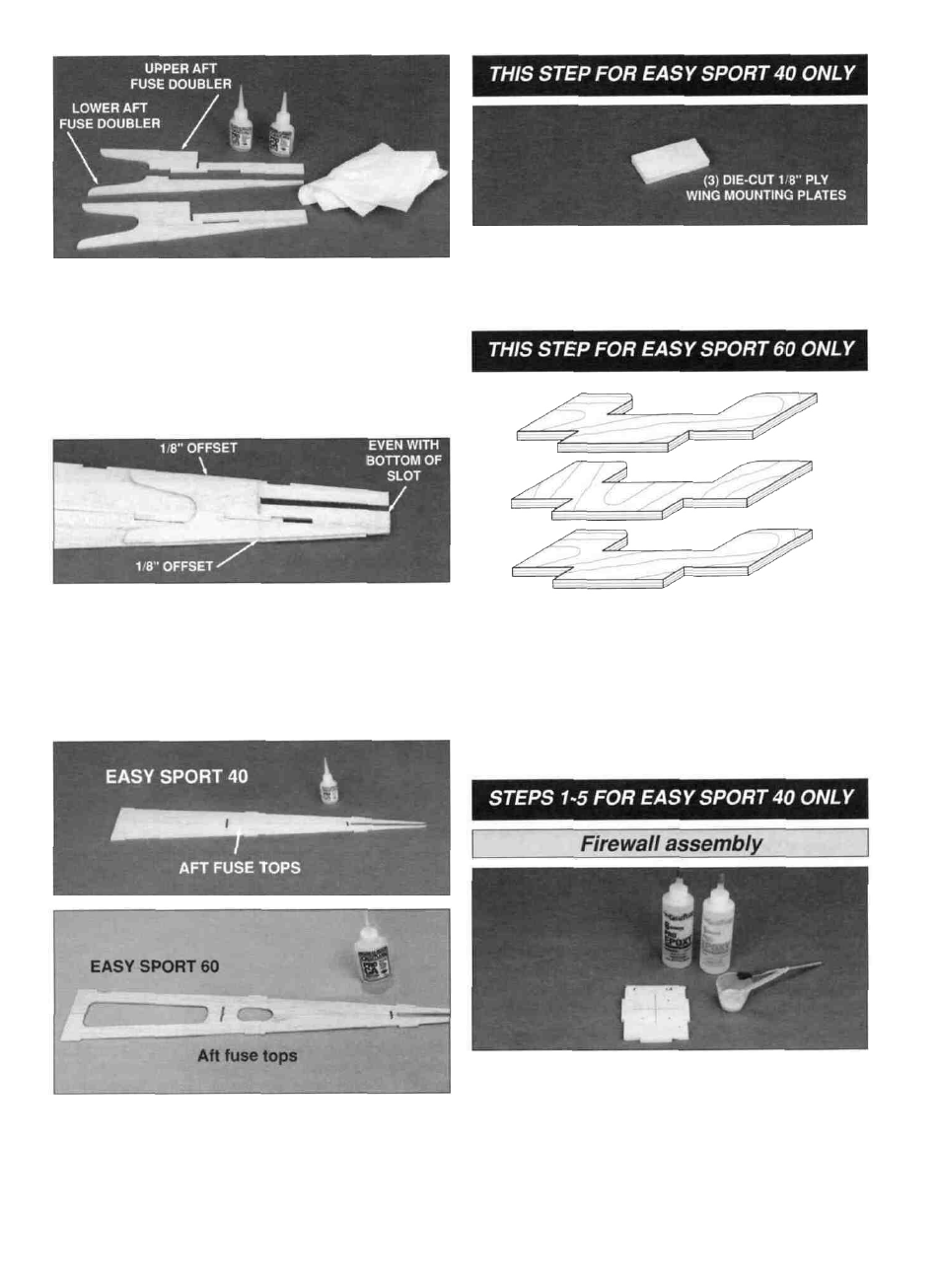

D D 6. In the same manner that you assembled the
fuse sides, locate and glue together the die-cut 1/8"
balsa upper aft fuse doubler and die-cut 1/8" balsa
lower aft fuse doubler. Make sure that you make two
aft doubler assemblies.
D 9. Using medium CA, glue the three die-cut 1/8" ply
wing bolt plates (BP) together, aligning the edges
carefully. After the glue hardens, sand the edges to
make them uniform.
D D 7. Glue the balsa aft doublers in place. The
doubler should line up with the lower edge of the stab slot
and be offset 1/8" from the top and bottom of the
fuse side.
D 8. Test fit and glue the two die-cut 1/8" balsa aft fuse
tops together as shown in the photo. Sand smooth.
D 9. Notice that two pieces of the wing bolt plate
assembly have grain running in one direction while the
third piece has the grain running opposite to the first two.
The odd one is "sandwiched" between the other two.
Use 30-minute epoxy to glue the three wing bolt plates
together. Clamp the assembly together while the epoxy
cures. After the epoxy cures, sand the edges to make
them uniform.
D 1. Locate the die-cut 1/8" ply Former F1A and the
die-cut 1/8" ply Former F1B. Using 6-minute epoxy,
securely glue F1B to F1A so they are aligned with each
other and the punch marks on F1A are visible.
