Page 12
D 4 Insert the hinges into the slots and trial fit the rudder
and elevators in place on the fin and stab Do not glue
the hinges until after you have covered the model.

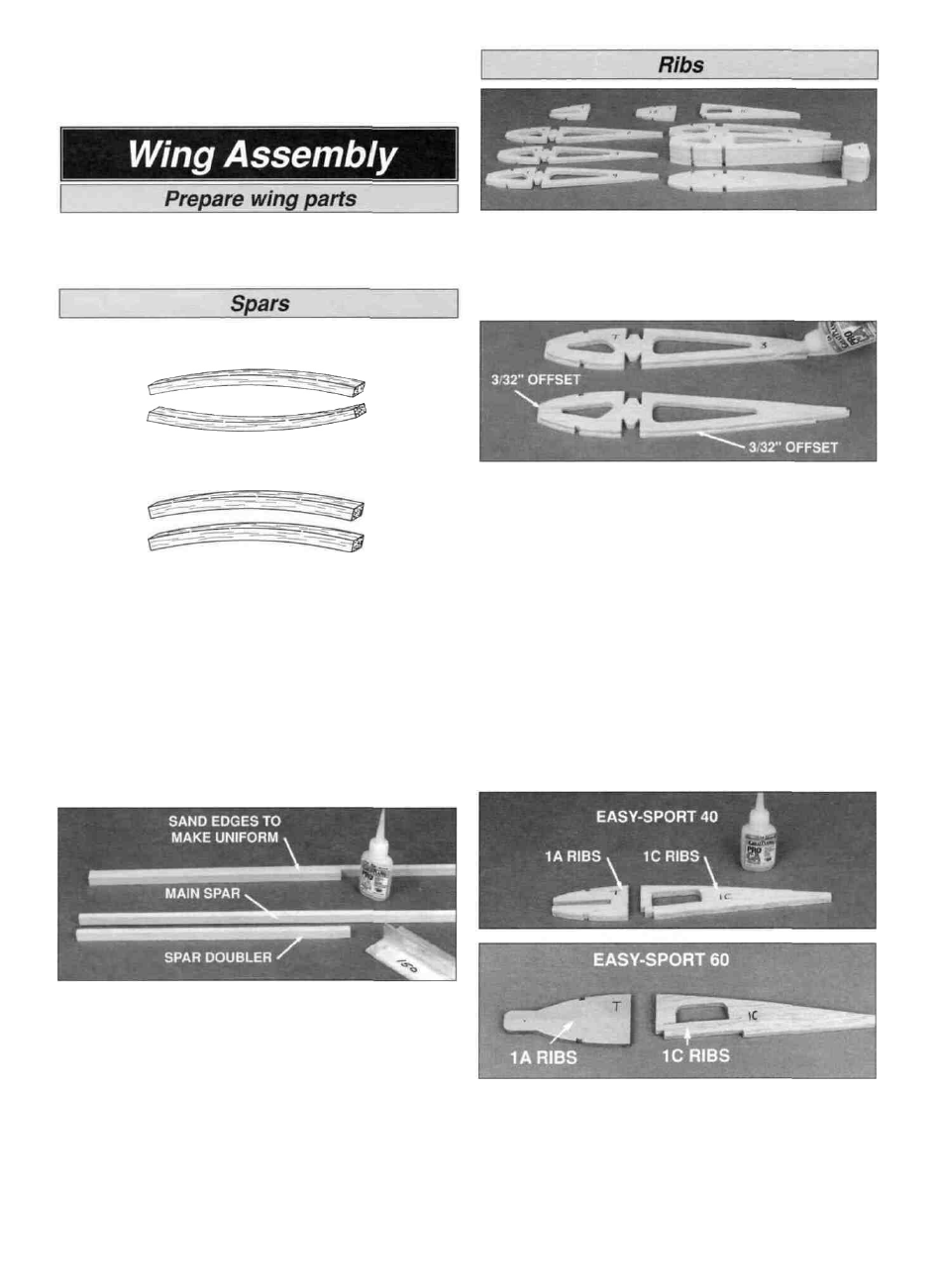

Before assembling the wing there are a few preliminary
assemblies that must be made.
TWO WARPED SPARS INSTALLED
THIS WAY WILL RESULT IN A
STRAIGHT WING
TWO WARPED SPARS INSTALLED
THIS WAY WILL RESULT IN A
WARPED WING
D 1 Before using the basswood spars examine them
carefully for possible imperfections Look for knots soft
spots, diagonal grain and any other imperfections If
possible, position each spar so the imperfections (if any)
are on the outer half of the wing panel (towards the tip)
where they will be less affected by high stress If the
spars are warped slightly, try to "balance them out" by
installing the warped spars in opposite directions (see
sketch) NOTICE: If you feel that any of the wing parts
are unusable due to severe warps or other defects, give
us a call and we'll replace the parts.
D 1 Carefully punch out all the die-cut balsa wing ribs
Sand the edges slightly to remove any die cutting
irregularities and arrange them into stacks of the same
kind of ribs.
D D 2 Locate the two #3 and #4 ribs Center one #3
rib on one #4 rib using the lightening holes as a
reference There will be a 3/32" offset between the
edges of rib #3 and #4 when properly aligned
NOTE: The embossed "T" on both ribs should face the
same direction While holding in the above position, glue
these two pieces together with thin CA NOTE: The ribs
are not symmetrical, so be sure to make a right and left
assembly
D 3 Locate the two 1A rib sections Take care to align
these ribs using the notches as references Glue the 1A
ribs together with thin CA for the Easy Sport 40 Glue
the 1A ribs together with 6-minute epoxy for the
Easy Sport 60
D 2 Glue a 1/4" x 3/8" x 9-78" (1/4" x 1/2" x 10" for the
Easy Sport 60) basswood spar doubler to a 1/4" x 3/8"
x 30" (1/4" x 1/2" x 32" for the Easy Sport 60) basswood
main spar with medium CA as shown Sand the edges
of the spars to remove any excess glue and to make the
edges uniform Make four spar assemblies Refer to the
cross-section for orientation
D 4 Locate and align the two 1C ribs as described
above and glue them together with thin CA
12
