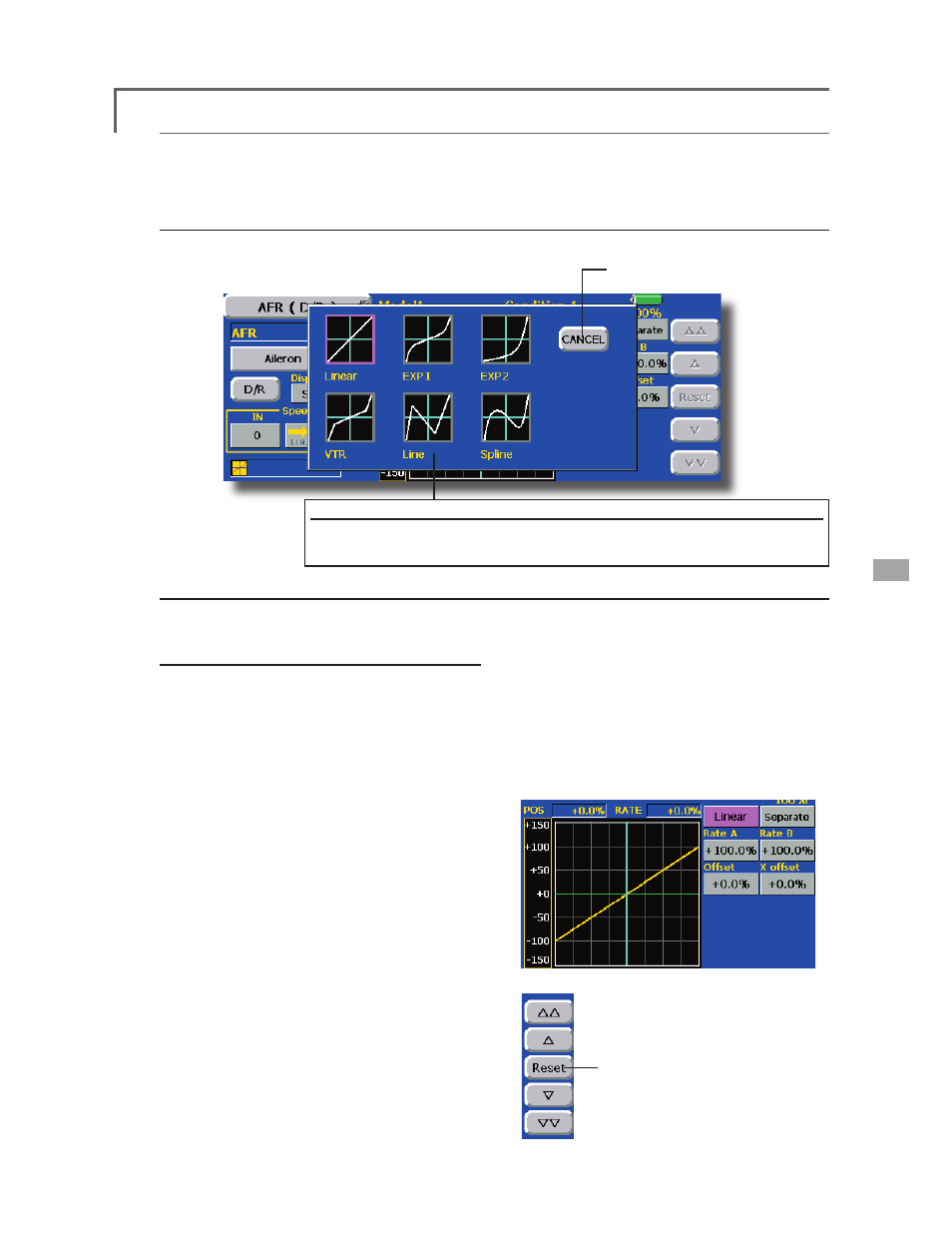

Curve setting operation

This section describes the setting procedure of curves which are used with the AFR function and each

mixing function.

Curve type selection

When the curve type select button on the mixing function screen or other screen is touched, the setup

screen shown below is called.

●Return to original setup screen

of original function

Curve type selection

1. Touch the button of the curve type you want to use.
*The curve type changes and the display returns to the original screen.

Linear curve adjustment

Rate A and Rate B can be adjusted separately or

simultaneously.

[Setting modes]
*[Separate] mode: Rates are adjusted

separately.

*[Combined] mode: Rates are adjusted

simultaneously.

[Setting method]
1. Select the setting mode.
2. Touch the Rate A or Rate B button.
3. Use the adjustment buttons to set the rate.
*Initial value: +100.0%
*Adjustment range: -200.0~+200.0%

The curve can also be offset horizontally in the

vertical direction and the rate reference point can
be offset to the left or right.

[Offsetting the curve horizontally in the vertical

direction]

1. Touch the Offset button.
2. Use the adjustment buttons to move the

curve horizontally up and down.

*Initial value: +0.0%

Setting by curve type

When the curve type is selected as described above, adjustment buttons corresponding to the curve type

appear on the original screen. Adjust each curve as described below.

[Offsetting the rate reference

point to the left or right]

1. Touch the X Offset button.
2. Use the adjustment buttons to

move the reference point to the

left or right.

*Initial value: +0.0%

(Linear curve)

(Rate adjustment buttons)

●Return to initial value
