Futaba 14MZ - Manual (Page 100)

ELEVATOR
(RUDDER 2)
RUDDER
(ELEVATOR 2)
V-TAIL
●Return to Model Menu
V-tail [Corresponding model type]: Airplane/glider, V-tail
This function let’s you adjust for left and right
rudder angle changes at elevator and rudder
operation of a V-tail airplane.
V-tail is when 2 servos are used together to
control rudder movement as Elevators. In addition
to each rudder side moving up and down together,
each side moves in opposite directions when
moving as Elevators. On a V-tail, this is also known
as a Ruddervator, as they can serve the same
purpose.

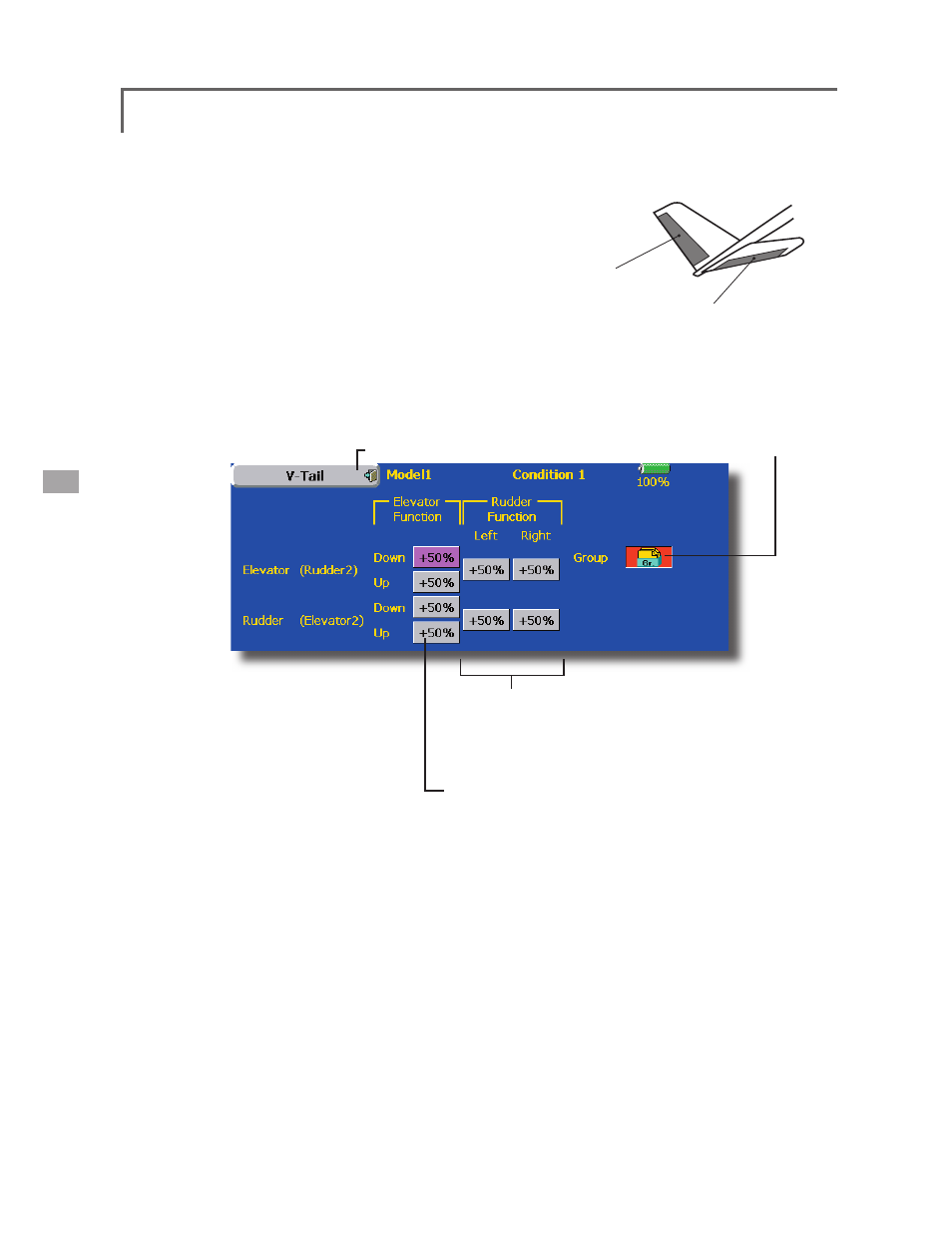

● Touch the [V-tail] button in the Model Menu
to call the setup screen shown below.
(Rudder function)
Left and right travel adjustment at CH1 and CH2
rudder operation
● Group/single mode switching
(Gr./Sngl)
(For more information, see the description
at the back of this manual.)
(Elevator function)
Up and down travel adjustment at CH1 and CH2
elevator operation
100
