Swash mixing

The swash mix function is used to correct the

swash plate in the aileron (roll) direction and
elevator (cyclic pitch) corresponding to each
operation of each condition.

Adjustment by independent curve for aileron,

elevator, and pitch operations is possible. The
operation can be smoothly adjusted by calling up
the “Curve setup” screen by touching the button
that corresponds to the mixing and direction which
needs correction.

Example of use

● As an example, use swash mixing to correct

undesirable tendencies in the roll direction

● For a condition which uses AIL to ELE, set this

function to ON. When raising the nose at a

right roll, when the Rate B side is input and

the right aileron is operated, the elevator

moves to the down side. Tune by adjusting

the Rate. For right roll, adjust to the Rate A

side.

● Return to Model Menu

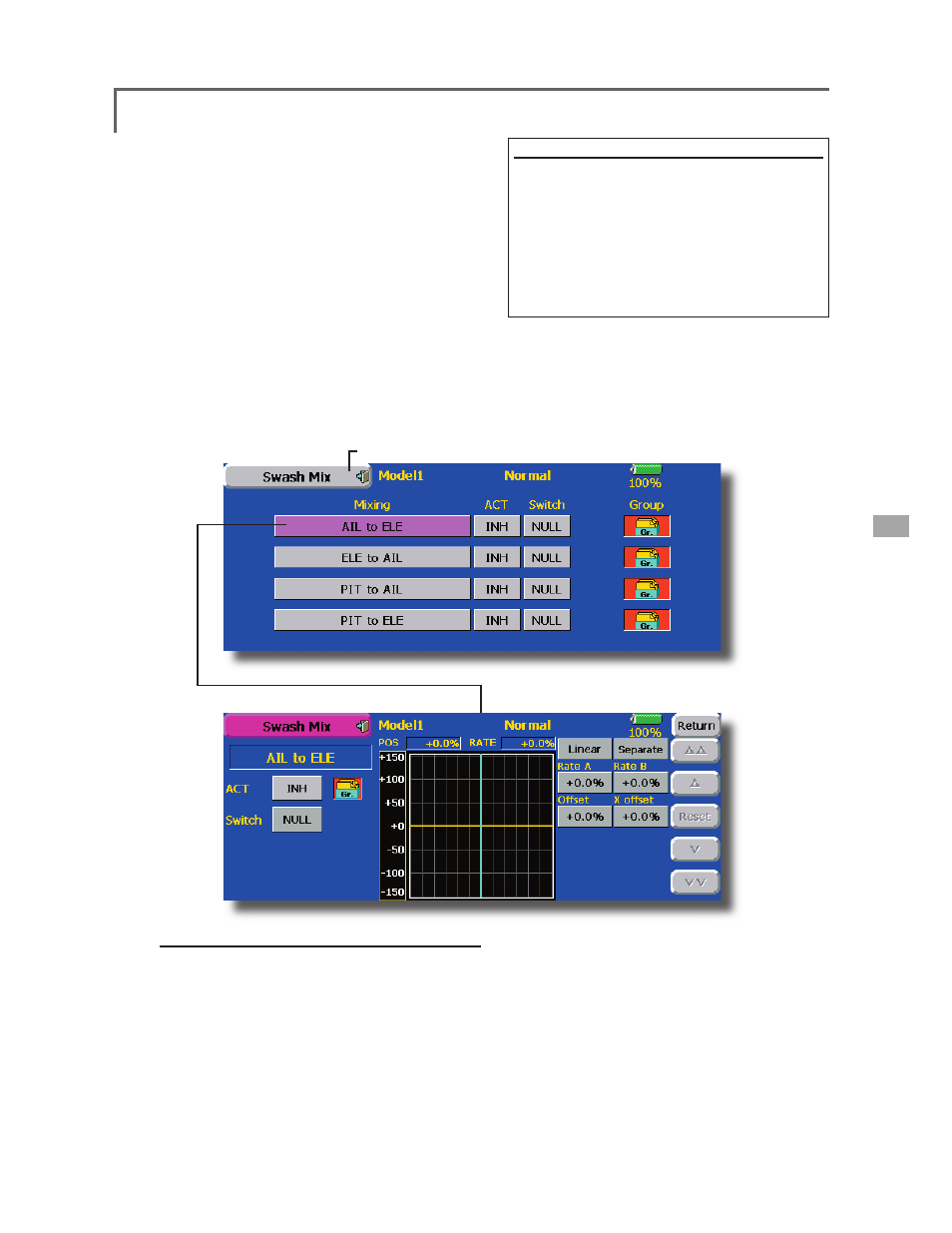

● Touch the [Swash Mix] button in the Model

Menu to call the setup screen shown below.

Setting method

● When using this function, touch the [INH] button

and display [ON] or [OFF].

● When you want to set the same contents at other

conditions, select the group mode (Gr.). When
you want to set the selected condition only, select
the single mode (Sngl).

● The correction rate can be set by curve.
● A switch can be set.
When [ NULL] is set, the swash mixing function is

operated by merely selecting the condition.

When setting an [ON]/[OFF] switch, touch the

[NULL] button and set the switch and its ON
position at the screen.
