PIT to Needle mixing

This mixing is used when the engine is equipped

with needle control or other fuel-air mixture
adjustment. A needle curve can be set.

An acceleration function which temporarily

increases needle operation at throttle stick
acceleration/deceleration operation can be set.
The rise characteristic of the needle servo at
acceleration and deceleration operation can be
adjusted.

● Return to Model Menu

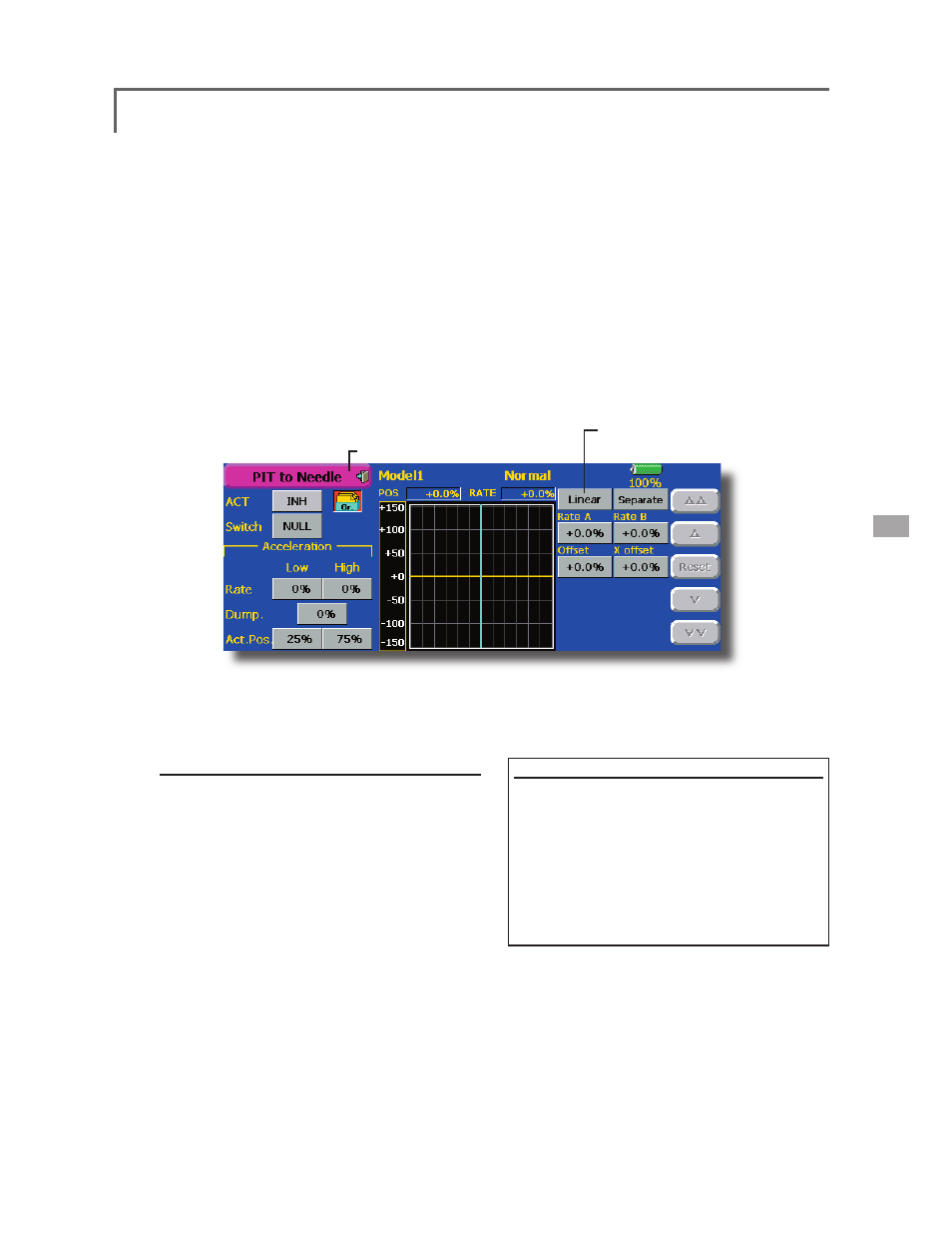

● Touch the [PIT to Needle] button in the Model

Menu to call the setup screen shown below.

Setting method

●When using this function, touch the [INH] button

and display [ON] or [OFF].

●When you want to set the same contents at other

conditions, select the group mode (Gr.). When
you want to set the selected condition only, select
the single mode (Sngl).

●A needle curve can be set.
●A switch can be set.
When [NULL] is set, the function is operated by

merely selecting the condition.

When setting and [ON]/[OFF] switch, touch the

[NULL] button and set the switch and its ON
direction at the screen.

< Acceleration function setting>

●Acceleration can be set at both setting

at acceleration (High) and setting at

deceleration (Low).

●The acceleration rate (Rate) and the return

time after operation (Dump.) can be set.

●An operation point (Operation Point) at

acceleration and deceleration can be set.

When an operation point was exceeded,

acceleration operation is performed.

● Normally, use [Line] type.
