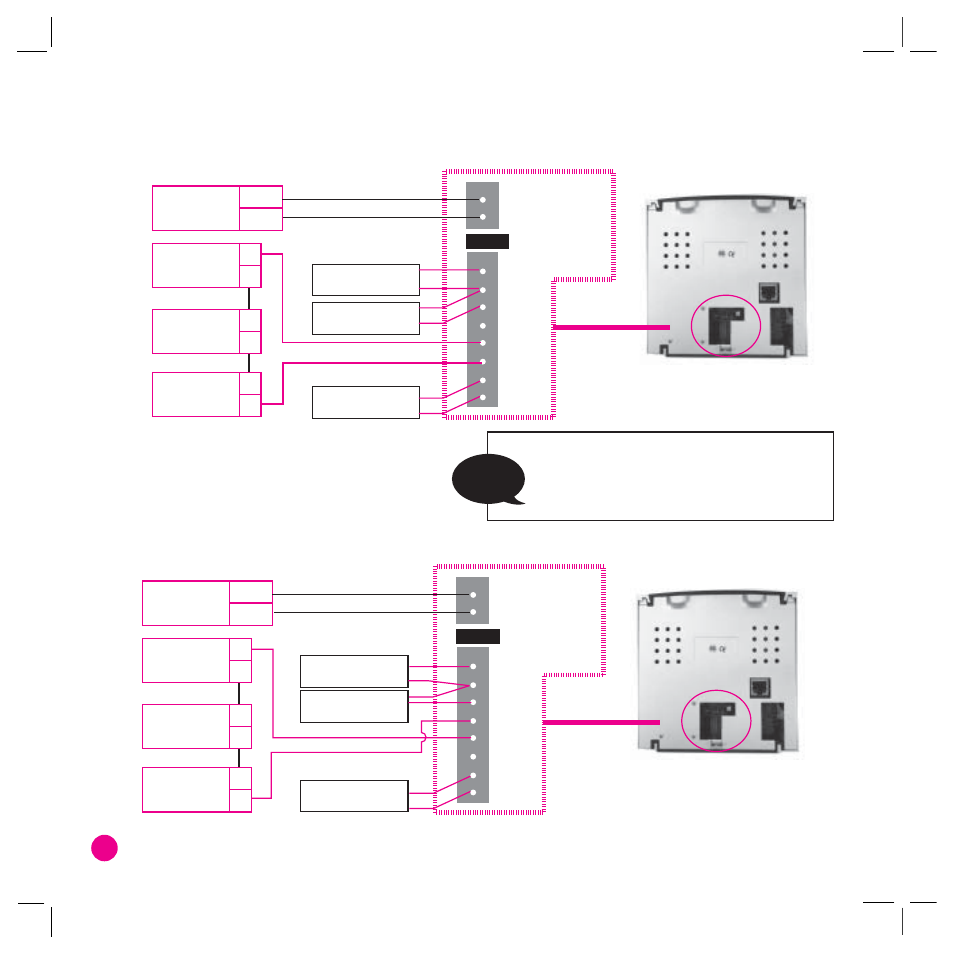

Back of Reader
GND
PWR
SEN
GND
BUT
NO
COM
NC
AL+
AL-
EM lock
(NO)
-
+
DC 12V
Power supply
GND
+12V
Key switch
(NO)
D
B
Emergency
break glass
(NO)
3
1 Door sensor
Release button
Door bell
Please refer to AdapTec AC Installer Manual
if you are using AdapTec AC with FingerTec®
AC800 model.
Note
Back of Reader
GND
PWR
SEN
GND
BUT
NO
COM
NC
AL+
AL-
EM lock
(NC)
-
+
DC 12V
Power supply
GND
+12V
Key switch
(NC)
C
A
Emergency
break glass
(NC)
3
2
Door sensor
Release button
Door bell
* For AC800 Plus and AC800 Plus MC only
NC (normally closed) door lock system:
For NO (normally open) door locksystem:
