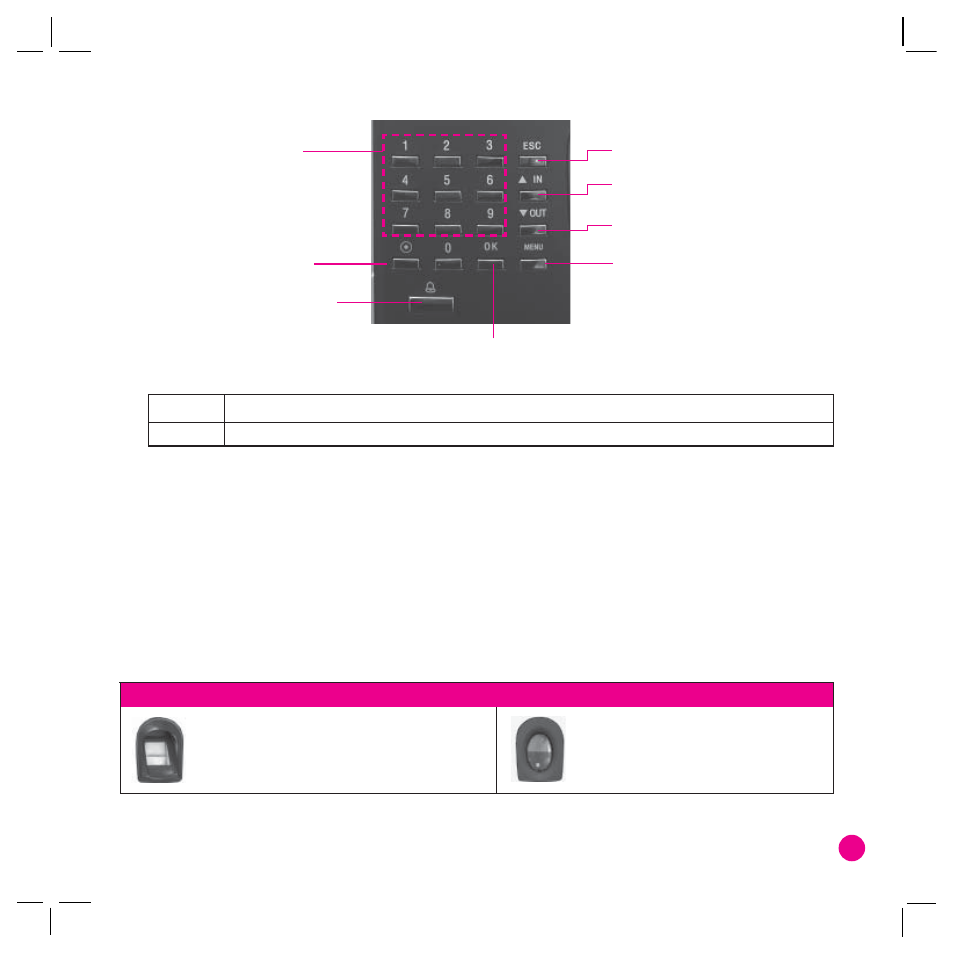

Number pad (0-9) • • Escape/Cancel
• Scroll Up/Check-In
• Scroll Down/Check-Out
Power On/Off • • Menu Function
Doorbell •
• OK
1 L.E.D Display: The L.E.D display has two lights.
Green The reader is in standby mode or to indicate that user has been successfully verified.
Red To indicate that user verification has failed.
2 LCD Screen: Screen that displays instructions and status of the reader.
3 Speaker: Indicating success or failure of fingerprint identification by voice greetings.
4 Keypads: Keys from 0-9, a Power on and off button, an OK button, an Escape/Cancel but-
ton, a Scroll up/ Check-In button, a Scroll Down/Check-Out button, a Doorbell button and a
Menu button. Please refer to Figure 1.2 for details.
5 Fingerprint Sensor: For user to place fingerprint for identification/verification. AC800 is
using optical sensor and AC800 and AC800 Plus & AC800 Plus MC are using URU 4000
sensor.
Types of scanner
TYPES OF SCANNER
Optical scanner U.r.U 4000 scanner
Standard scanner to capture fingerprint Enhanced scanner with 512dpi to
image capture better fingerprint image
