FingerTec AC800 Plus MC - Manual (Page 35)

36
TCP/IP port
TXD
RS232 cable
RXD
GND
CTS
26 bits
RTS
weigand WD0
output WD1
GND
RS485 cable
485A
485B
DC 12V 3A GND
Power Supply PWR
Door Sensor SEN
(NO or NC) GND
Push Release BUT
button NO
EM lock/
COM
Drop Bolt NC
Warner/ AL+
Alarm device
AL-
Alternatively, user could opt to use AdapTec AC, a controller
come power supply to connect a reader to a computer and/
or to door accessories. Go to http://user.fingertec.com to
find out more about AdapTec.
Note
Power cable Communication I/O controller AC800 Reader
FOR AC800 PLUS AND AC800 PLIS MC SERIES

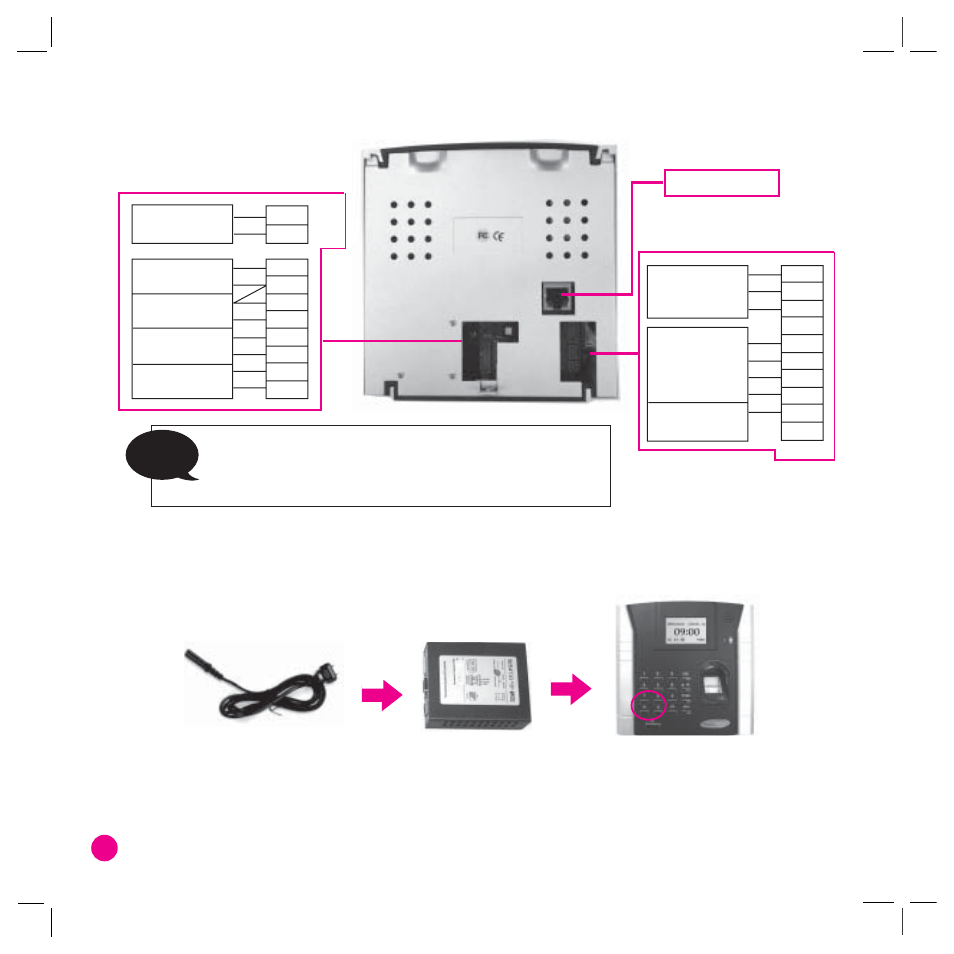

Diagram showing available connections on AC800 Plus and AC800 Plus MC Series. The AC800
Plus and AC800 Plus MC have the same available connections.
STARTUP AND SHUTDOWN
FOR AC800 SERIES
1. Connect the communication I/O controller to the FingerTec® AC800 model.
2. Turn on the power supply.
3. Press the power button to switch on or shutdown the reader.
