Wiegand 26-bit output – FingerTec AC800 Plus MC User Manual

Page 41

Text mode
Original mode

WD0

WD1

GND

3rd party

controller with

26-bits Wiegand

Input

GND

Back of Reader

TXD

RXD

GND

CTS

RTS

WD0

WD1

GND

485A

485B

Back of Reader

Connector on

RS232/RS485

RS232 cable

AC800 Plus and

Data Converter

AC800 Plus MC

RX+

RX-

RS486A
RS485B

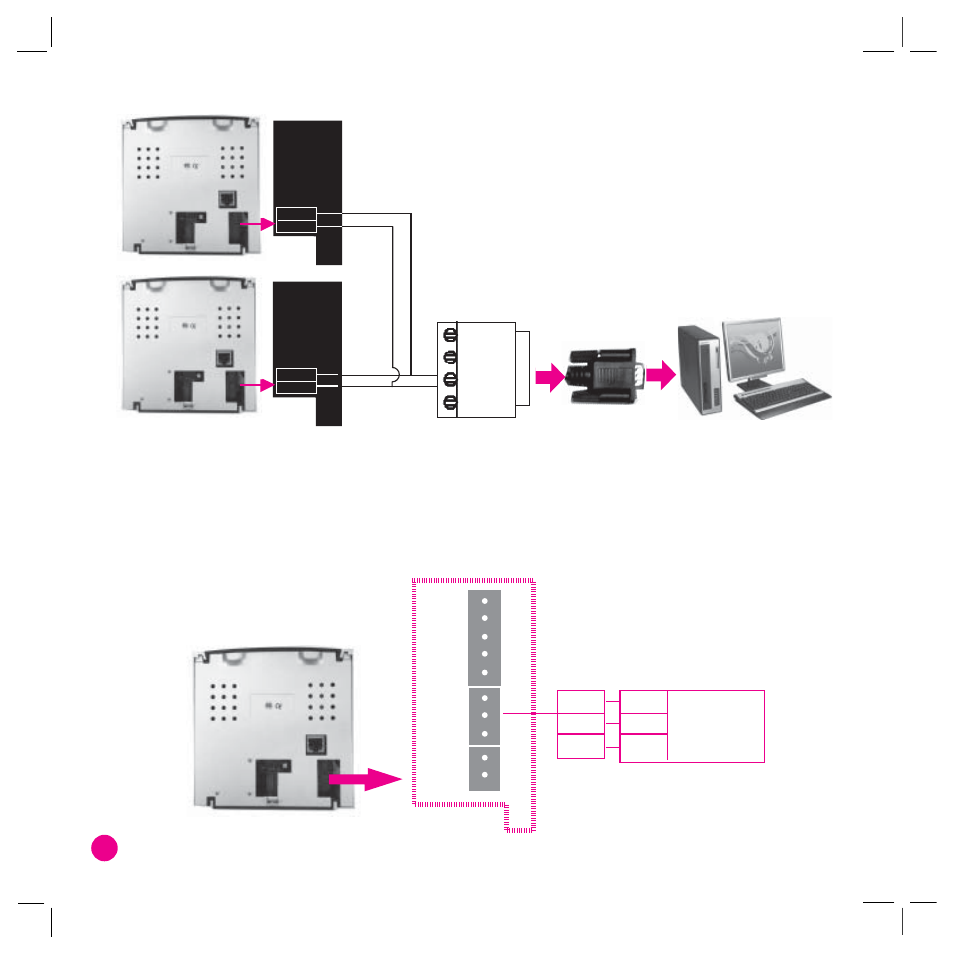

Wiegand 26-bit Output

(For AC800 Plus & AC800 Plus MC only)

FingerTec® AC800 models are preset with output format, which enables integration with 3rd
party controller for a complete access control system of preference.

3rd party controller with
Wiegand 26-bit Input:
