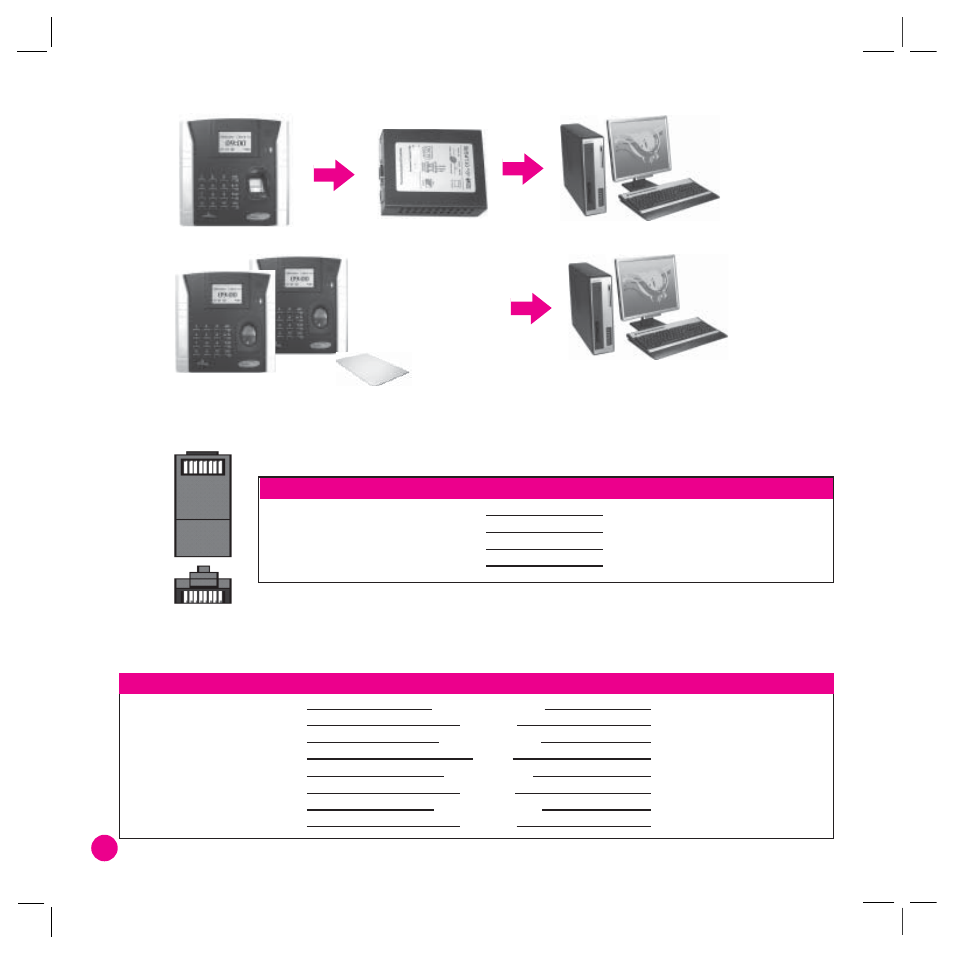

AC800 Reader Communication I/O controller PC
1 8
TOP
FRONT
1 8
AC800 Plus or
AC800 Plus MC Reader
PC
Ethernet 10/100Base-T Crossover Cable
This cable can be used to cascade hubs, or for connecting two Ethernet stations
back-to-back without a hub. It works with both 10Base-T and 100Base-TX.
Joint 1 Pin Joint 2 Pin
TX+ 1 • • 3 RX+
TX- 2 • • 6 RX-
RX+ 3 • • 1 TX+
RX- 6 • • 2 TX-
Ethernet 10/100Base-T Straight Thru Cable
This cable will work with both 10Base-T and 100Base-TX and is used to connect a network inter-
face card to a hub or network outlet. These cables are sometimes called “whips”.
Connector Pin Cable Color Connector
TX+ 1 • White/Orange • 1 TX+
TX- 2 • Orange • 2 TX-
RX+ 3 • White/Green • 3 RX+
4 • Blue • 4
5 • White/Blue • 5
RX- 6 • Green • 6 RX-
7 • White/Brown • 7
8 • Brown • 8
