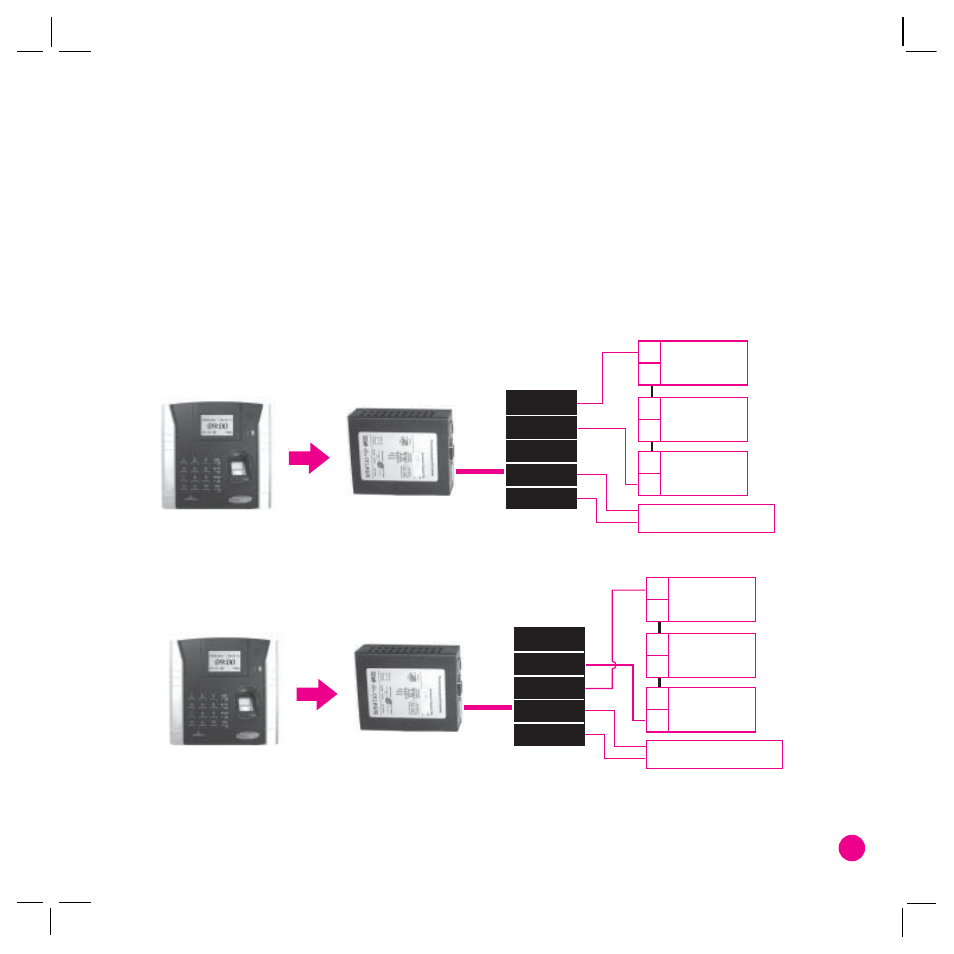

DOOR LOCK CONNECTION
All door lock accessories are linked to the connector pins at the back of FingerTec® AC800
model. Please read carefully before you started to connect door accessories to the FingerTec®
AC800 model.
FingerTec® model output an EM output (DC12V) to control door lock system. Attention: AC800
model do not act as dry contacts for independent door lock system; it needs power supply to
control them.
* For AC800 only
NC (normally closed) door lock system:
For NO (normally open) door locksystem:
