DC 12V power supply Power cable AC800 Plus or AC800 Plus MC Reader
Comm Opt u
4Ethernet Yes
RS232
No
RS485 No
IP Addr
192. 168. 1.201
ESC OK
Note
When RS232/RS485/Ethernet is
enabled, only the Ethernet function
will be enabled while the RS232/
RS485 will be disabled.

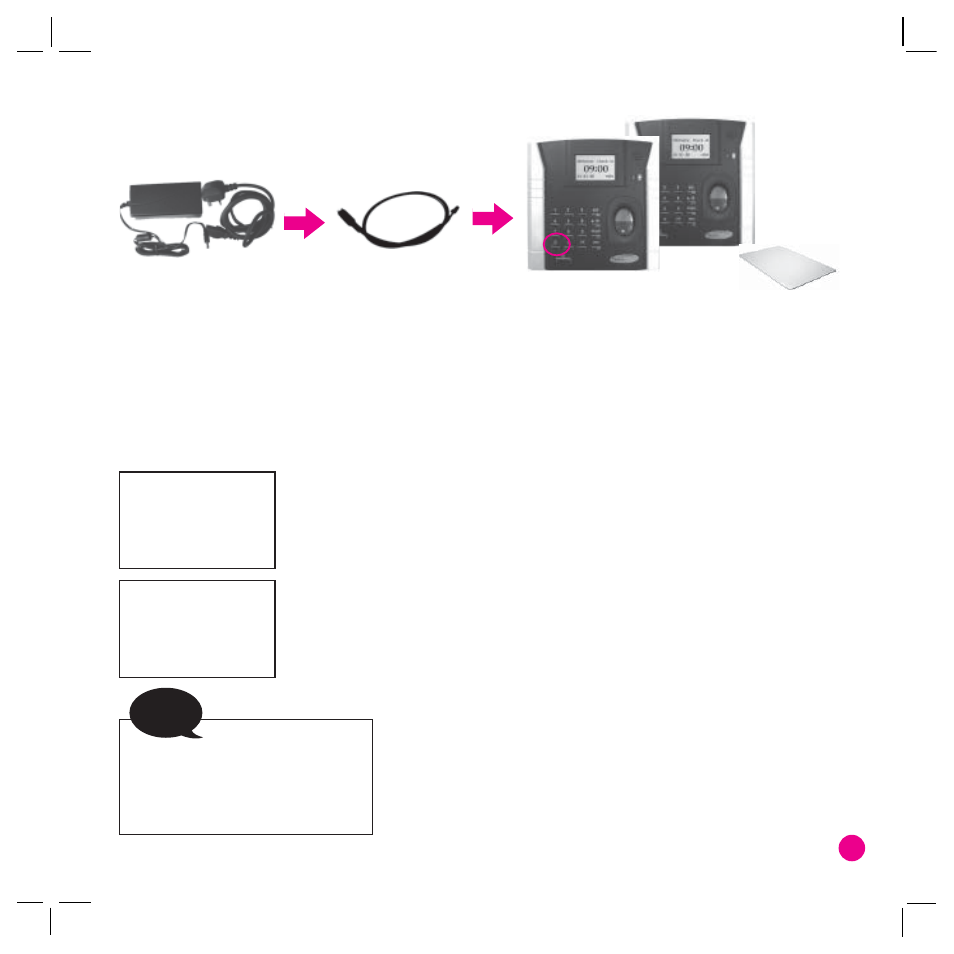

FOR AC800 PLUS AND AC800 PLUS MC SERIES
1. Connect DC 12V power adapter to power source.
2. Connect power supply cable to the DC 12V power adapter.
3. Connect power supply cable to AC800 Plus or AC800 Plus MC.
4. Press the power button to switch on or shutdown the reader.
COMMUNICATION CONNECTION
FingerTec® AC800 model be connected to computer by four ways:
TCP/IP Connection
1. Setup the IP address by network configuration
The machine default IP address is 192.168.1.201; this is a legal and
available IP address in many LAN environment. If the host IP address
is 192.168.1.X and it is in the same network region, then this IP can
be used directly. If not, please make sure that you have changed the
IP address accordingly.
2. Setup of Ethernet.
Access Menu select “Options” > “Comm. Opt” > “Ethernet”, select
“Yes” to enable Ethernet function.
3. Turn the power off.
4. Plug the network plug to the Ethernet interface.
5. Turn the power on.
