System connections
Do not plug the power cord into the power outlet until
all of the required connections have been made.
m When arranging the system units in a vertical, stacked configu­ 1

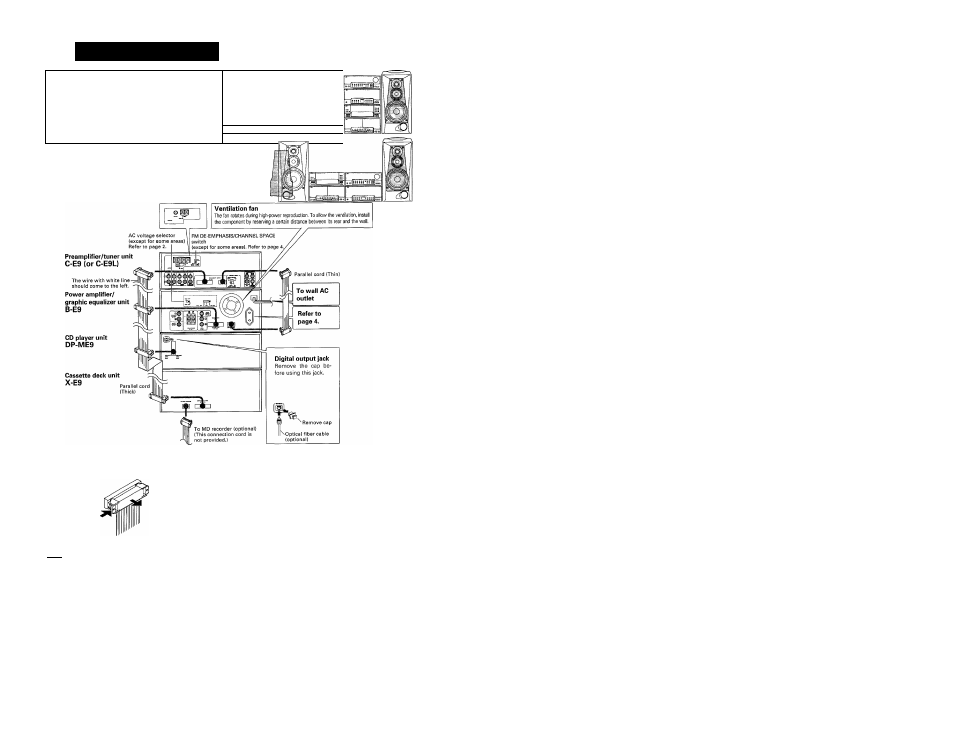

ration, observe the stacking order indicated in the system con­
nection diagram below.
• In case an associated system component is connected, also
read the instruction manual of the component.
• Align the front panels of the unit flush.
When arranging the system in a horizontal configuration, be sure to
place the preampiifier/tuner unit + power ampiifier/graphic equalizer
unit on the right side of the CD player unit + cassette deck unit.
(For U.K. and Europe)
Connection oiparallffXmi^
• When connecting the parallel cord, insert the plug straight into
the connector until it clicks to lock them securely.
> When connecting the parallel cord, the wire with white line should
come to the left side end.
I When disconnecting the parallel cord, push in the two sides of
the plug and pull it straight out.
X
Uiiiiiiiiii'P
I Notes I 1. Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not produced or noise may
interfere.
2. Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If connection cords are
plugged or unplugged with the power cord left plugged in, malfunction or damage may result.
3. Do not connect up a power source whitch is larger than that indicated on the socket at rear of the unit.
