Chapter 5: Local Management
5-4 2E43-51/2E43-51R User’s Guide
5.3.1 Console Cable Connection
Use the Console Cable Kit provided with the 2E43-51 to attach the
management terminal to the 2E43-51 COM port as shown in
Figure 5-1 .
Connect an IBM PC or compatible device, running the VT terminal
emulation, to the 2E43-51 as follows:
1. Connect the RJ45 connector at one end of the cable (supplied in the
kit) to the COM port on the 2E43-51.
2. Plug the RJ45 connector at the other end of the cable into the
RJ45-to-DB9 adapter (supplied in the kit).
3. Connect the RJ45-to-DB9 adapter to the communications port on
the PC.

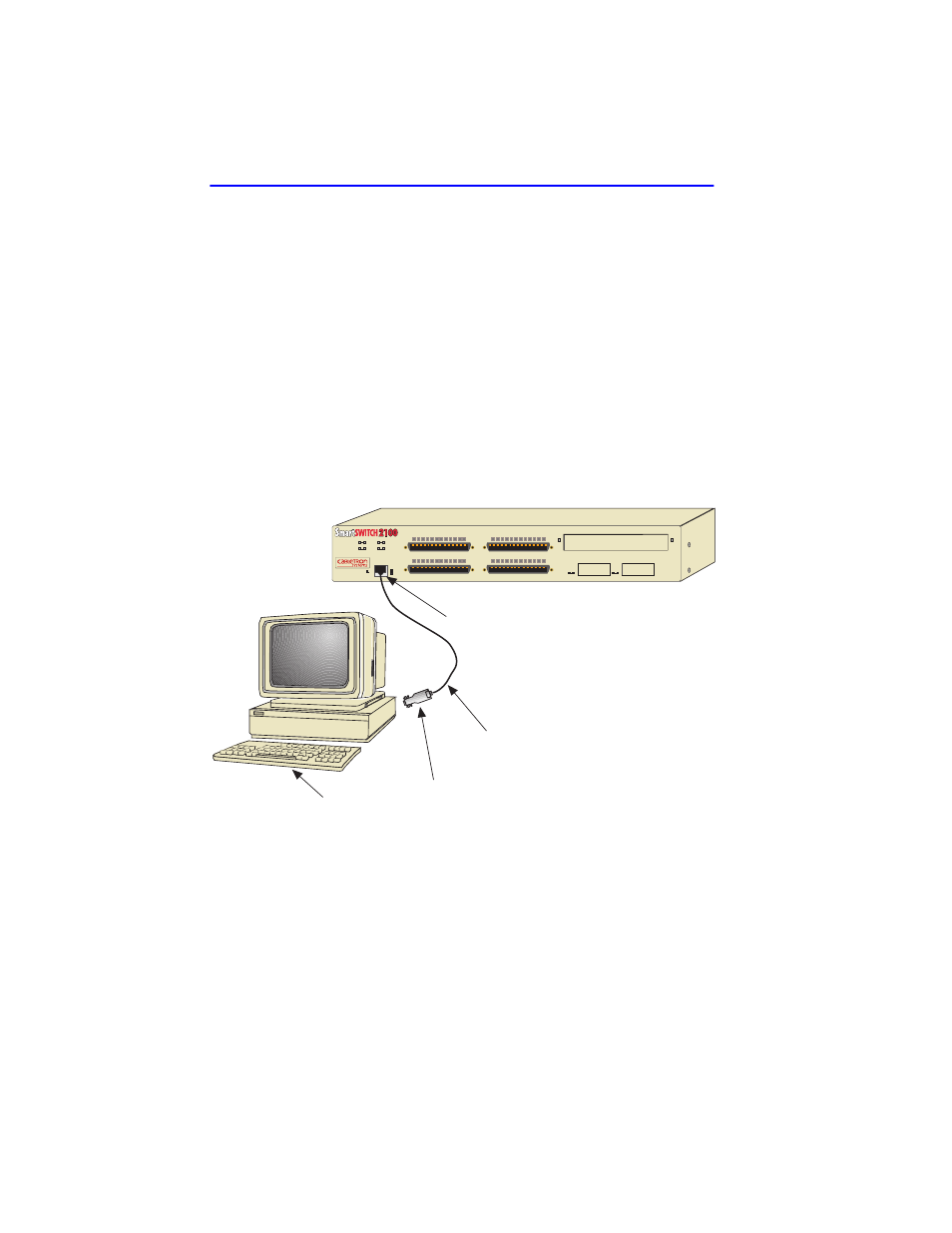

Figure 5-1 Management Terminal Connection
RJ45 COM Port
RJ45-to-DB9
PC Adapter
UTP Cable
with RJ45 Connectors
PC 2251-50
6 5
LINK 1
LINK 1 LINK 1
LINK 1 12
12
12
12
ENET 1
ENET 3 ENET 4
ENET 2
E3
E1
E4
E2
2E43-51
COM
PWR
CPU
RESET
