Installing the 2E43-51
2E43-51/2E43-51R User’s Guide 3-5
Installation
Rack mounting the 2E43-51 involves the following:
• Attaching the strain-relief bracket
• Rack mounting the 2E43-51 (attaching the mounting brackets and
fastening the 2E43-51 to the rack)
Attaching the Strain-Relief Bracket
Attach the strain-relief bracket to the front of the 2E43-51 as follows:
1. Locate the strain-relief bracket and four 8-32 x 5/16-inch pan-head
screws in the rackmount kit.
2. Attach the strain-relief bracket to the bottom of the 2E43-51 using the
four 8-32 x 5/16-inch pan-head screws (
Figure 3-2 ).

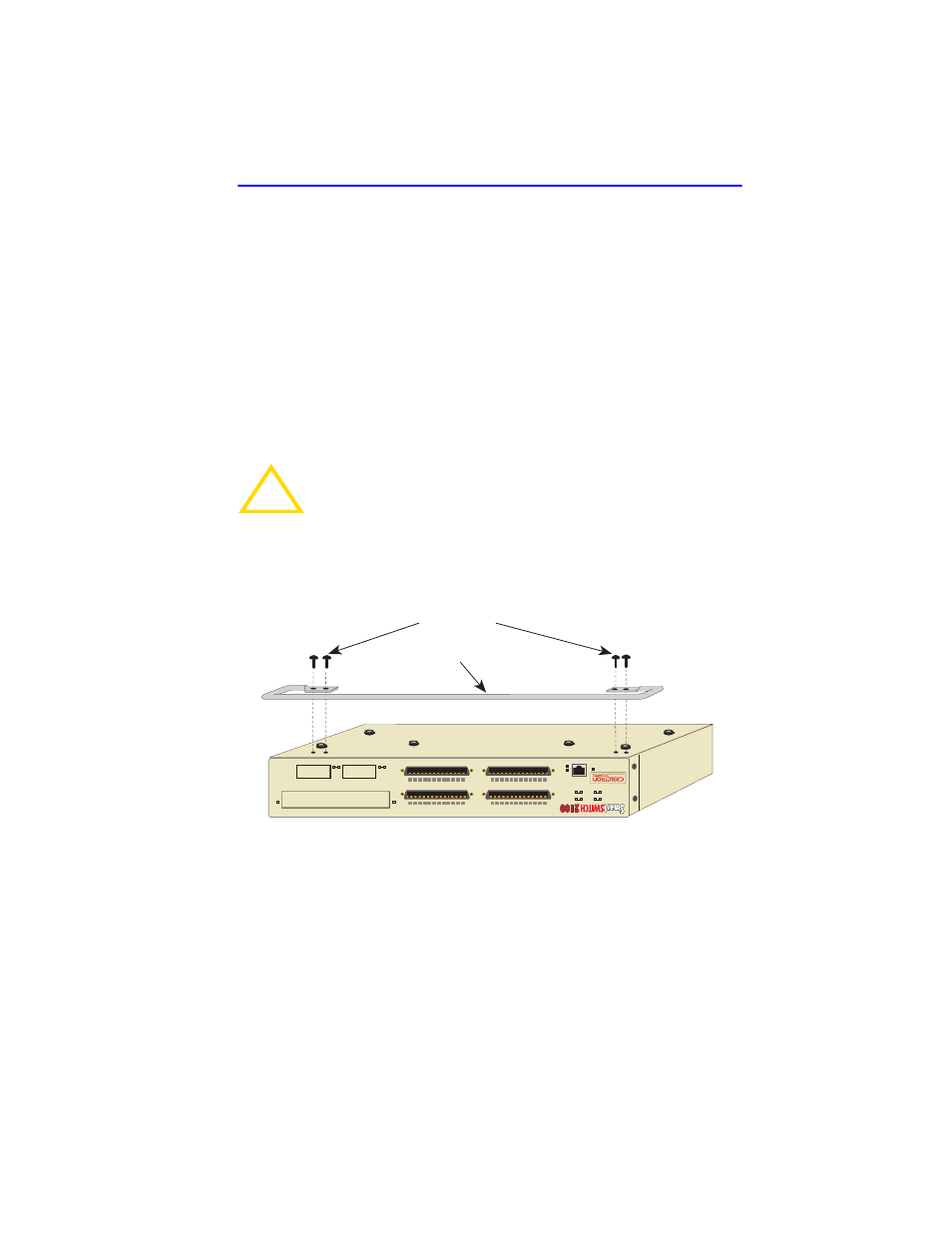

Figure 3-2 Attaching the Strain-Relief Bracket
!
CAUTION
Do not attempt to attach the strain-relief bracket with screws
other than the 8-32 x 5/16-inch screws included with the
2E43-51. Use of longer screws may damage the unit.
Strain-Relief Bracket
Screws (4)
2251-47
6 5
LINK 1
LINK 1 LINK 1
LINK 1 12
12
12
12
ENET 1
ENET 3 ENET 4
ENET 2
E3
E1
E4
E2
2E43-51 COM
PWR
CPU RESET
